Antenna Coaxial Cable Replacement - Headlining

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

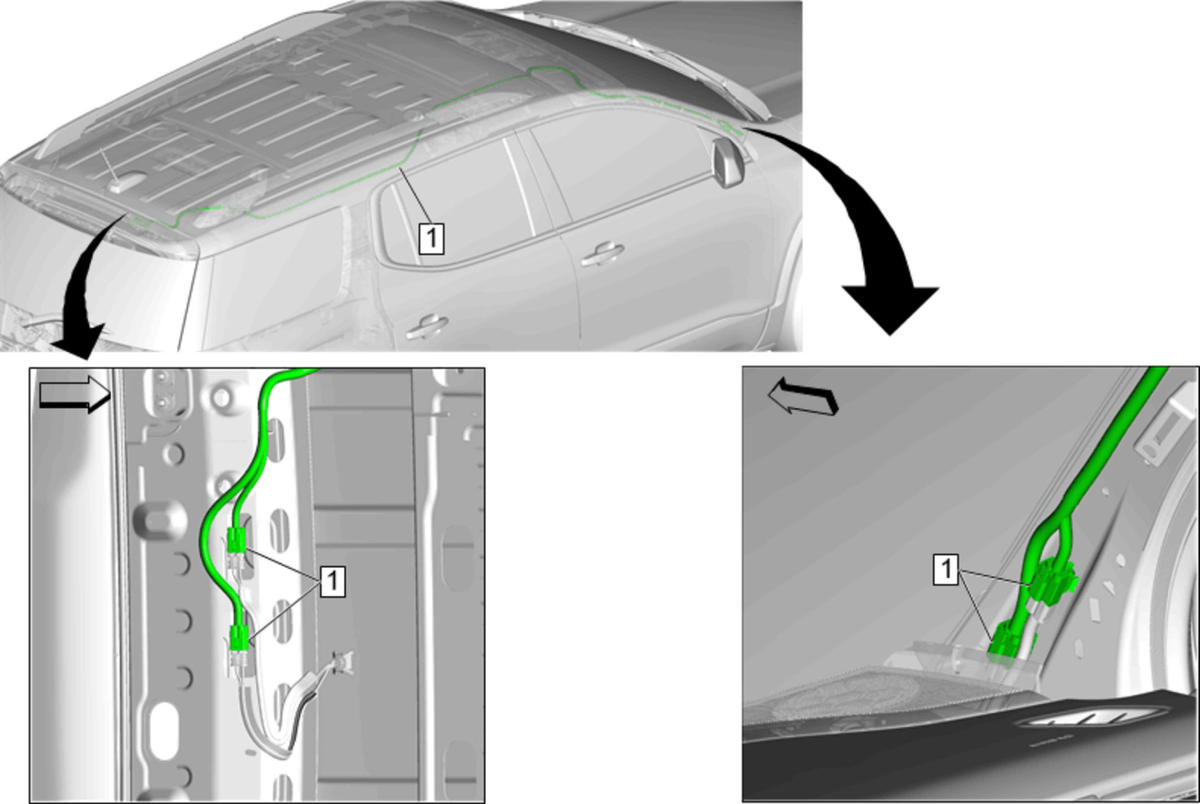

Fig 1: Antenna Coaxial Cable - Headlining

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Refer to Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U)
1	Antenna Coaxial Cable - Headlining Procedure Disconnect the electrical connectors. If the antenna cable is taped into the wiring harness, cut the ends off the old antenna and route the new antenna as close to the old one as possible using tie straps to secure the new cable. NOTE: Prior to removal, note the routing of the antenna coaxial cable to aid in reassembly and ensure proper installation.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Refer to Headlining Trim Panel Replacement (With C3U)Headlining Trim Panel Replacement (Without C3U)

Antenna Coaxial Cable - Headlining

Procedure

Disconnect the electrical connectors.
If the antenna cable is taped into the wiring harness, cut the ends off the old antenna and route the new antenna as close to the old one as possible using tie straps to secure the new cable.

NOTE:

Prior to removal, note the routing of the antenna coaxial cable to aid in reassembly and ensure proper installation.
