Active Noise Cancellation

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

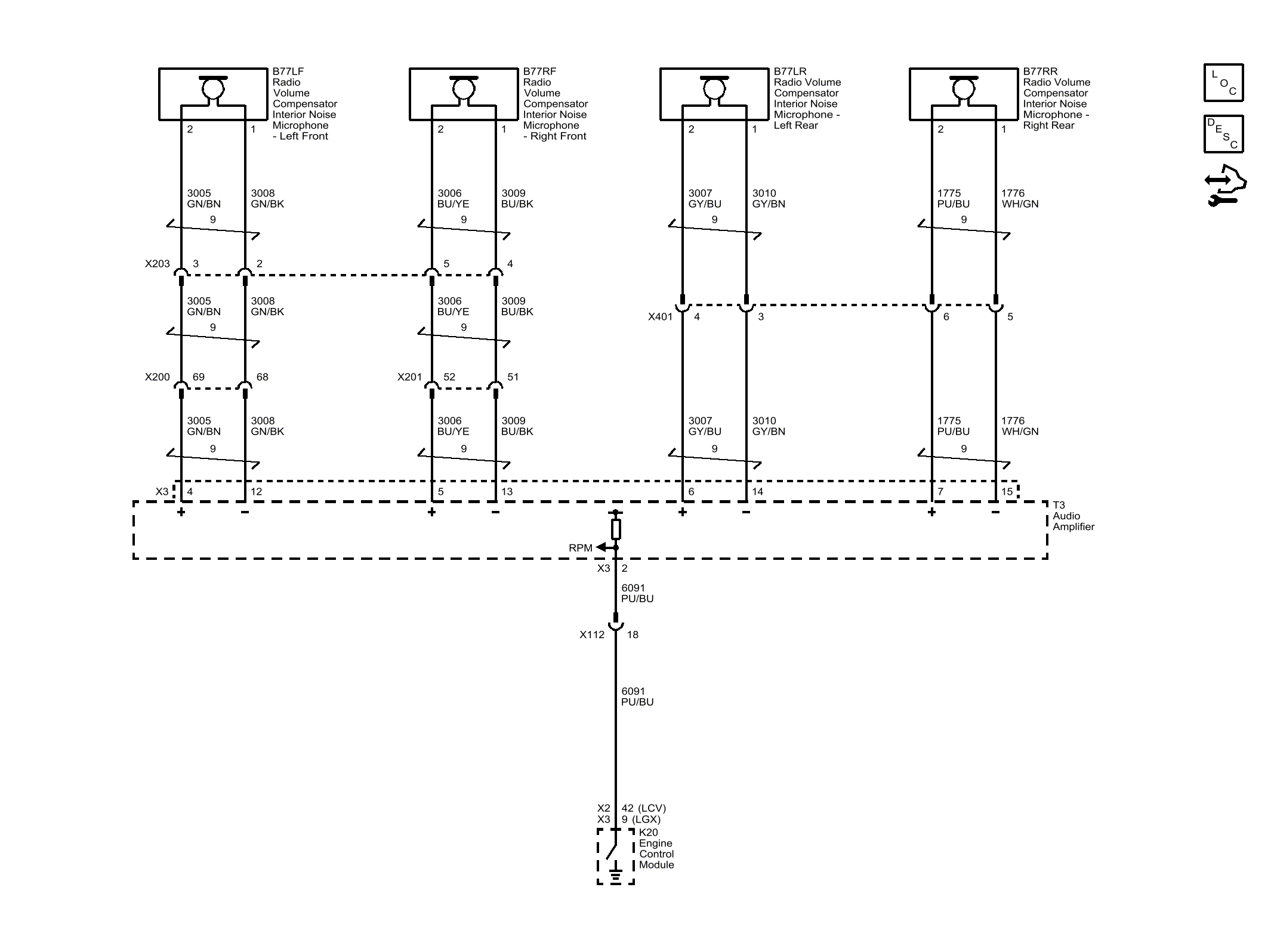

Fig 1: Active Noise Cancellation
GM4373028Courtesy of GENERAL MOTORS COMPANY

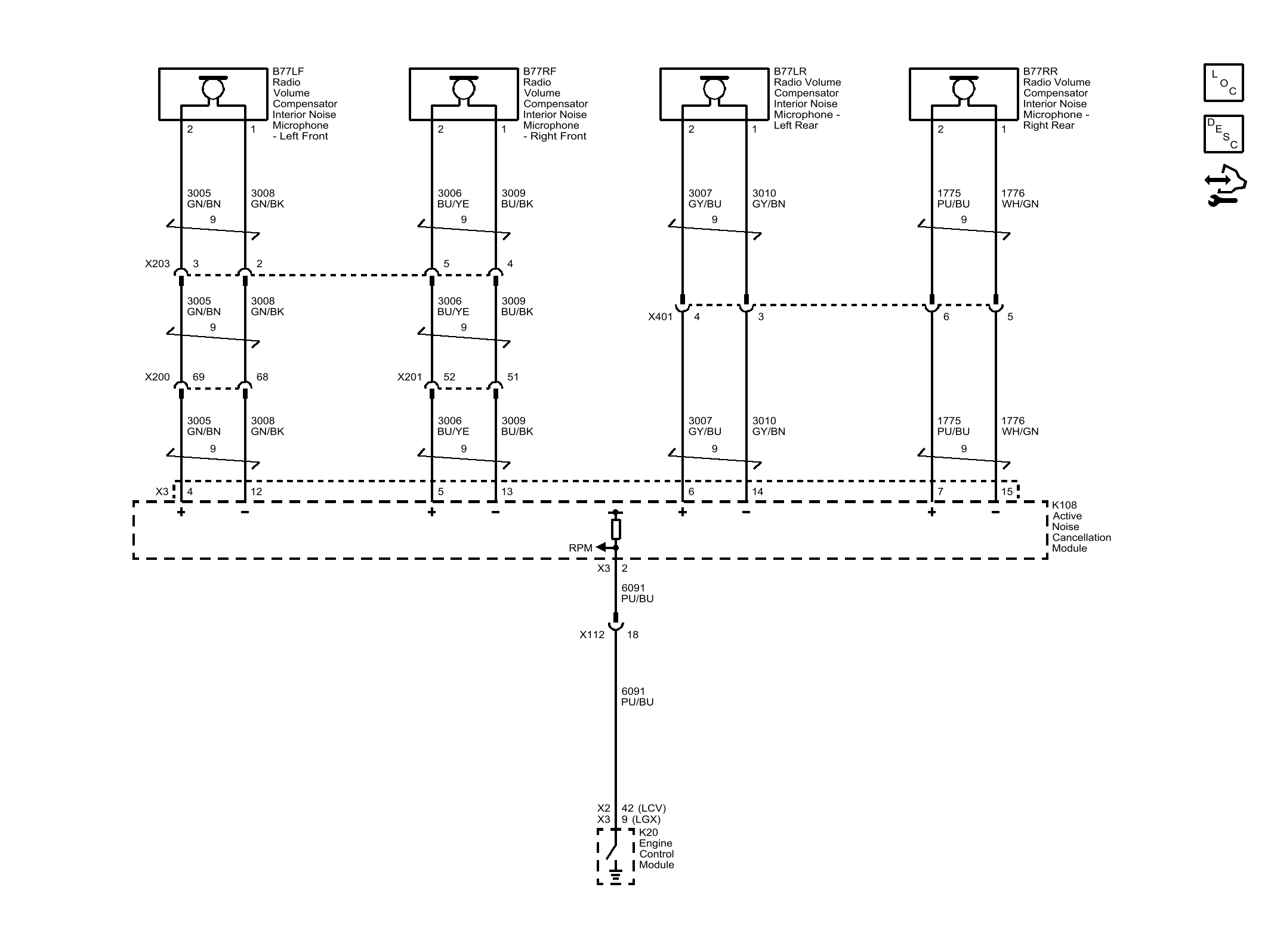

Fig 1: Active Noise Cancellation
GM4810916Courtesy of GENERAL MOTORS COMPANY
