Active Noise Cancellation Module Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

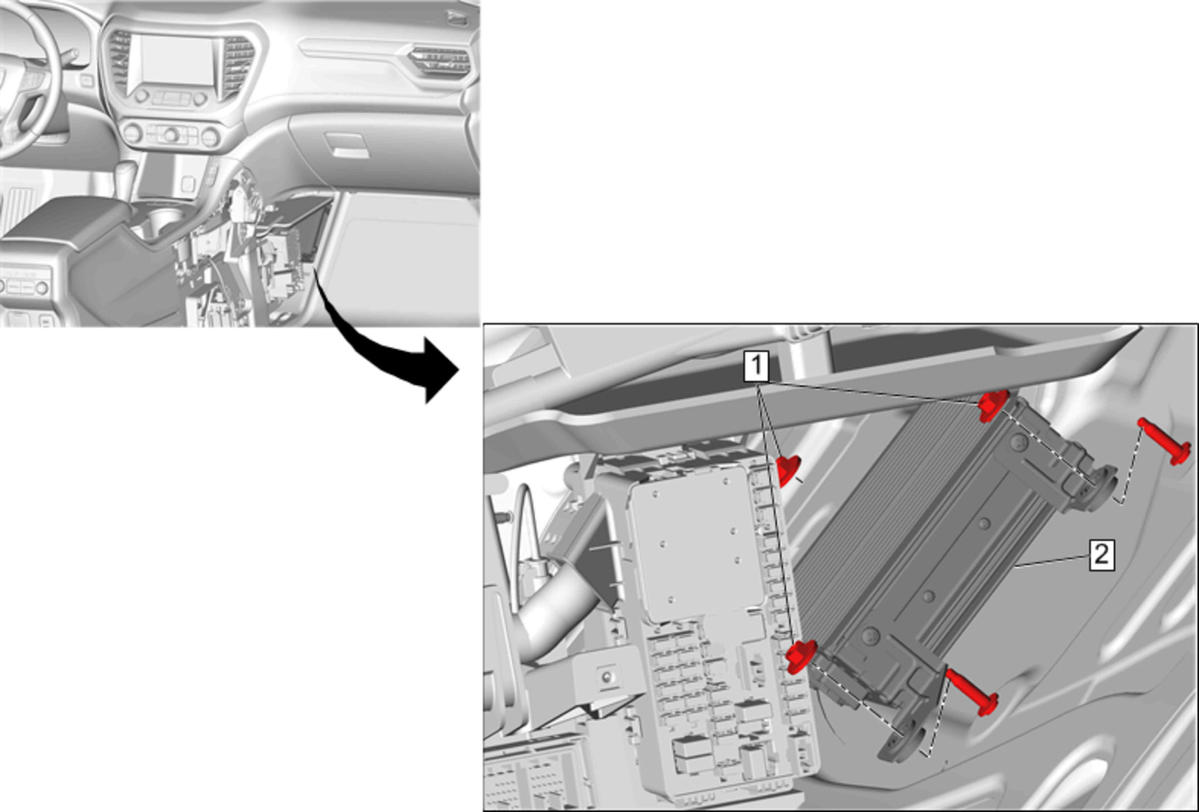

Fig 1: Active Noise Cancellation Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement - Left Side Front Floor Console Extension Panel Replacement - Right Side
1	Radio Speaker Amplifier Nut (Qty: 3) CAUTION: Fastener Caution Tighten 6 N.m (53 lb in)
2	Active Noise Cancellation Module Procedure Disconnect the electrical connectors.

Callout

Component Name

Preliminary Procedures

Front Floor Console Extension Panel Replacement - Left Side
Front Floor Console Extension Panel Replacement - Right Side

Radio Speaker Amplifier Nut (Qty: 3)

CAUTION:

Fastener Caution

Tighten
6 N.m (53 lb in)

Active Noise Cancellation Module
Procedure
Disconnect the electrical connectors.
