Front Side Door Window Weatherstrip Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

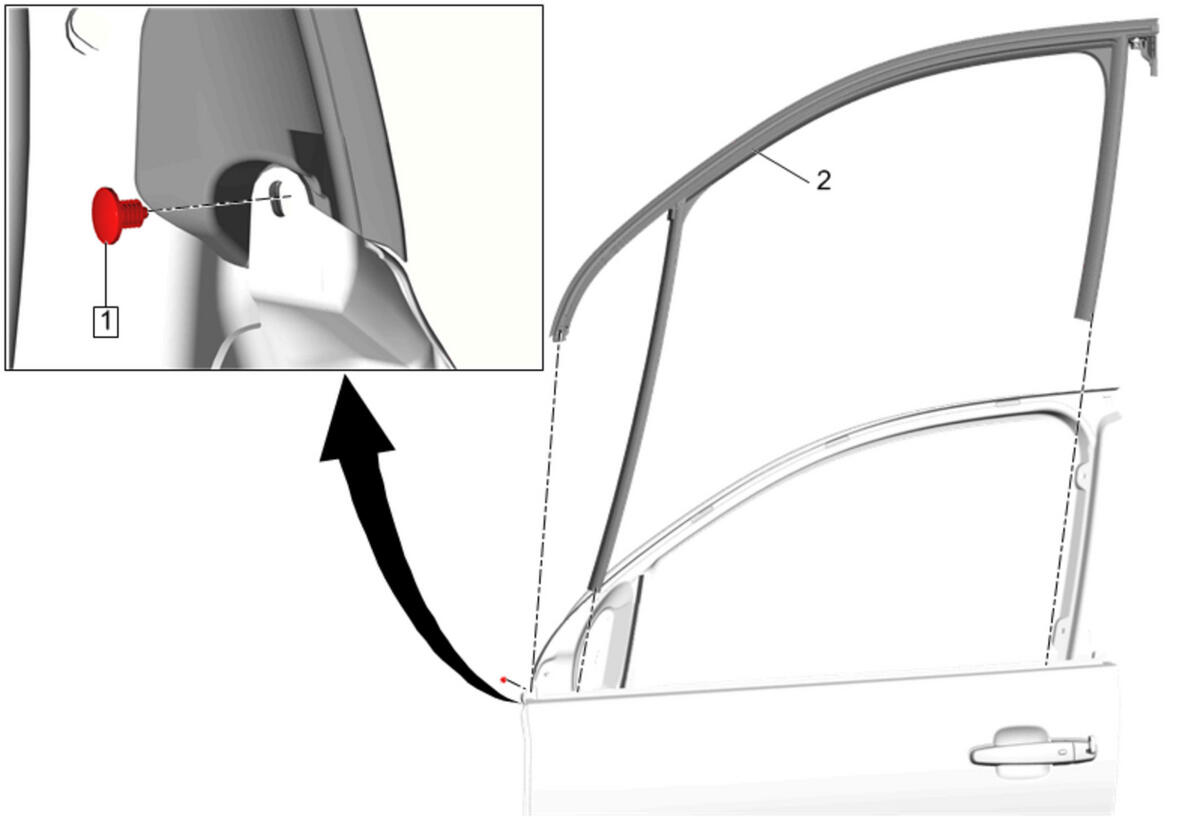

Fig 1: Front Side Door Window Weatherstrip
GM4405547Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Side Door Window Replacement
  2. Radio Front Side Door Speaker Replacement
  3. Front Side Door Window Frame Rear Applique Replacement
1 Front Side Door Window Weatherstrip Fastener
2 Front Side Door Window Weatherstrip
