Front Side Door Window Inner Sealing Strip Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

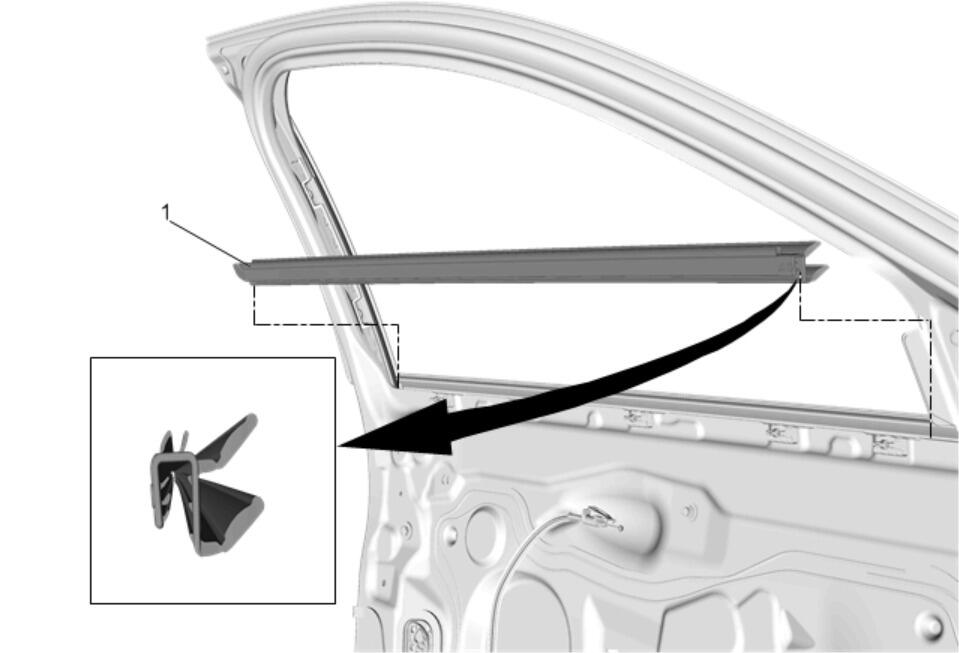

Fig 1: Front Side Door Window Inner Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the front door window in the full down position. Front Side Door Window Garnish Molding Replacement
1	Front Side Door Window Inner Sealing Strip Procedure Lift the front side door window inner strip off the pinch-weld flange. Press firmly to insert the front side door window inner strip back on the door flange. Inspect the door window for proper operation before installing the door trim panel.

Callout

Component Name

Preliminary Procedures

Place the front door window in the full down position.
Front Side Door Window Garnish Molding Replacement

Front Side Door Window Inner Sealing Strip

Procedure

Lift the front side door window inner strip off the pinch-weld flange.
Press firmly to insert the front side door window inner strip back on the door flange.
Inspect the door window for proper operation before installing the door trim panel.
