Section 325 (HVAC System - Automatic)
>>
Schematic Wiring Diagrams
>>
HVAC Wiring Schematics
>>
Mode and Temperature Control Actuators
Mode and Temperature Control Actuators
WARNING:
This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

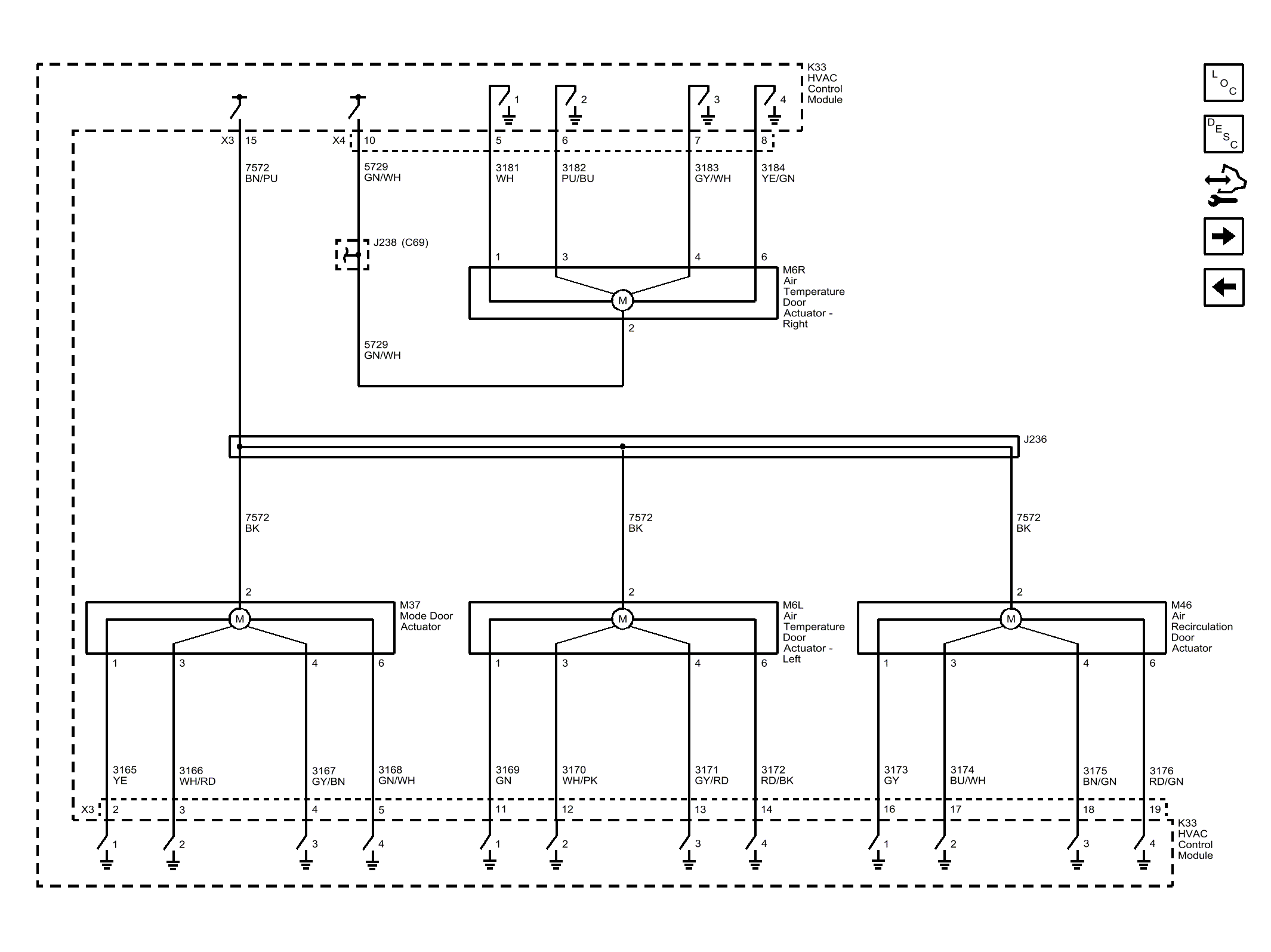

Fig 1: Mode and Temperature Control Actuators
Courtesy of GENERAL MOTORS COMPANY
