Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Instrument Panel Assembly
    GM4375248Courtesy of GENERAL MOTORS COMPANY
  1. Remove Instrument Panel Carrier (1)Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB)
    2. Fig 2: Side Window Defogger Outlet Duct
    GM4374331Courtesy of GENERAL MOTORS COMPANY
  2. Remove Instrument Panel Outer Air Outlet Duct Bolt (1)
  3. Remove Side Window Defogger Outlet Duct - Right Side (2)
    4. Fig 3: Instrument Panel Outer Air Outlet Duct - Right Side
    GM4374601Courtesy of GENERAL MOTORS COMPANY
  4. Remove Instrument Panel Outer Air Outlet Duct - Right Side (2)
  5. Disconnect the electrical connector.

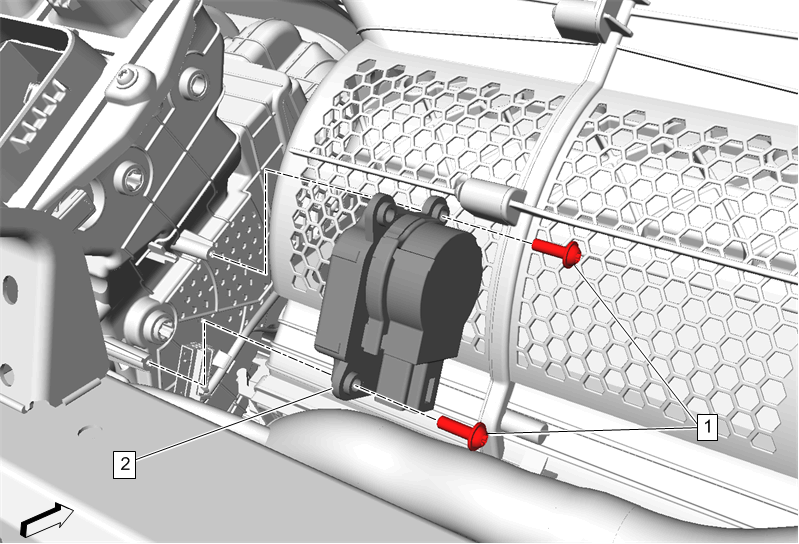

    6. Fig 4: Temperature Valve Actuator Bolt
    GM4375222Courtesy of GENERAL MOTORS COMPANY
  6. Remove Temperature Valve Actuator Bolt (1)
  7. Remove Temperature Valve Actuator (2)
