Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Floor Front Air Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Remove Floor Front Air Outlet Duct - Left Side (2)Floor Front Air Outlet Duct Replacement - Left Side
Remove Brake and Accelerator Pedal Assembly Brake and Accelerator Pedal Assembly Replacement

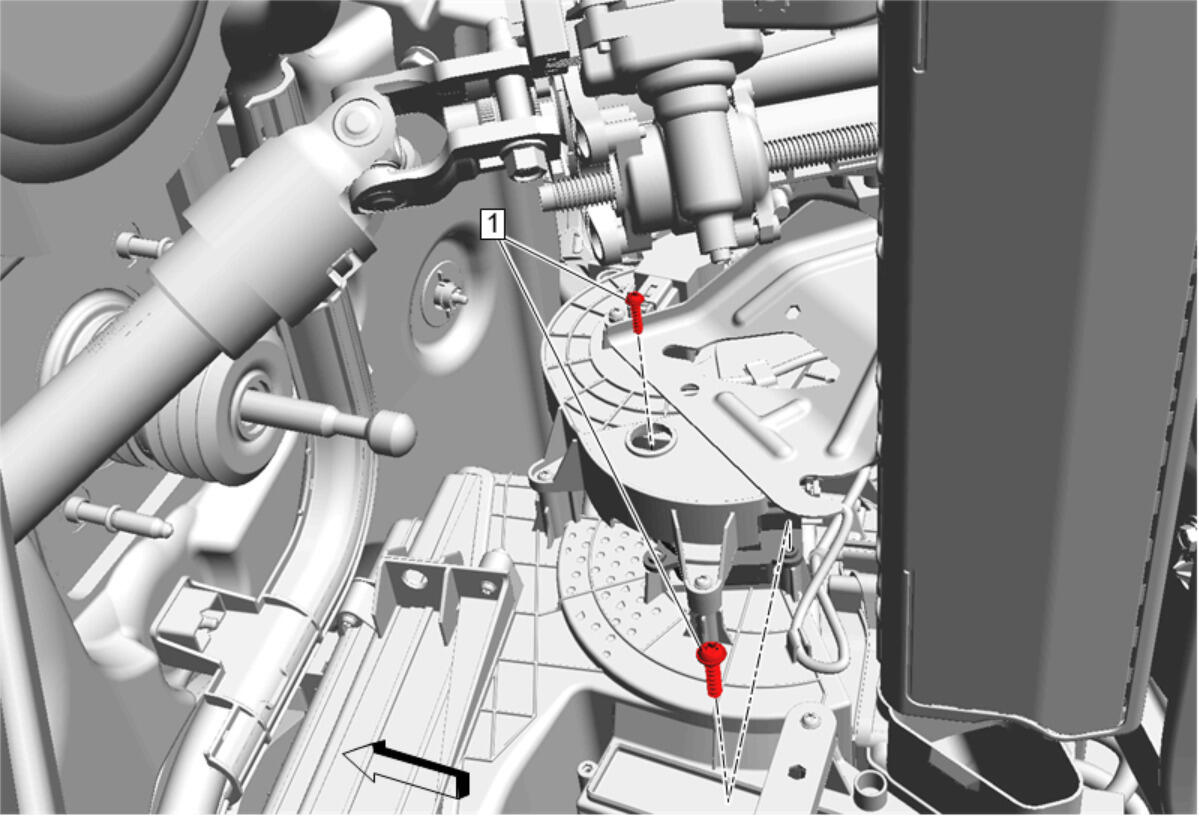

Fig 2: Temperature Valve Actuator Bolt

Courtesy of GENERAL MOTORS COMPANY

Remove Temperature Valve Actuator Bolt (1)

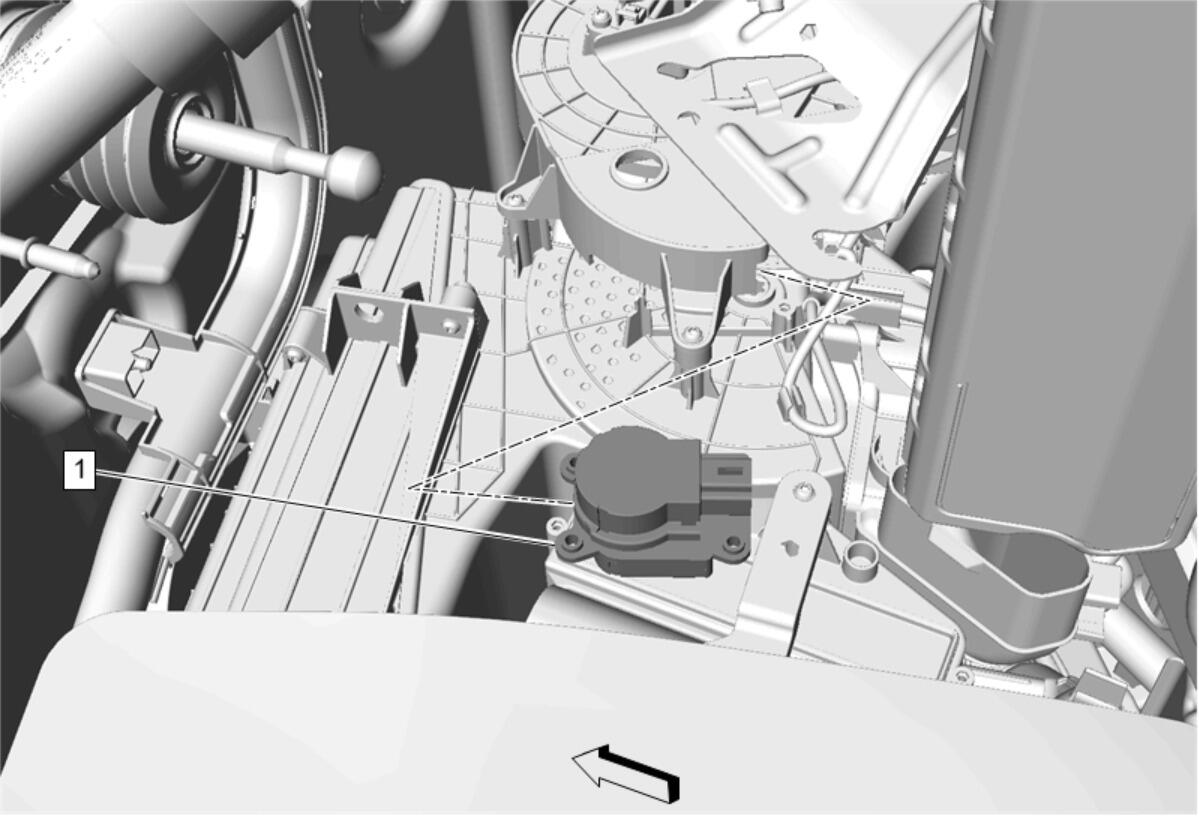

Fig 3: Temperature Valve Actuator

Courtesy of GENERAL MOTORS COMPANY

Slide the temperature valve actuator (1) out from in between the mode control cam cover and the air conditioning evaporator and blower module assembly to remove.
