Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Extension Replacement |
|

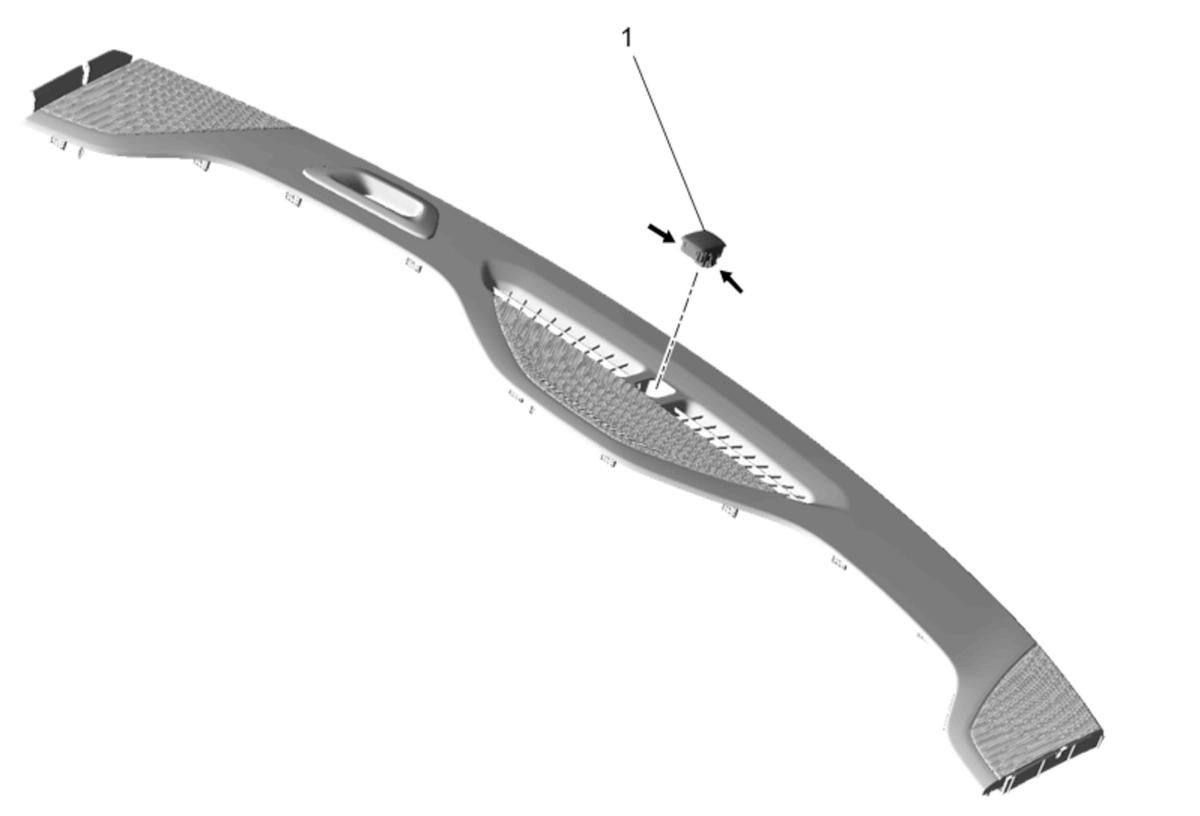

| 1 | Sun Load Temperature and Headlamp Automatic Control Ambient Light Sensor Procedure Depress the sun load temperature and head-lamp automatic control ambient light sensor tabs to remove from the instrument panel extension. |
