Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

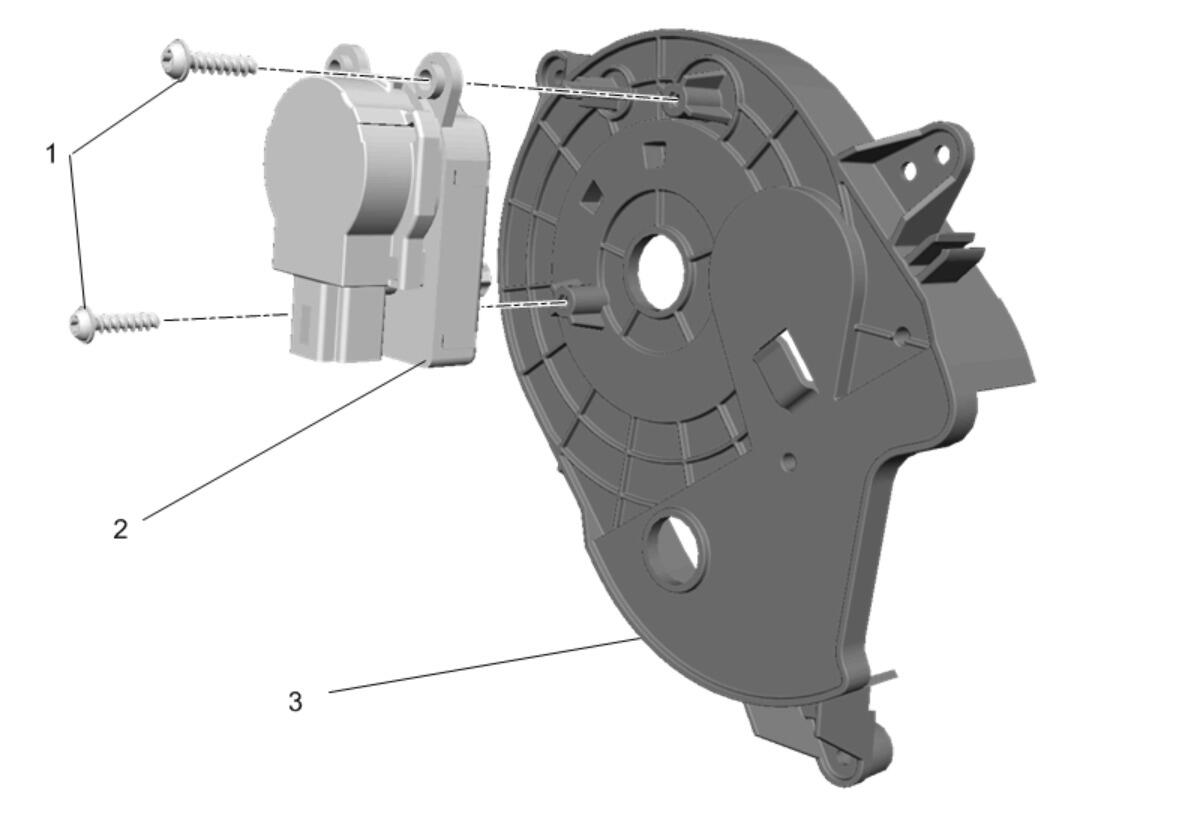

    Fig 1: Mode Valve Actuator
    GM4311574Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install Mode Valve Actuator (2) @Heater and Air Conditioning Mode Control Cam Cover (3)
  2. Mode Valve Actuator Bolt (1) and tighten 1.3 N.m (12 lb in)

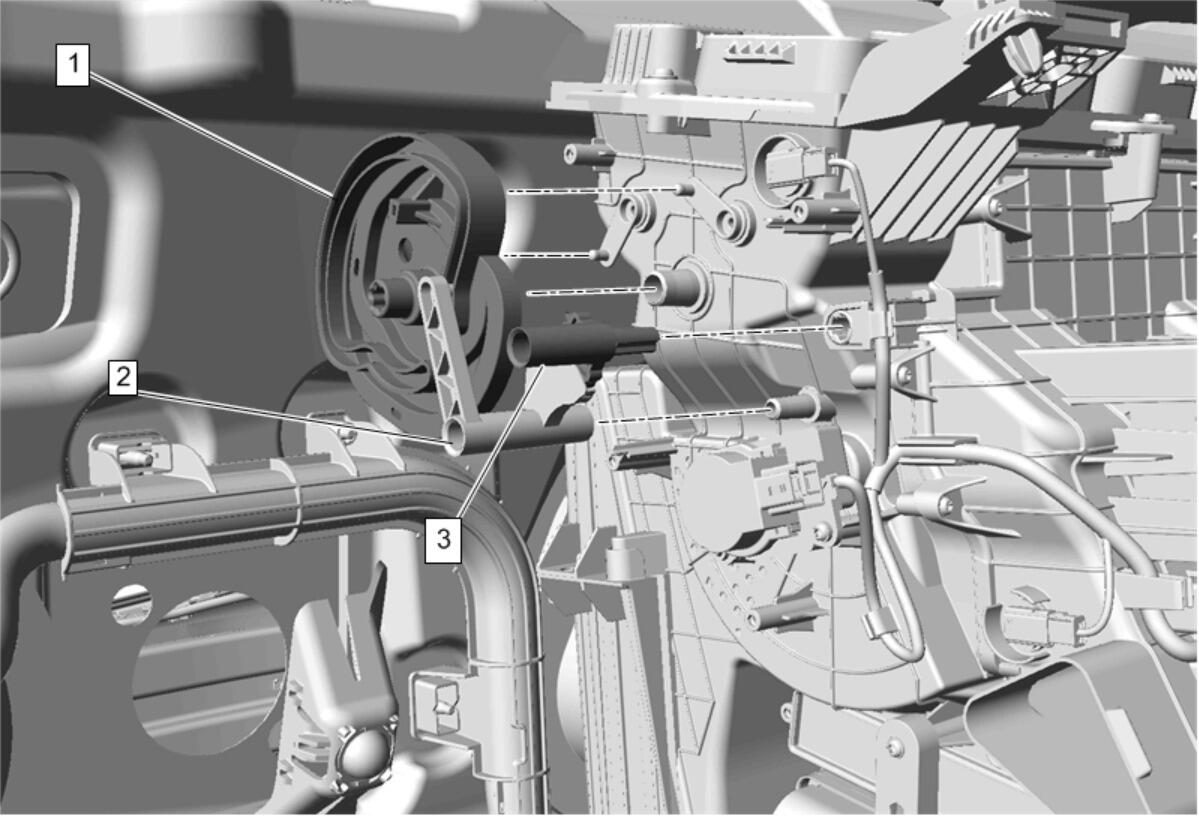

    3. Fig 2: Mode Control Cam Actuator Sub-Lever - Vent Gear
    GM4311572Courtesy of GENERAL MOTORS COMPANY
  3. Install Mode Control Cam Actuator Sub-Lever - Vent Gear (3)
  4. Install Mode Control Cam (1)
  5. Install Mode Control Cam Actuator Sub-Lever - Vent (2)
  6. During installation of the mode control cam and sub - levers align the lever pins with the guide channels on the mode control cam.

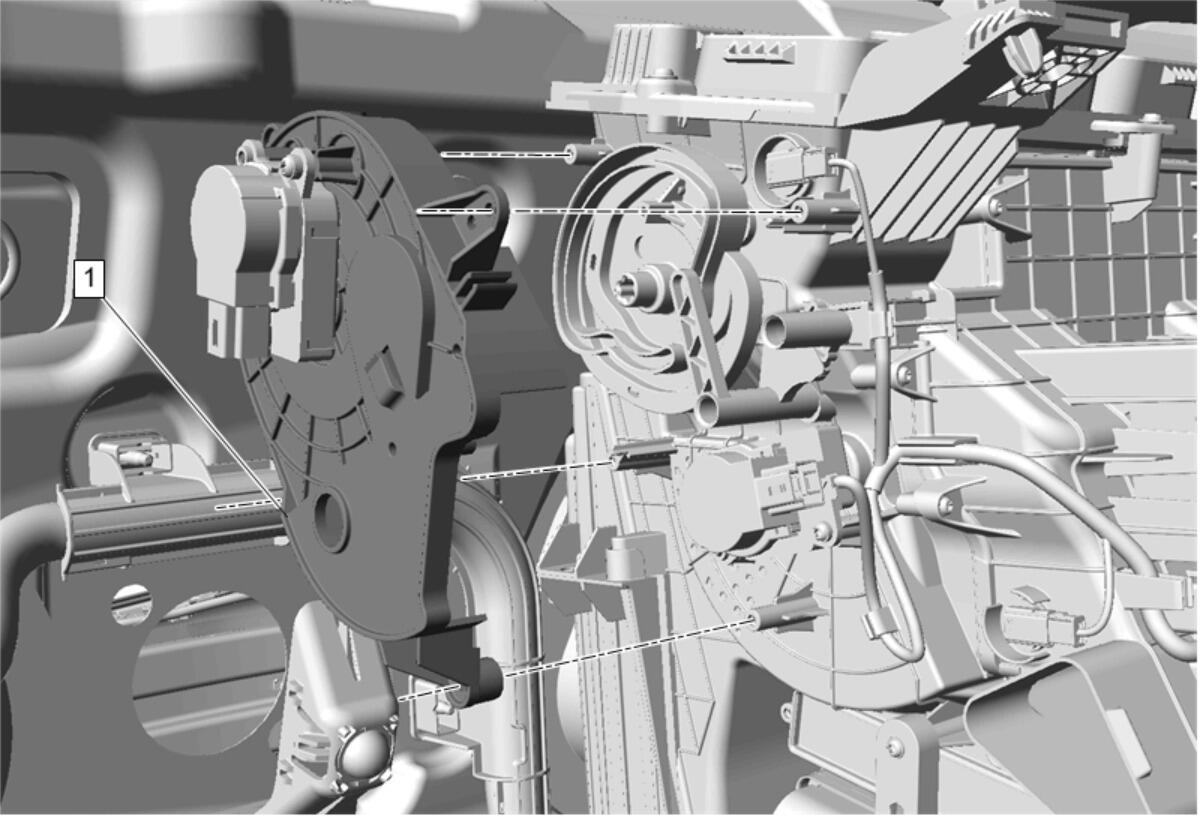

    7. Fig 3: Heater and Air Conditioning Mode Control Cam Cover
    GM4311570Courtesy of GENERAL MOTORS COMPANY
  7. Install Heater and Air Conditioning Mode Control Cam Cover (1) @Heater and Air Conditioning Evaporator and Blower Module

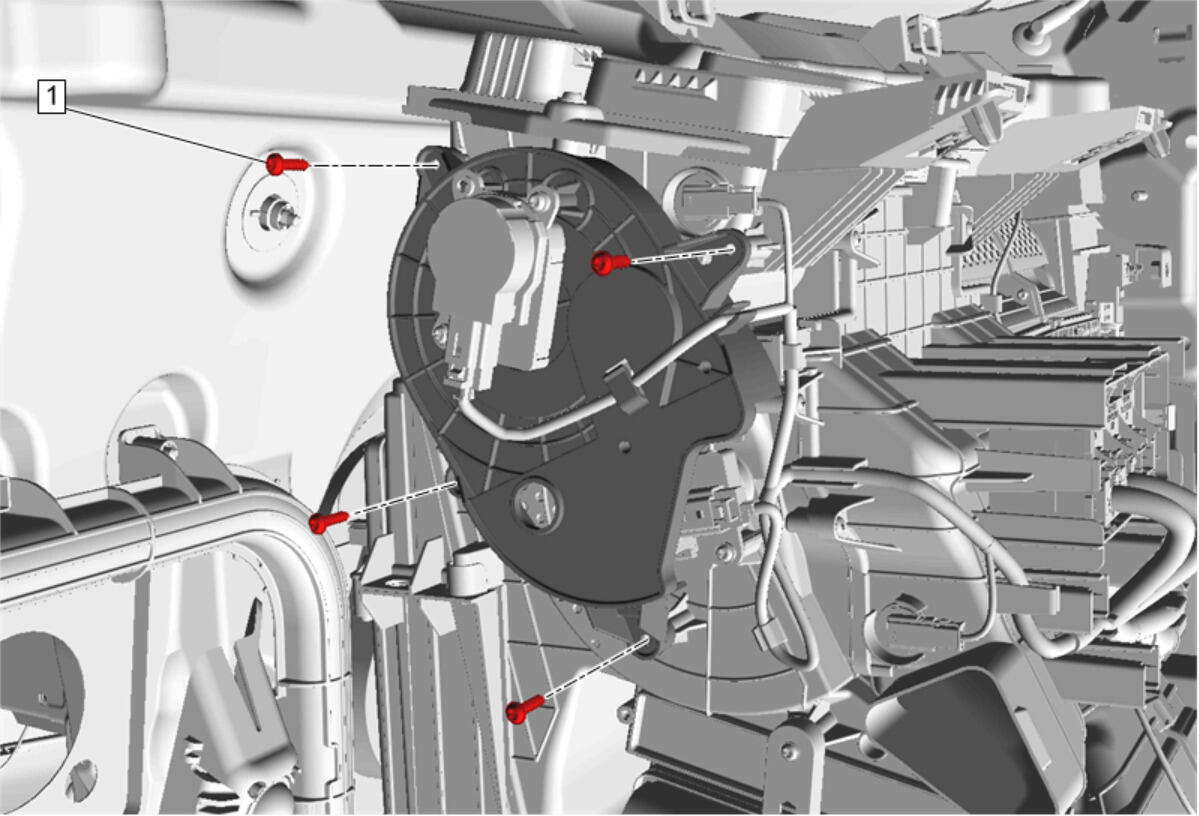

    8. Fig 4: Heater and Air Conditioning Mode Control Cam Cover Bolt
    GM4311566Courtesy of GENERAL MOTORS COMPANY
  8. Install Heater and Air Conditioning Mode Control Cam Cover Bolt (1) and tighten 2.5 N.m (22 lb in)
    9. Fig 5: Instrument Panel Tie Bar and Bolts
    GM4310267Courtesy of GENERAL MOTORS COMPANY
  9. Install Instrument Panel Tie Bar (2)Instrument Panel Tie Bar Replacement
  10. Perform the actuator calibration procedure. Actuator Recalibration
  11. Clear the DTCs.
