Inside Air Moisture and Windshield Temperature Sensor Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

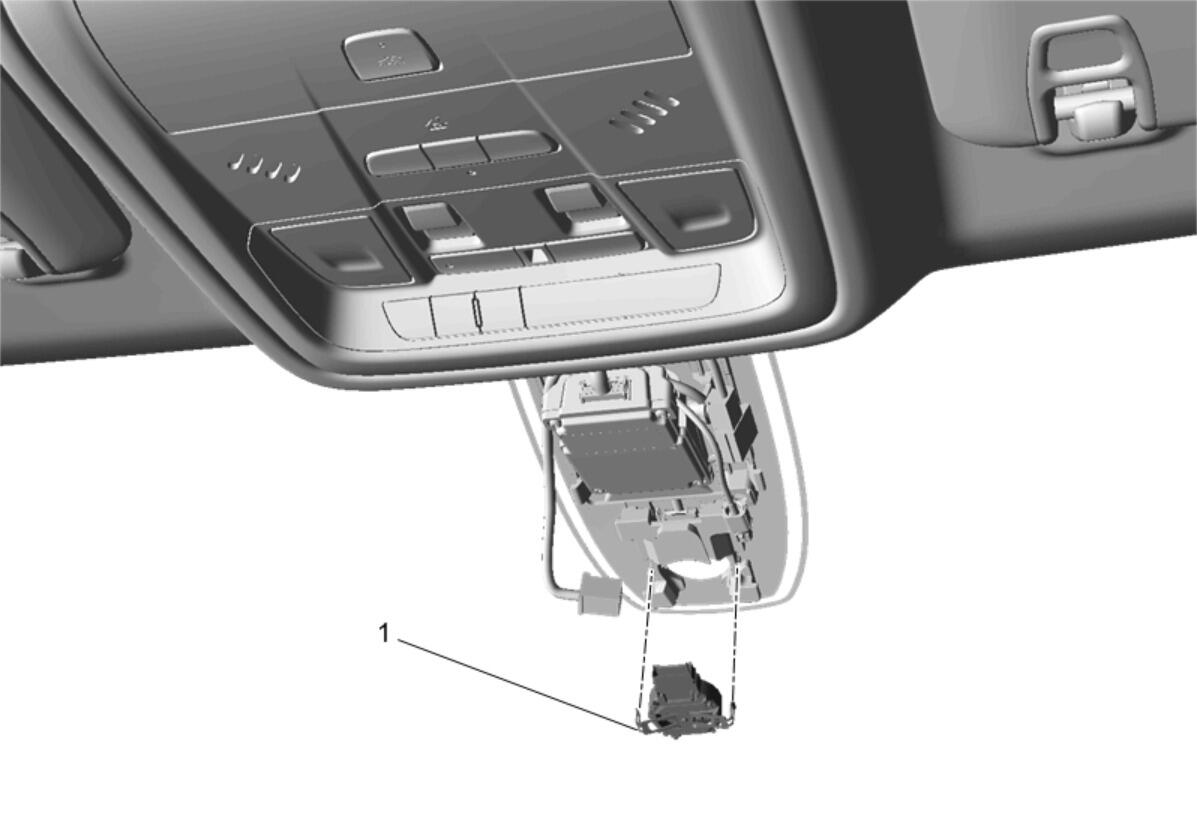

Fig 1: Inside Air Moisture and Windshield Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Inside Rearview Mirror Replacement
1	Inside Air Moisture and Windshield Temperature Sensor Procedures Unlatch the inside air moisture and windshield temperature sensor from the inside rear view mirror support bracket. Disconnect the inside air moisture and windshield temperature sensor connector.

Callout

Component Name

Preliminary Procedure
Inside Rearview Mirror Replacement

Inside Air Moisture and Windshield Temperature Sensor

Procedures

Unlatch the inside air moisture and windshield temperature sensor from the inside rear view mirror support bracket.
Disconnect the inside air moisture and windshield temperature sensor connector.
