Duct Air Temperature Sensor Replacement - Upper Right Side
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedure
- Open the instrument panel compartment door.
- Disconnect the instrument panel compartment door dampener from the instrument panel compartment.
- Squeeze the sides of the instrument panel compartment door and lower the instrument panel compartment door past the stops.
|

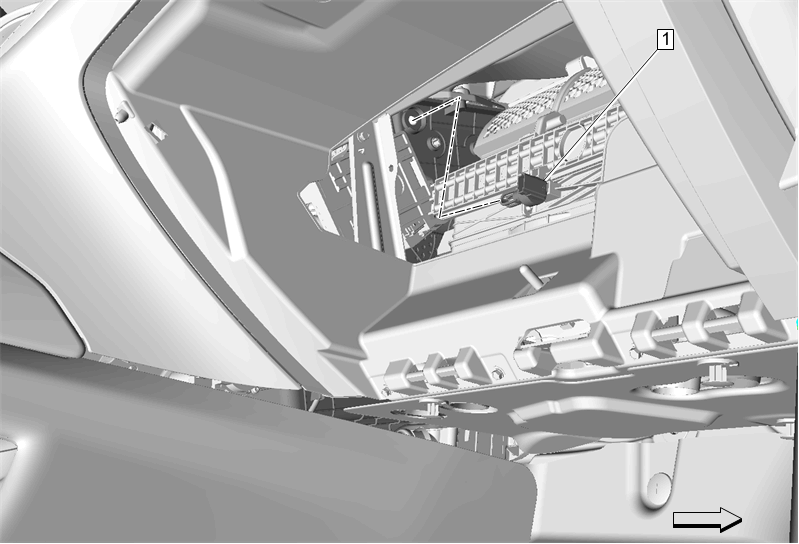

| 1 |
Duct Air Temperature Sensor - Upper Right Side Procedure
- Disconnect the electrical connector.
- Clear the DTCs from the heater and air conditioning remote control module.
|
