Duct Air Temperature Sensor Replacement - Upper Left Side

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

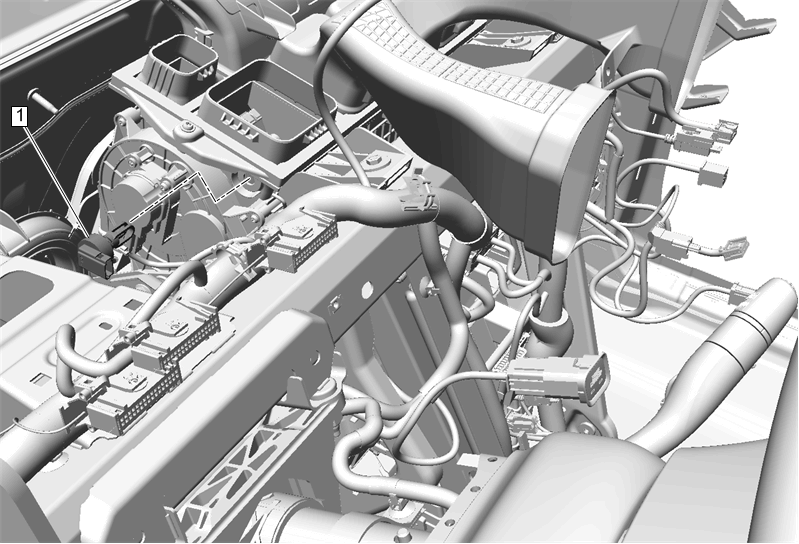

Fig 1: Duct Air Temperature Sensor - Upper Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB) Side Window Defogger Outlet Duct Replacement - Left Side Instrument Panel Outer Air Outlet Duct Replacement - Left Side
1	Duct Air Temperature Sensor - Upper Left Side Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB)
Side Window Defogger Outlet Duct Replacement - Left Side
Instrument Panel Outer Air Outlet Duct Replacement - Left Side

Duct Air Temperature Sensor - Upper Left Side
Procedure
Disconnect the electrical connector.
