Duct Air Temperature Sensor Replacement - Lower Right Side

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

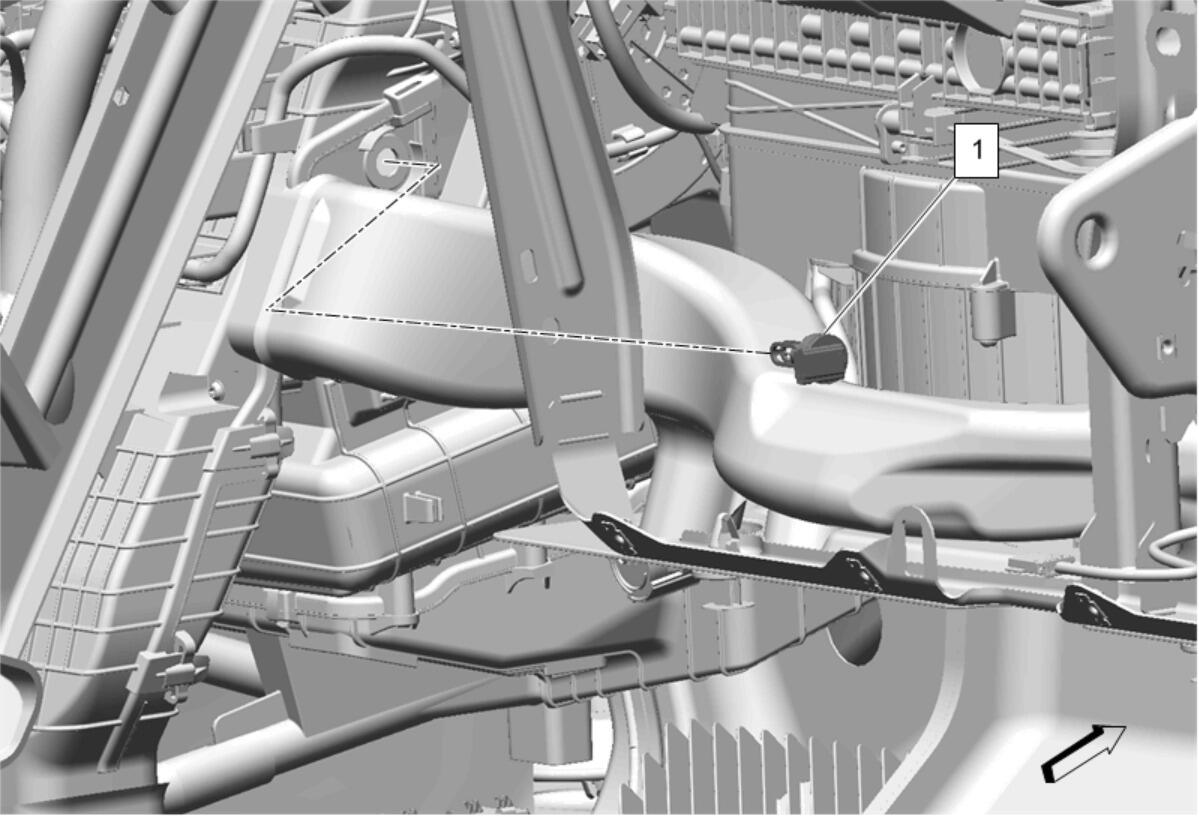

Fig 1: Duct Air Temperature Sensor - Lower Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Compartment Replacement
1	Duct Air Temperature Sensor - Lower Right Side Procedure Disconnect the electrical connector. Clear the DTCs from the heater and air conditioning remote control module.

Callout

Component Name

Preliminary Procedure
Instrument Panel Compartment Replacement

Duct Air Temperature Sensor - Lower Right Side

Procedure

Disconnect the electrical connector.
Clear the DTCs from the heater and air conditioning remote control module.
