Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Instrument Panel Assembly
    GM4375248Courtesy of GENERAL MOTORS COMPANY
  1. Remove Instrument Panel Carrier (1) Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB)
    2. Fig 2: Side Window Defogger Outlet Duct
    GM4374331Courtesy of GENERAL MOTORS COMPANY
  2. Remove Side Window Defogger Outlet Duct - Right Side (2) Side Window Defogger Outlet Duct Replacement - Right Side
    3. Fig 3: Instrument Panel Outer Air Outlet Duct - Right Side
    GM4374601Courtesy of GENERAL MOTORS COMPANY
  3. Remove Instrument Panel Outer Air Outlet Duct Bolt (1)
  4. Remove Instrument Panel Outer Air Outlet Duct - Right Side (2)
  5. Disconnect the electrical connector.

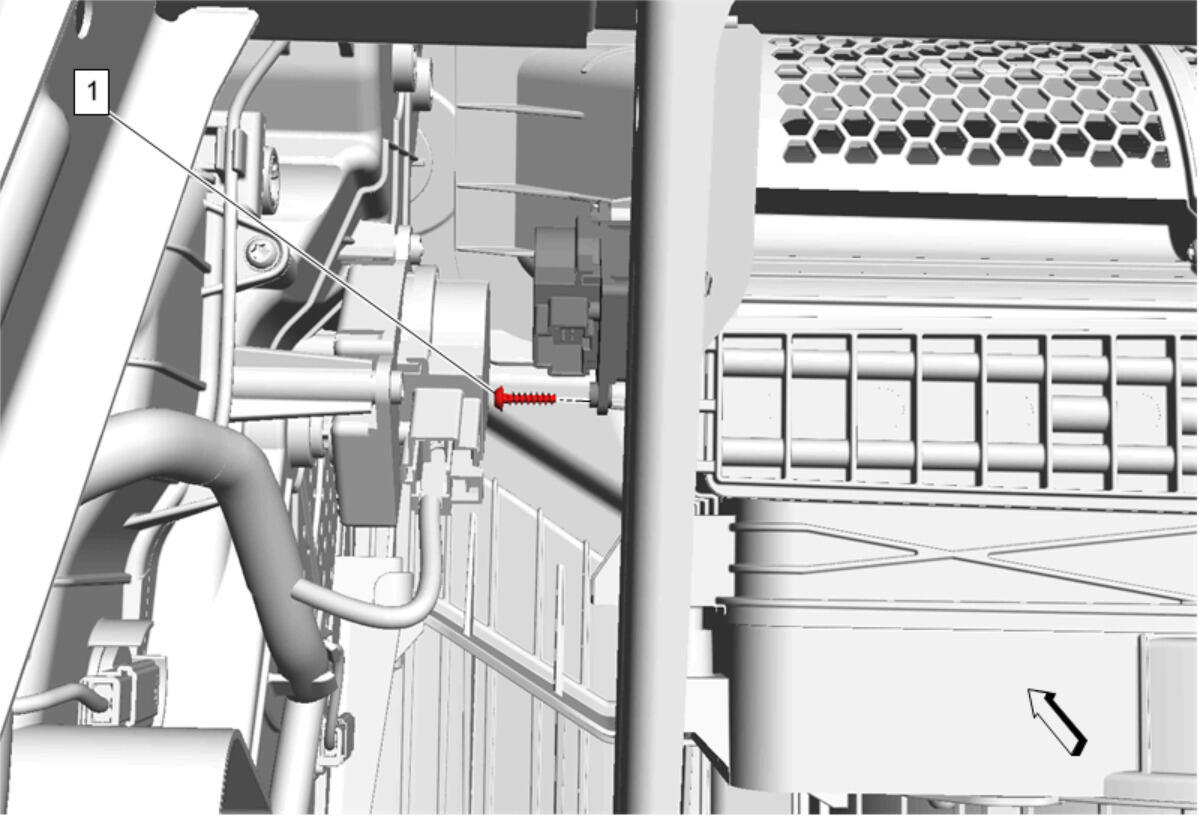

    6. Fig 4: Air Inlet Valve Actuator Bolt
    GM4310695Courtesy of GENERAL MOTORS COMPANY
  6. Remove Air Inlet Valve Actuator Bolt (1)

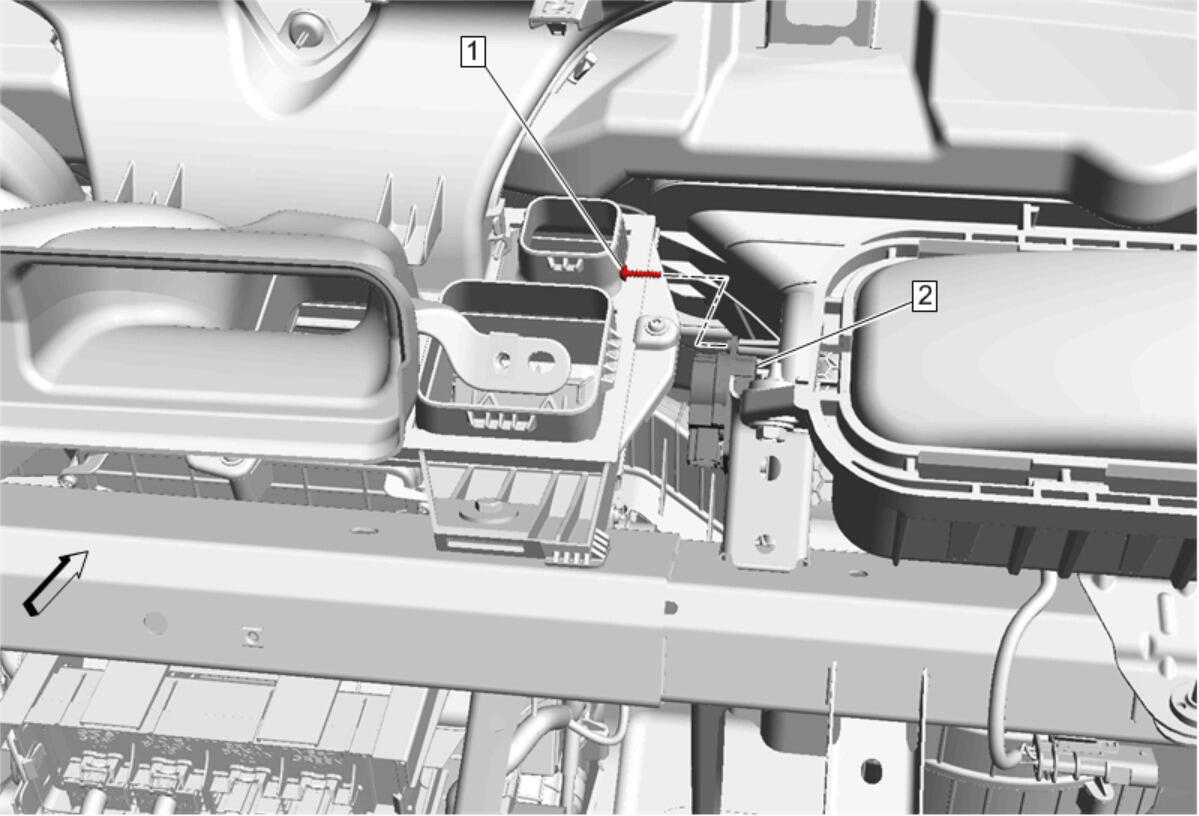

    7. Fig 5: Air Inlet Valve Actuator
    GM4310699Courtesy of GENERAL MOTORS COMPANY
  7. Remove Air Inlet Valve Actuator Bolt (1)
  8. Remove Air Inlet Valve Actuator (2)
