Removal Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Remove Floor Front Air Outlet Duct - Left Side (2)Floor Front Air Outlet Duct Replacement - Left Side
- Remove Instrument Panel Assembly (1)Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB)

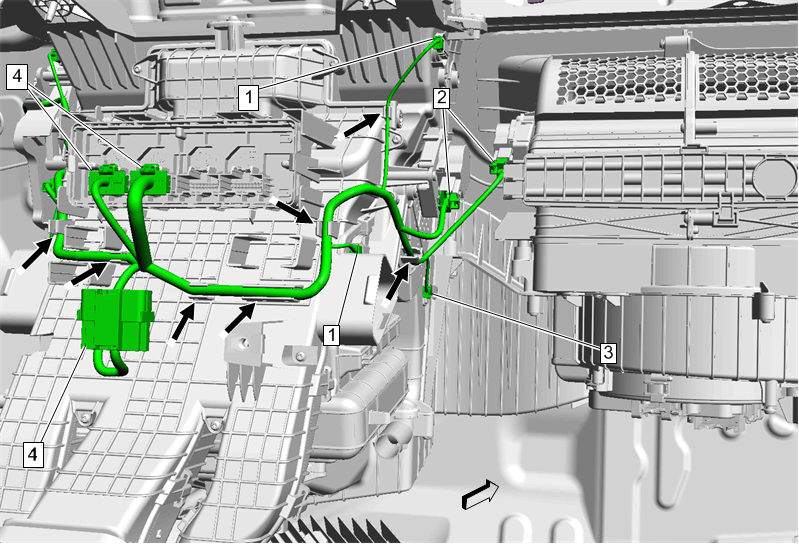

- Note the routing of the air conditioning wiring harness.
- Disconnect the two duct air temperature sensor electrical connectors (1).
- Disconnect the two valve actuator electrical connectors (2).
- Disconnect the evaporator air temperature sensor electrical connector (3).
- Disconnect the three air conditioning wiring harness electrical connectors (4).
- Detach the air conditioning wiring harness from the heater and air conditioning evaporator and blower module, indicated by the arrows.

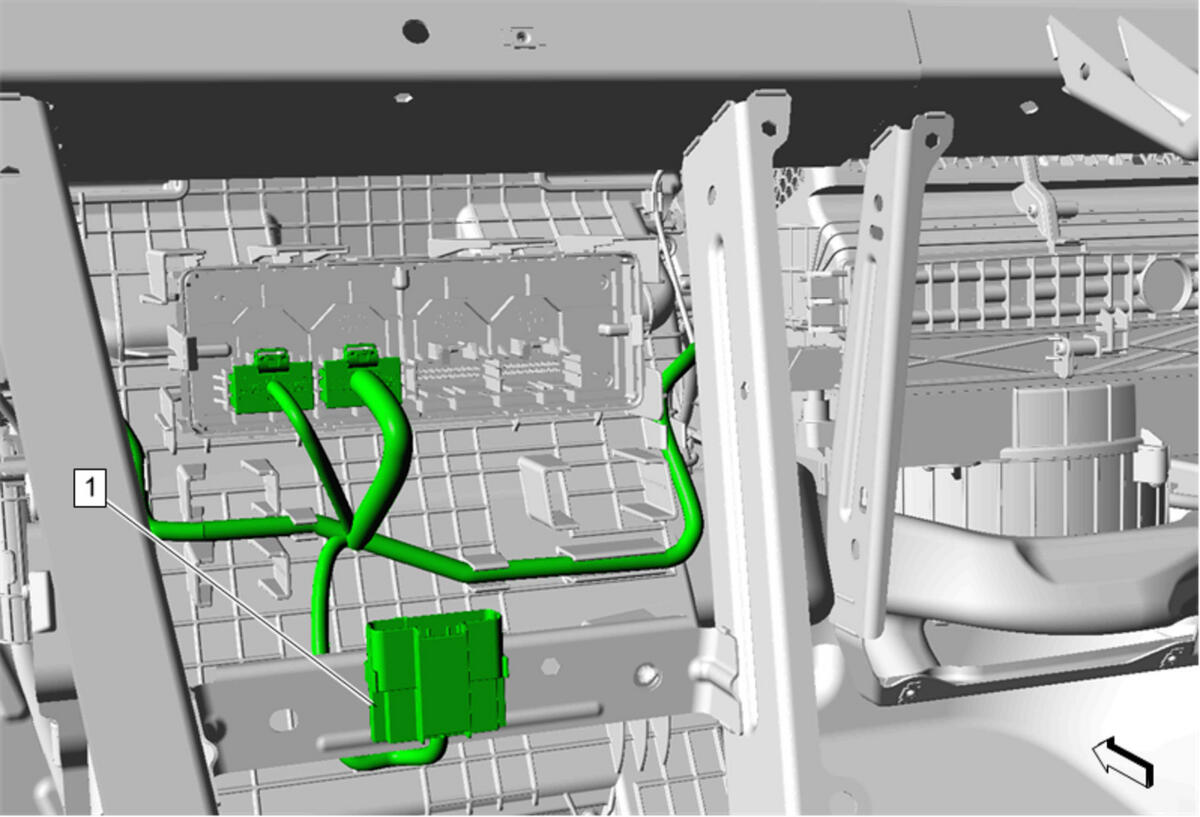

- Remove the terminals from X206 (1) and remove the air conditioning wiring harness out from behind the tie bar. Terminal Removal

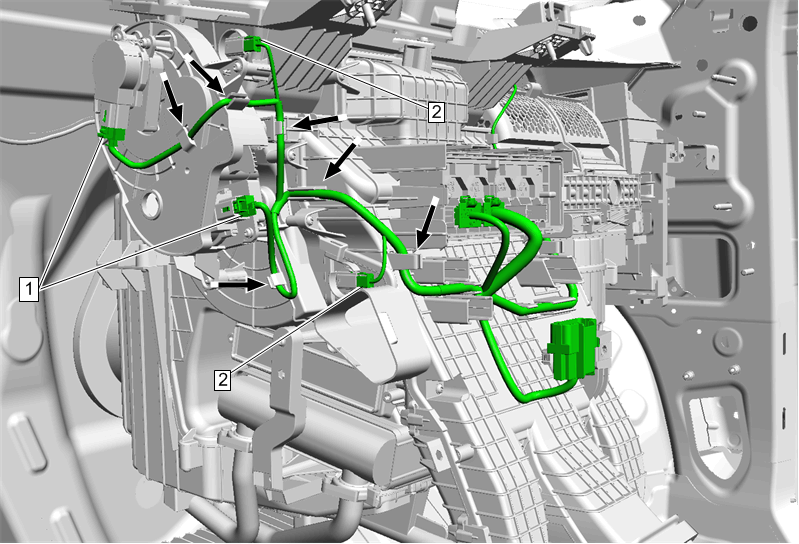

- Disconnect the two valve actuator electrical connectors (1).
- Disconnect the two duct air temperature sensor electrical connectors (2).
- Detach the air conditioning wiring harness from the heater and air conditioning evaporator and blower module, indicated by the arrows.

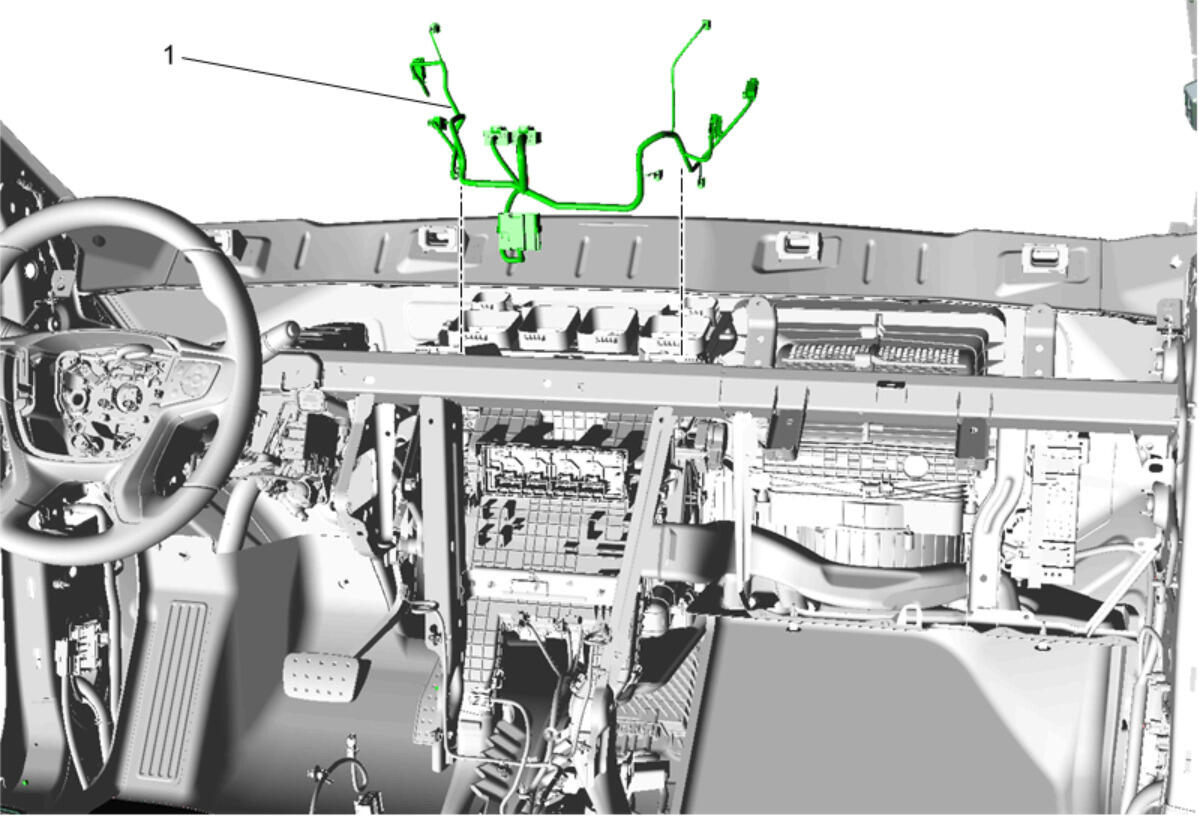

- Remove Air Conditioning Wiring Harness (1)
Fig 3: Evaporator Air Temperature Sensor Electrical Connector And Two Valve Actuator Electrical Connectors
NOTE:
The instrument panel tie bar is not shown for a better view of the air conditioning wiring harness connections.
NOTE:
Note the X206 circuit connector cavity location prior to the removal of the terminals.
