Rear Seat Belt Buckle Replacement (60%)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

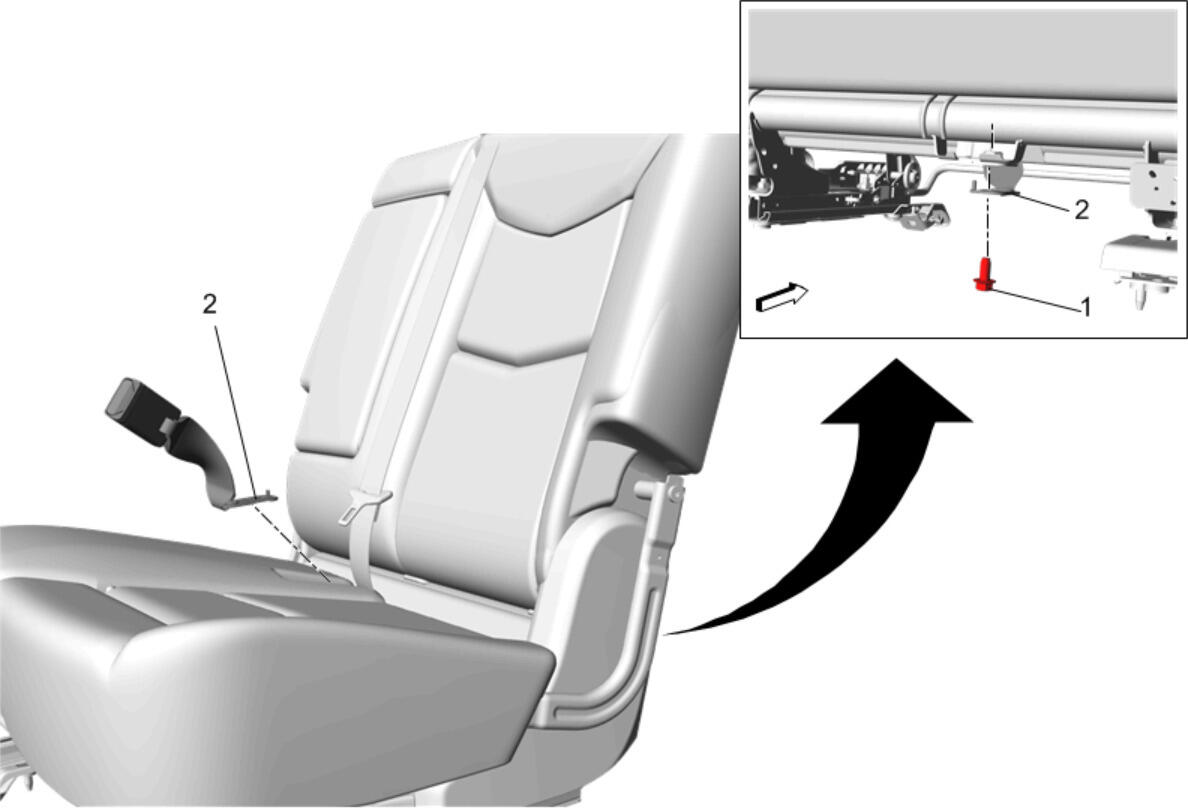

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Seat Back Center Bar Front Finish Cover Replacement (60%) |
|
| 1 | Rear Seat Belt Buckle Bolt
CAUTION:
Refer to Fastener Caution . Tighten 65 N.m (48 lb ft) |
| 2 | Rear Seat Belt Buckle Procedure Inset the tab on the seat belt buckle anchor into the slot on the seat frame. |
