Rear Center Seat Belt Buckle Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

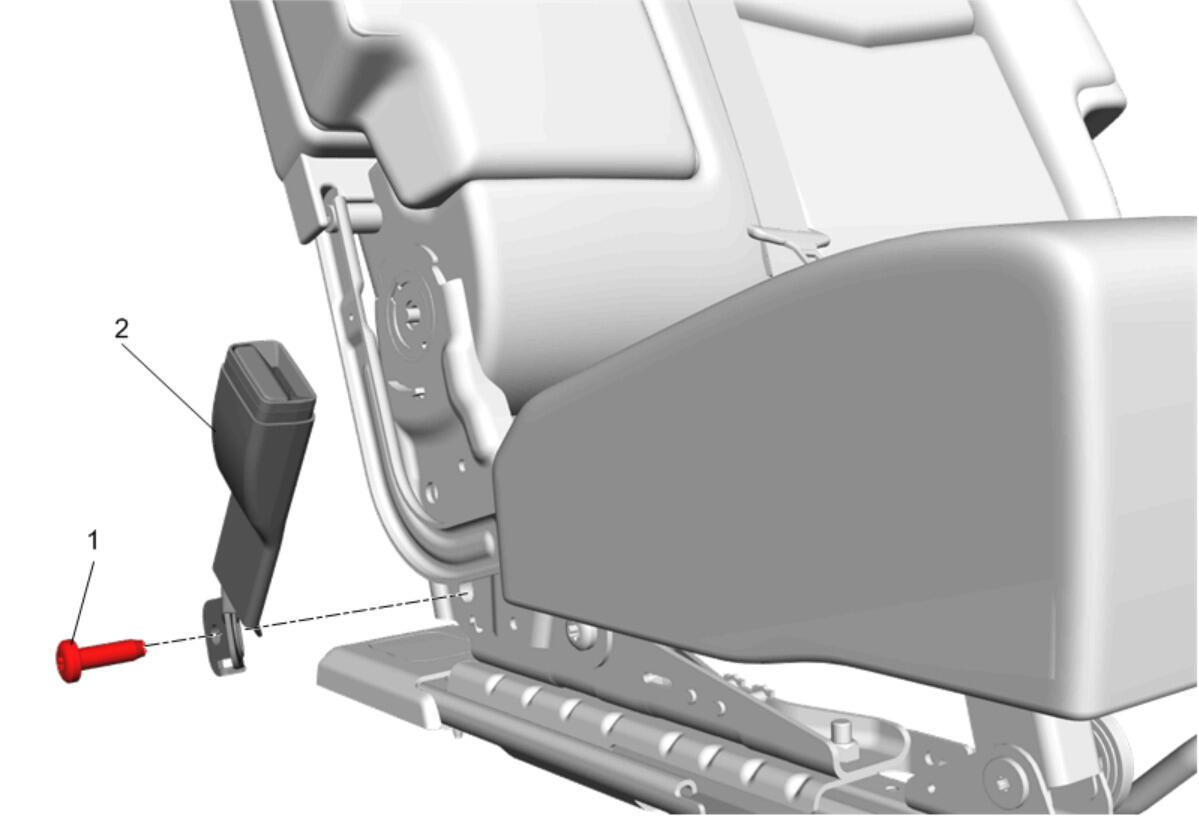

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Seat Inner Hinge Finish Cover Replacement (60/40 Bench)Rear Seat Inner Hinge Finish Cover Replacement (Right Bucket)Rear Seat Inner Hinge Finish Cover Replacement (Left Bucket) |
|
| 1 | Rear Center Seat Belt Buckle Bolt
CAUTION:
Refer to Fastener Caution . Tighten 65 N.m (48 lb ft) |
| 2 | Rear Center Seat Belt Buckle Procedure Inset the tab on the seat belt buckle anchor into the slot on the seat frame. |
