3rd Row Seat Belt Buckle Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

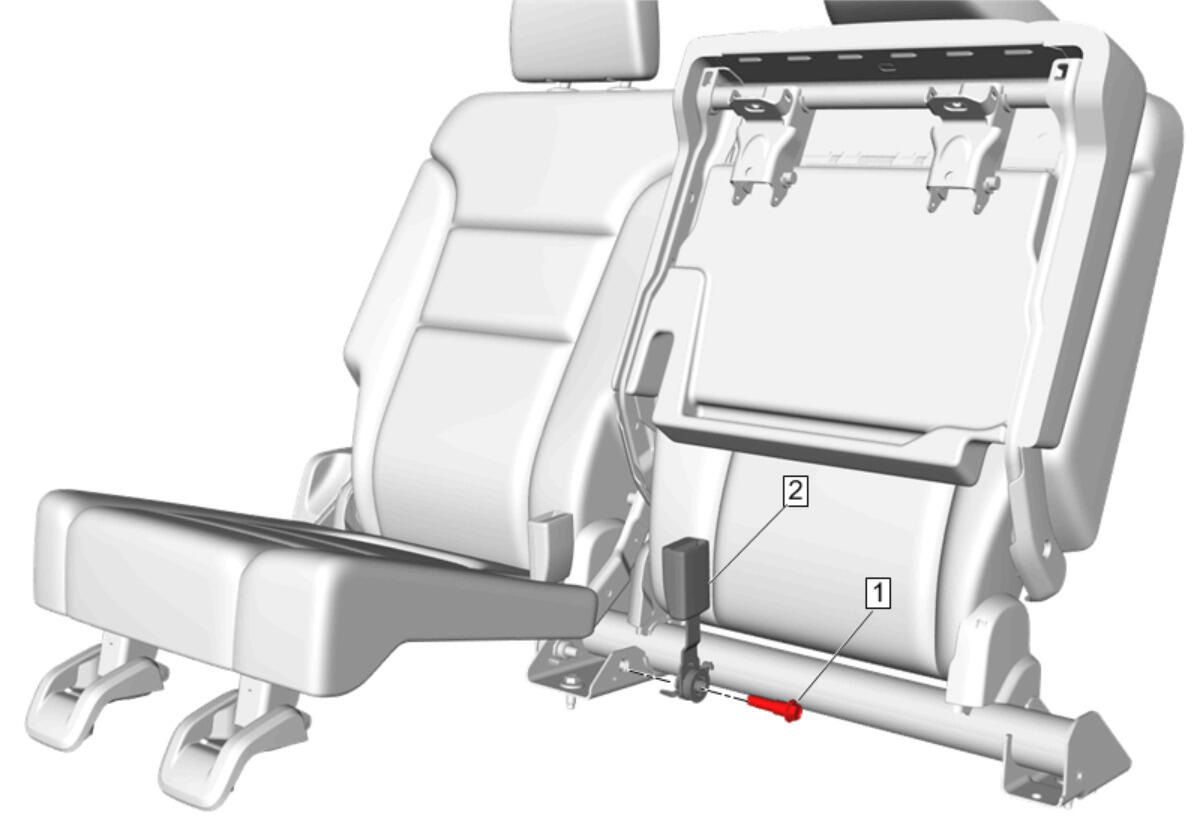

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the 3rd row seat front bolts and lift the seat cushion. 3rd Row Seat Removal and Installation |
|
| 1 | 3rd Row Seat Belt Buckle Bolt
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | 3rd Row Seat Belt Buckle |
