Seat Belt System Description and Operation: Notes
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

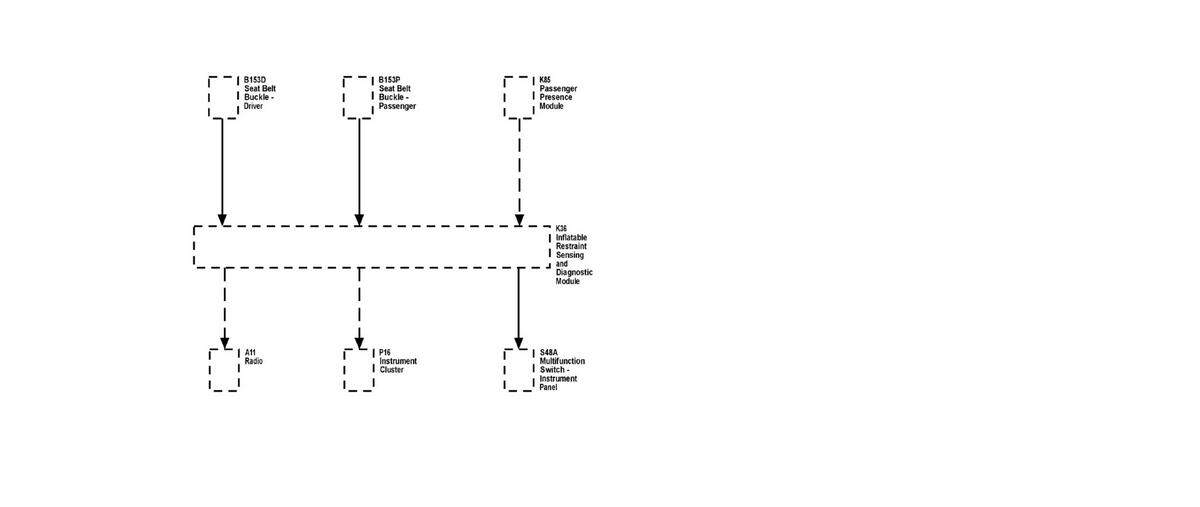

| Callout |
Component Name |
| B153D |
B153D Seat Belt Buckle - Driver |
| B153P |
B153P Seat Belt Buckle - Passenger |
| K85 |
Passenger Presence Module |
| K36 |
K36 Inflatable Restraint Sensing and Diagnostic Module |
| S48A |
S48A Multifunction Switch - Instrument Panel |
| P16 |
P16 Instrument Cluster |
| A11 |
A11 Radio |
