X53A Fuse Block - Rear Body Top View

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

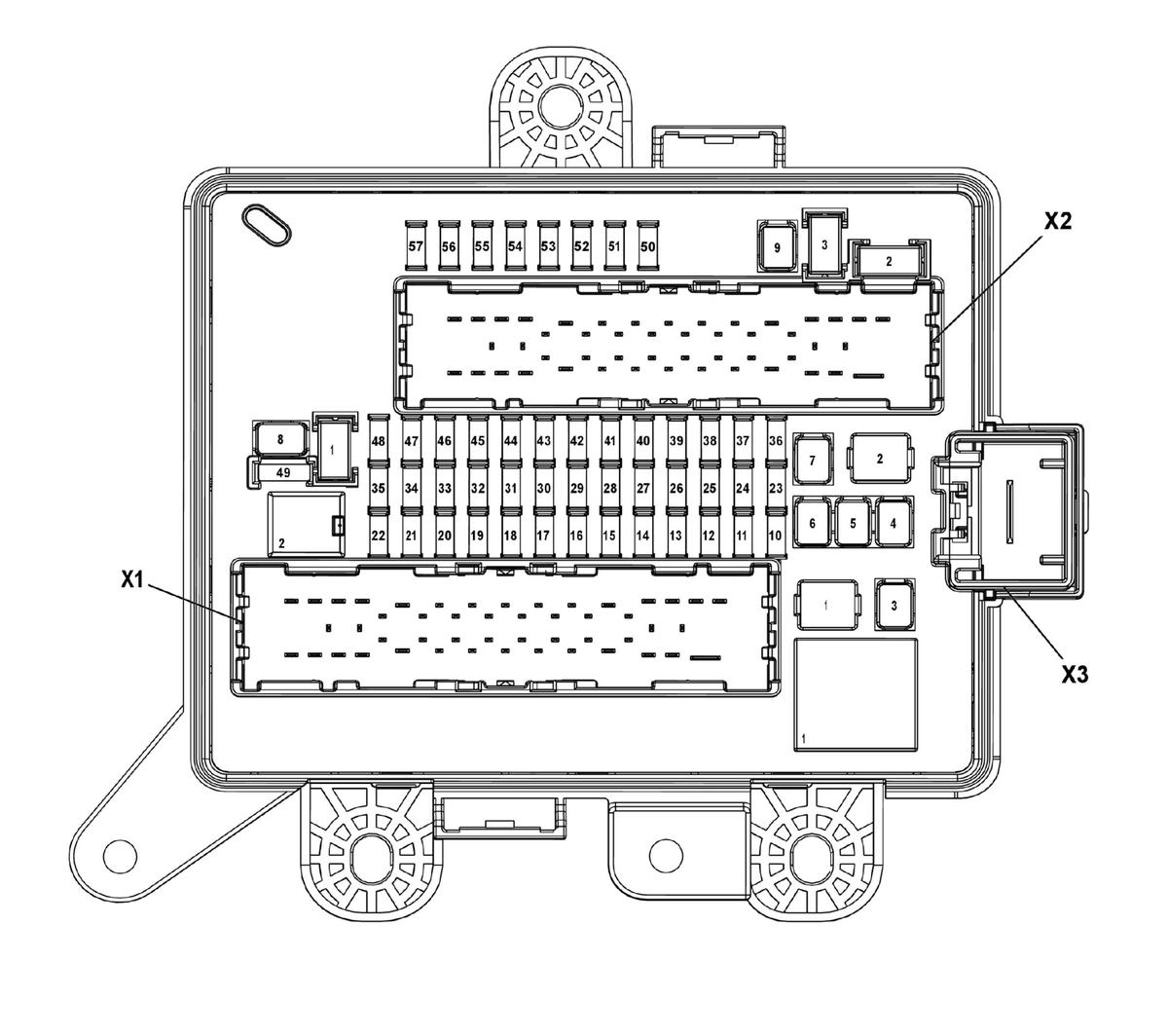

Fig 1: X53A Fuse Block - Rear Body Top View
GM4293780Courtesy of GENERAL MOTORS COMPANY
X53A FUSE BLOCK - REAR BODY FUSE AND RELAY IDENTIFICATION LEGEND

No. Device Label Name Device Assigned Name Rating Description
Fuses
1 EMPTY F1RA Fuse -
  • Not Used
2 TRLR 1 F2RA Fuse 30A
  • X88 Trailer Connector
3 EMPTY F3RA Fuse -
  • Not Used
4 BLWR REAR F4RA Fuse 30A
  • K8A Blower Motor Control Module - Auxiliary
5 R/D CNTRL F5RA Fuse 30A
  • K47 Rear Differential Clutch Control Module
6 EMPTY F6RA Fuse -
  • Not Used
7 WNDW RT F7RA Fuse 30A
  • S79P Window Switch - Passenger
  • S79RR Window Switch - Right Rear
8 REAR DEFOG F8RA Fuse 30A
  • E18 Rear Defogger Grid
9 WNDW LT F9RA Fuse 30A
  • M35D Window Motor Module - Driver (AXG)
  • S79D Window Switch - Driver (AEC)
  • S79LR Window Switch - Left Rear
10 EMPTY F10RA Fuse -
  • Not Used
11 TRLR BCK/UP F11RA Fuse 10A
  • X88 Trailer Connector (V92)
12 EMPTY F12RA Fuse -
  • Not Used
13 EMPTY F13RA Fuse -
  • Not Used
14 EMPTY F14RA Fuse -
  • Not Used
15 EMPTY F15RA Fuse -
  • Not Used
16 EMPTY F16RA Fuse -
  • Not Used
17 CAMERA F17RA Fuse 10A
  • B87 Rearview Camera (UVC)
18 EMPTY F18RA Fuse -
  • Not Used
19 EMPTY F19RA Fuse -
  • Not Used
20 EMPTY F20RA Fuse -
  • Not Used
21 EMPTY F21RA Fuse -
  • Not Used
21 EMPTY F21RA Fuse -
  • Not Used
22 EMPTY F22RA Fuse -
  • Not Used
23 EMPTY F23RA Fuse -
  • Not Used
24 PASS WNDW SW F24RA Fuse -
  • Not Used
25 EMPTY F25RA Fuse -
  • Not Used
26 TRLR BRK F26RA Fuse 30A
  • W8 Blunt Cut - Trailer Provision (V92)
27 VENT/LUM DRVR F27RA Fuse 15A
  • M73A Seat Blower Motor - Driver Back (KU9)
  • M73C Seat Blower Motor - Driver Cushion (KU9)
  • S64D Seat Adjuster Switch - Driver
28 PEPS F28RA Fuse 10A
  • K84 Keyless Entry Control Module
29 EMPTY F29RA Fuse -
  • Not Used
30 CNSTR VENT F30RA Fuse 10A
  • Q13 Evaporative Emission Vent Solenoid Valve
31 EMPTY F31RA Fuse -
  • Not Used
32 HTD MIR F32RA Fuse 10A
  • KR4B Outside Rearview Mirror Heater Relay
33 EMPTY F33RA Fuse -
  • Not Used
34 LOGIC MODE F34RA Fuse 10A
  • K39 Liftgate Control Module
35 FSCM F35RA Fuse 20A
  • K111 Fuel Pump Driver Control Module
36 VENT/LUM PASS F36RA Fuse 15A
  • M73B Seat Blower Motor - Passenger Back (KU9)
  • M73D Seat Blower Motor - Passenger Cushion (KU9)
  • S64P Seat Adjuster Switch - Passenger
37 EMPTY F37RA Fuse -
  • Not Used
38 WNDW MDL F38RA Fuse 10A
  • S79D Window Switch-Driver
39 REAR CLOSR F39RA Fuse 15A
  • KR95A Liftgate Unlatch Relay
40 MSM F40RA Fuse 20A
  • K40 Seat Memory Control Module
41 AOS F41RA Fuse 5A
  • K85 Passenger Presence Module
42 EMPTY F42RA Fuse -
  • Not Used
43 EMPTY F43RA Fuse -
  • Not Used
44 EMPTY F44RA Fuse -
  • Not Used
45 L/GATE F45RA Fuse 30A
  • K39 Liftgate Control Module
46 REAR/HTD/SEAT F46RA Fuse 20A
  • K29R Seat Heating Control Module - Rear (KA6)
47 EMPTY F47RA Fuse -
  • Not Used
48 EMPTY F48RA Fuse -
  • Not Used
49 EMPTY F49RA Fuse -
  • Not Used
50 EMPTY F50RA Fuse -
  • Not Used
51 EMPTY F51RA Fuse -
  • Not Used
52 SADS F52RA Fuse 10A
  • K19 Suspension Control Module (F45)
  • K47 Rear Differential Clutch Control Module (F48)
53 RPA F53RA Fuse 10A
  • K157 Video Processing Control Module (UVH)
  • K182 Parking Assist Control Module (UD5 or UD7)
54 EOCM SBZA F54RA Fuse 10A
  • B174W Frontview Camera - Windshield (UEU)
  • B218L Side Object Sensor Module - Left (UKC)
  • B218R Side Object Sensor Module - Right (UKC)
  • B233B Radar Sensor Module - Long Range (UGN)
  • K124 Active Safety Control Module (UGN)
  • K171 Hands-Free Liftgate Sensor Control Module (TC2)
55 EMPTY F55RA Fuse -
  • Not Used
56 UGDO RAIN F56RA Fuse 5A
  • S25 Garage Door Opener (UG1)
57 THEFT DTRNT F57RA Fuse 5A
  • A98 Front Overhead Console Assembly
Circuit Breakers
1 EMPTY F1RB Fuse -
  • Not Used
2 EMPTY F2RB Fuse -
  • Not Used
3 APO REAR F3RB Fuse 15A
  • X80C Accessory Power Receptacle - Cargo
Relays
K1 EMPTY KR5 Rear Defogger Relay -
  • Not Used
K2 EMPTY KR23A Fuel Pump Relay -
  • Not Used
Important: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block
- - KR4B Outside Rearview Mirror Heater Relay -
  • A9A Outside Rearview Mirror - Driver
  • A9B Outside Rearview Mirror - Passenger
  • E17D Outside Rearview Mirror Glass - Driver
  • E17P Outside Rearview Mirror Glass - Passenger
- - KR5 Rear Defogger Relay -
  • REAR DEFOG/F8RA
  • GBS/F48RA
- - KR61 Trailer Backup Lamps Relay -
  • X88 Trailer Connector
- - KR95A Liftgate Unlatch Relay -
  • M30 Liftgate Latch
- - KR104B Battery Saver Relay 2 -
  • SADS/F52RA
  • RPA/F53RA
  • EOCM SBZA/F54RA
  • UGDO RAIN/F56RA
  • THEFT DTRNT/F57UA
- - KR114 Door Dead Lock Relay -
  • A23D Door Latch Assembly - Driver
- - KR124 Trailer Ignition Power Relay -
  • EMPTY/F21RA
- - KR132 Fuel Fill Door Lock Relay -
  • M97 Fuel Fill Door Lock Actuator (N08)
Important: Items listed below are Vehicle Access system diagnostic test points.
TP1 TEST POINT CKT 6800 TP1 -
  • KR132 Fuel Fill Door Lock Relay
TP2 TEST POINT CKT 5911 TP2 -
  • KR114 Door Dead Lock Relay
TP3 TEST POINT CKT 5910 TP3 -
  • KR114 Door Dead Lock Relay
TP4 TEST POINT CKT 195 TP4 -
  • KR114 Door Dead Lock Relay
TP8 TEST POINT CKT 6128 TP8 -
  • KR95A Liftgate Unlatch Relay
Important: Items listed below are Mirrors system diagnostic test points.
TP5 TEST POINT CKT 2267 TP5 -
  • KR4B Outside Rearview Mirror Heater Relay
TP6 TEST POINT CKT 295 TP6 -
  • KR4B Outside Rearview Mirror Heater Relay
TP7 TEST POINT CKT 2267 TP7 -
  • KR4B Outside Rearview Mirror Heater Relay
Important: Items listed below are not used.
TP9 TEST POINT CKT - TP9 -
  • Not Used
