Section 322 (Component Locator - Electrical Center Identification Views)
>>
Electrical Center Identification Views
>>
X53A Fuse Block - Rear Body Label
X53A Fuse Block - Rear Body Label
WARNING:
This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

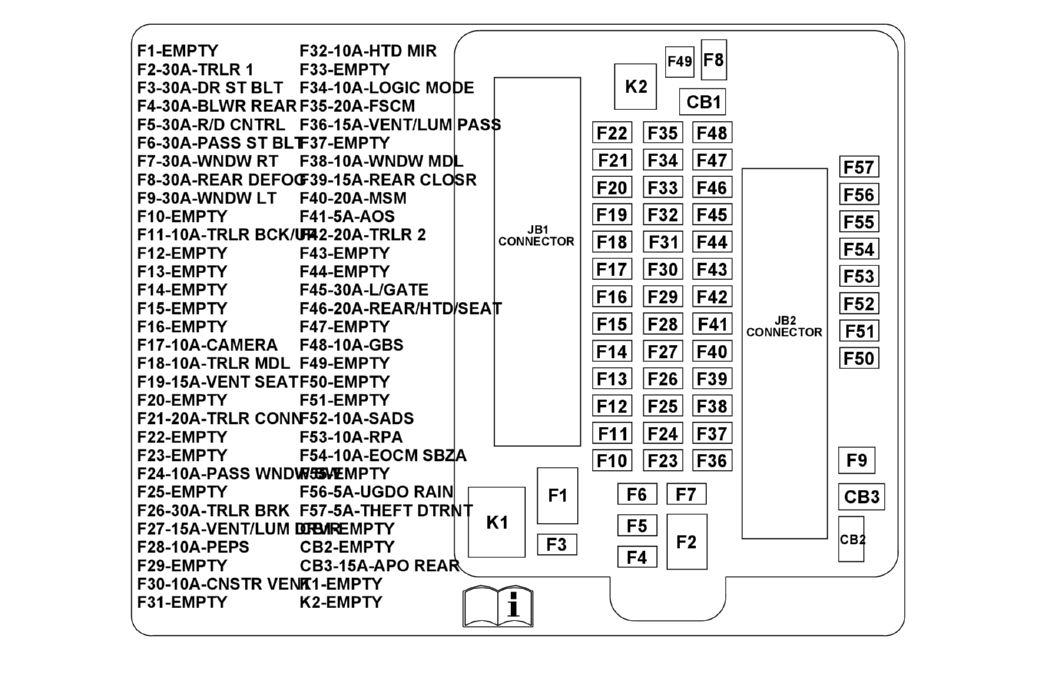

Fig 1: X53A Fuse Block - Rear Body Label
Courtesy of GENERAL MOTORS COMPANY
