Section 322 (Component Locator - Electrical Center Identification Views)
>>
Electrical Center Identification Views
>>
X51A Fuse Block - Instrument Panel Label
X51A Fuse Block - Instrument Panel Label
WARNING:
This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

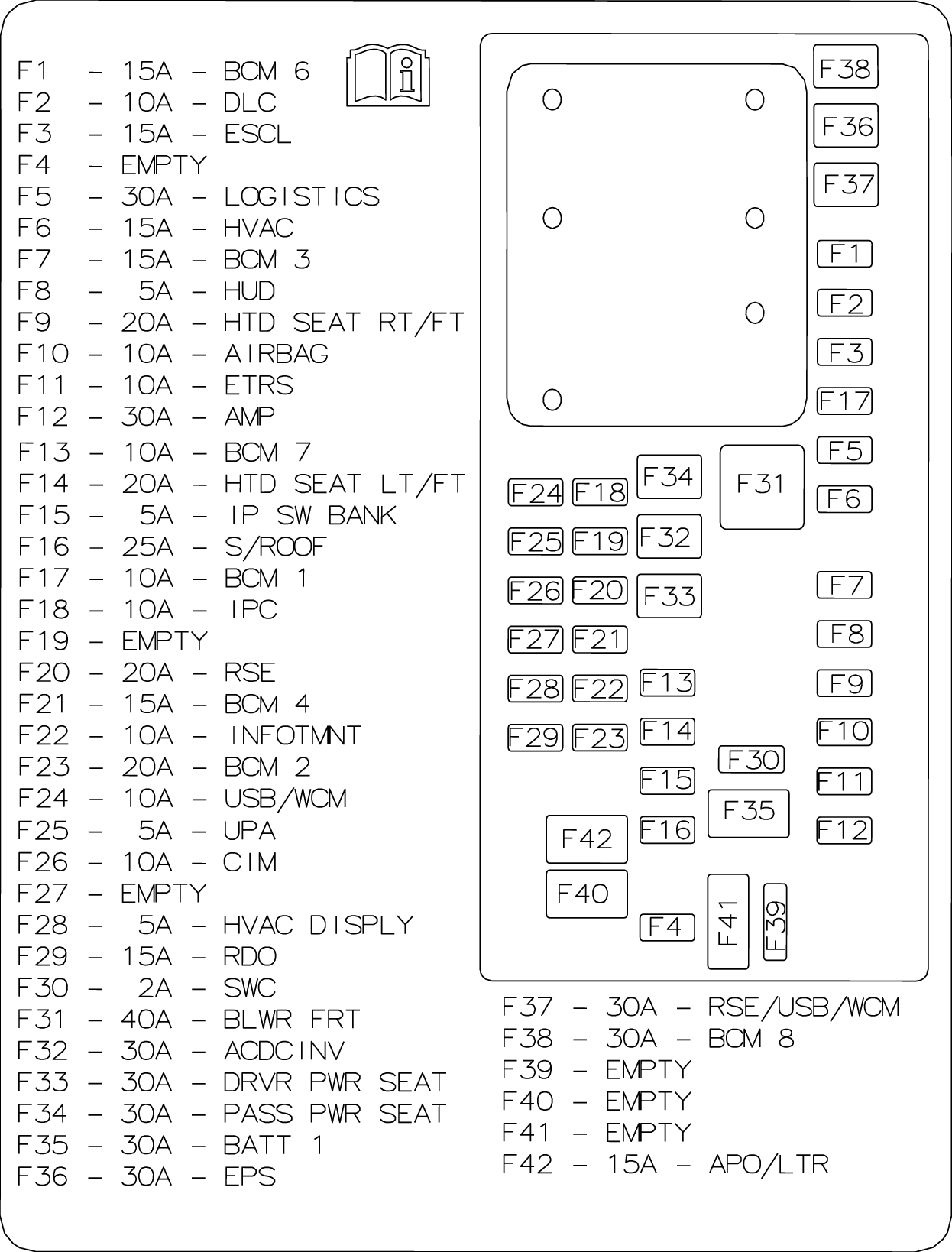

Fig 1: X51A Fuse Block - Instrument Panel Label
Courtesy of GENERAL MOTORS COMPANY
