X50A Fuse Block - Underhood Label

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

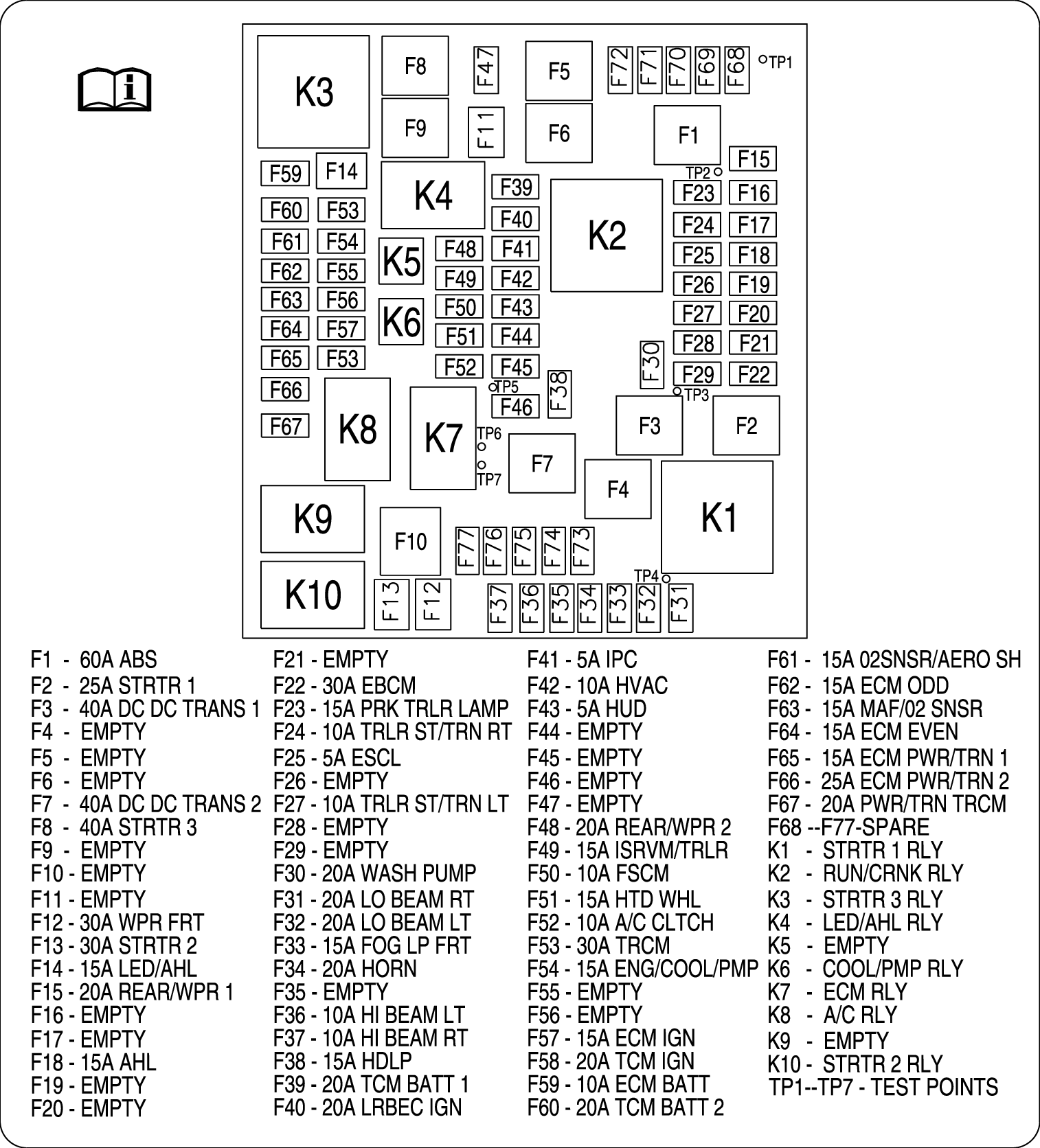

Fig 1: X50A Fuse Block - Underhood Label
GM4293755Courtesy of GENERAL MOTORS COMPANY
