Charging (LCV+KL9)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

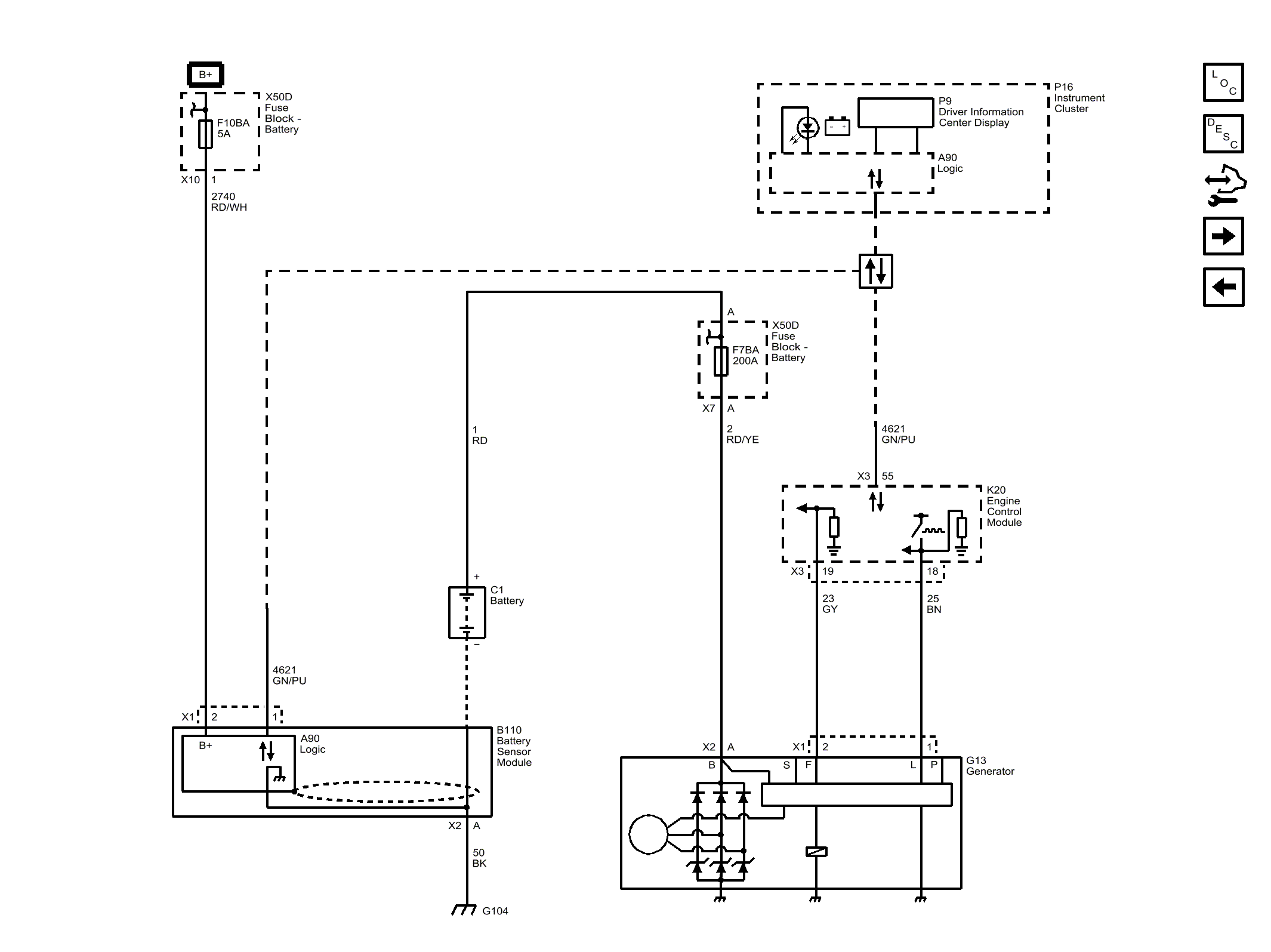

Fig 1: Charging (LCV+KL9)
GM4373129Courtesy of GENERAL MOTORS COMPANY
