Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

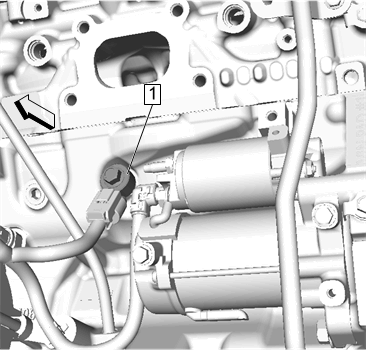

Fig 1: Electrical Connector And Starter

Courtesy of GENERAL MOTORS COMPANY

Connect Electrical Connector (1)
Install the starter. (2)

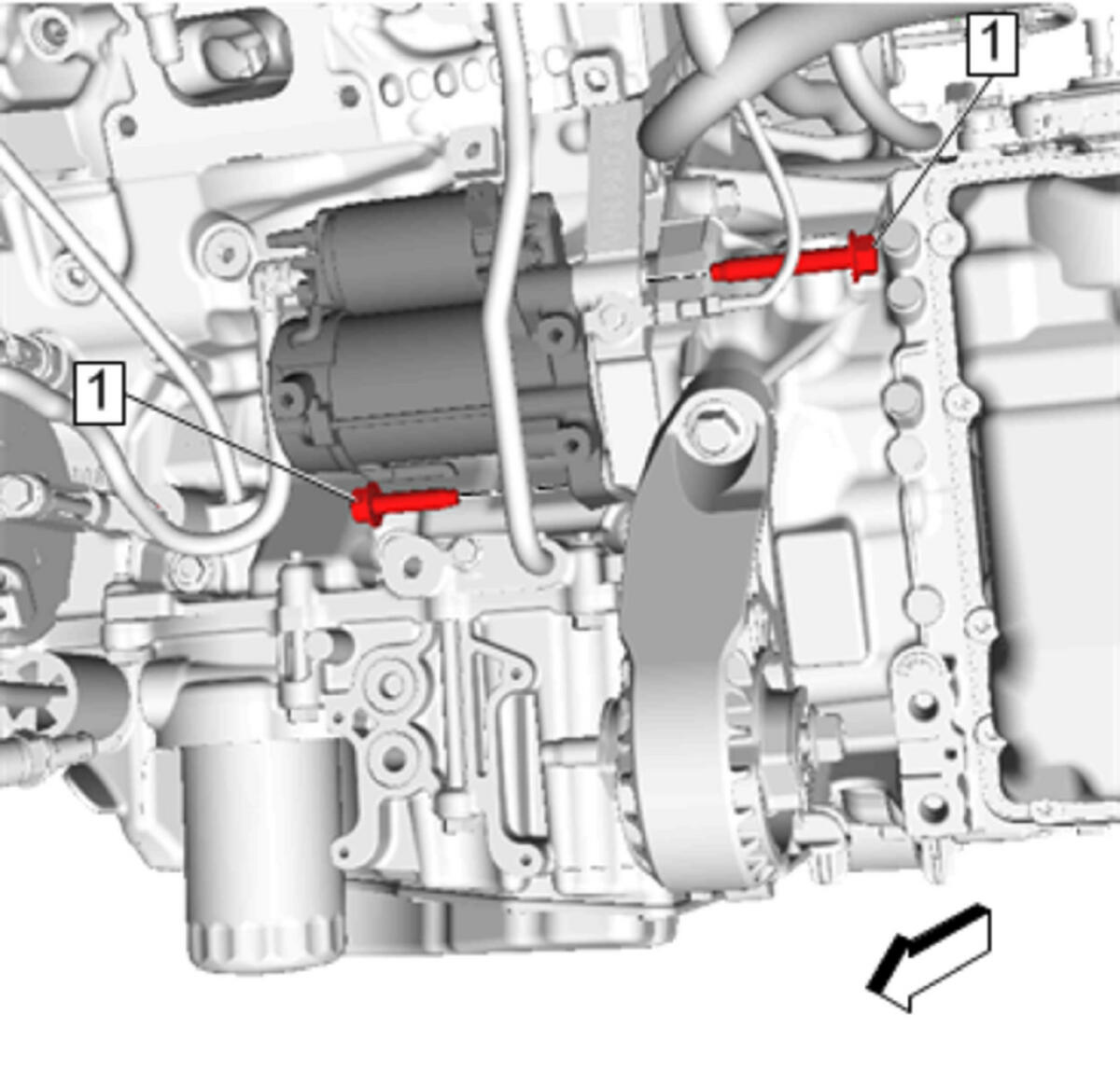

Fig 2: Starter Mounting Bolt

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution

Install Starter Mounting Bolt (1) and tighten 58 N.m (43 lb ft)

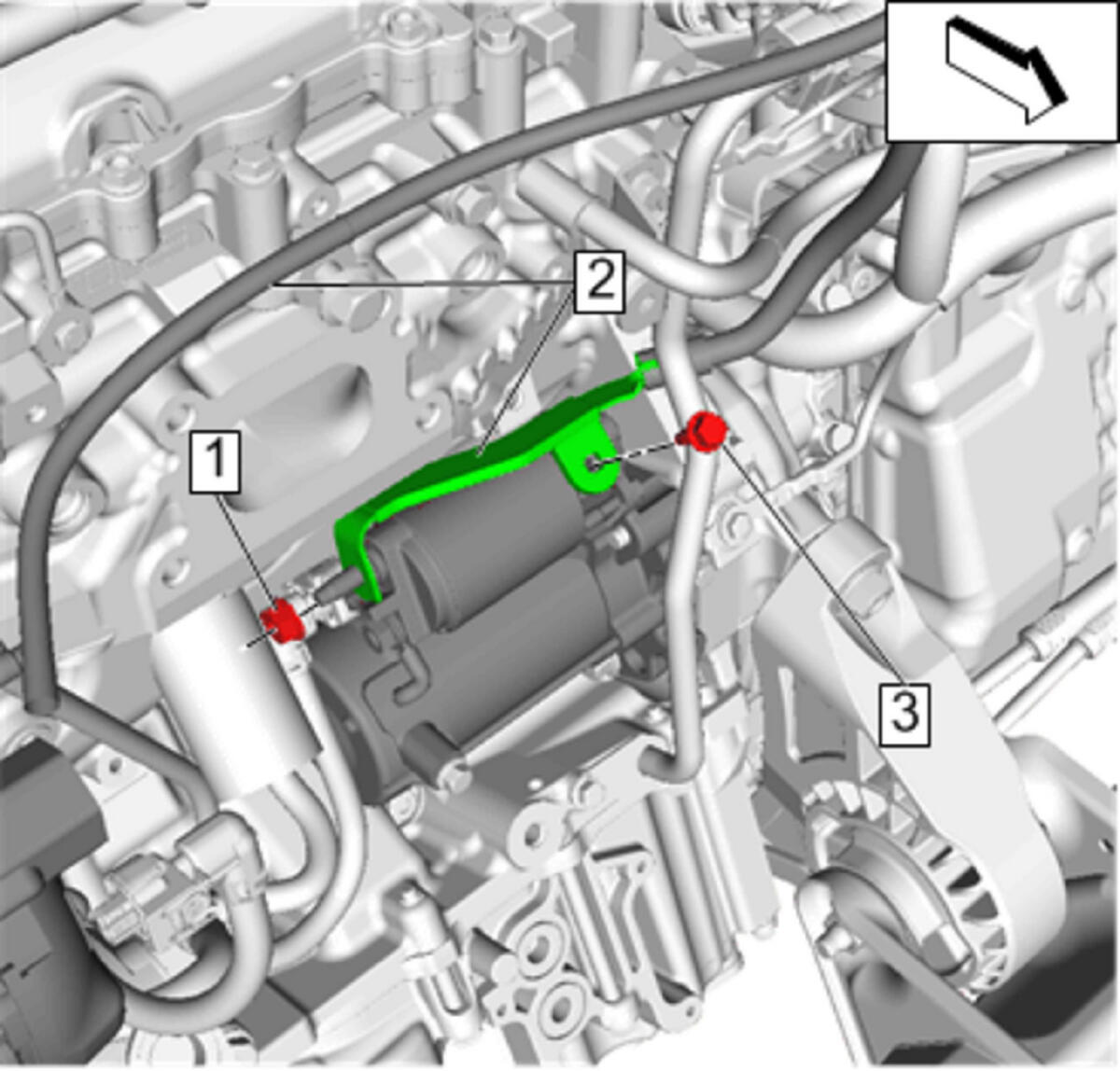

Fig 3: Starter Solenoid Cable Nut And Battery Positive Cable Conduit Fastener

Courtesy of GENERAL MOTORS COMPANY

Install Battery Positive Cable (2)
Install Starter Solenoid Cable Nut (1) and tighten 12.5 N.m (111 lb in)
Install Battery Positive Cable Conduit Fastener (3) and tighten 9 N.m (80 lb in)

Fig 4: Knock Sensor

Courtesy of GENERAL MOTORS COMPANY

Install Knock Sensor- Bank 2 (2) Knock Sensor Replacement - Bank 2

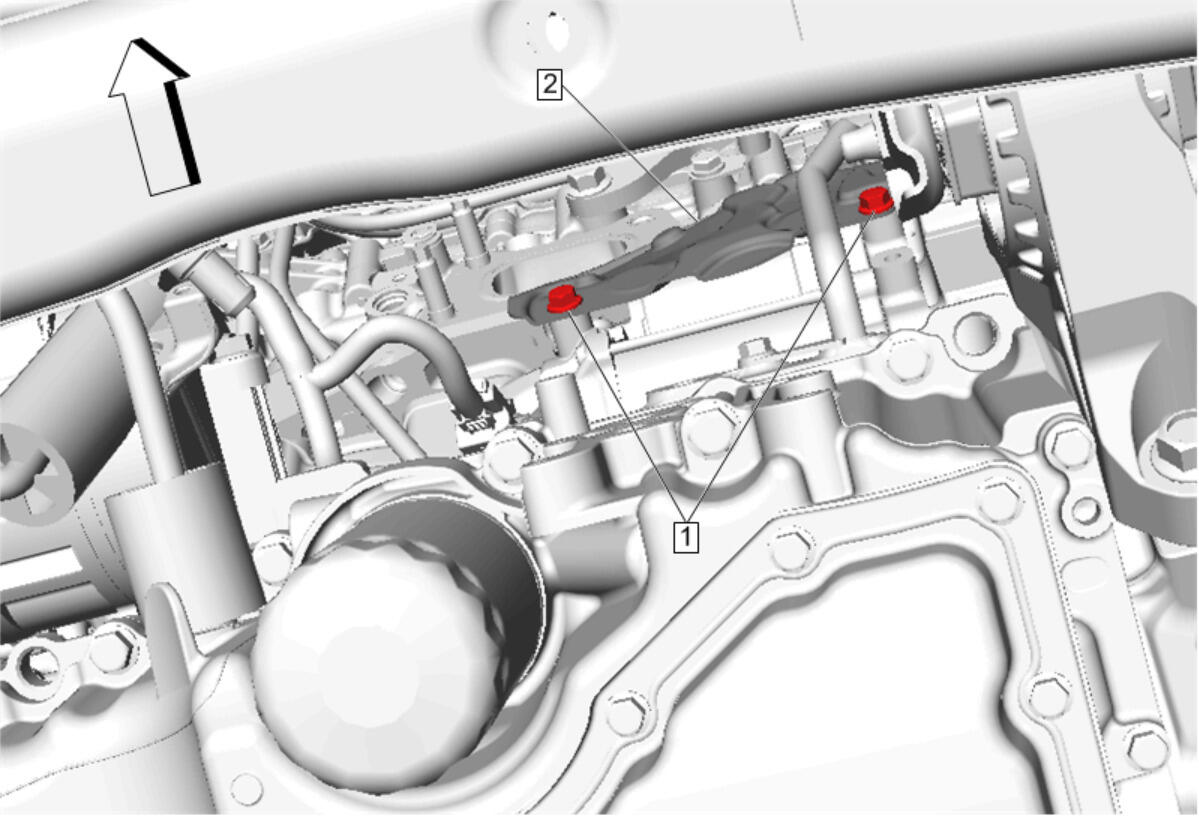

Fig 5: Starter Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Install Starter Heat Shield (2)Starter Shield Replacement (LGX)
Knock Sensor Warm Up Three-Way Catalytic Converter Warm Up Three-Way Catalytic Converter Replacement (Bank 1, LGX)Warm Up Three-Way Catalytic Converter Replacement (Bank 2, LGX)
Lower the vehicle.
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)
