Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)

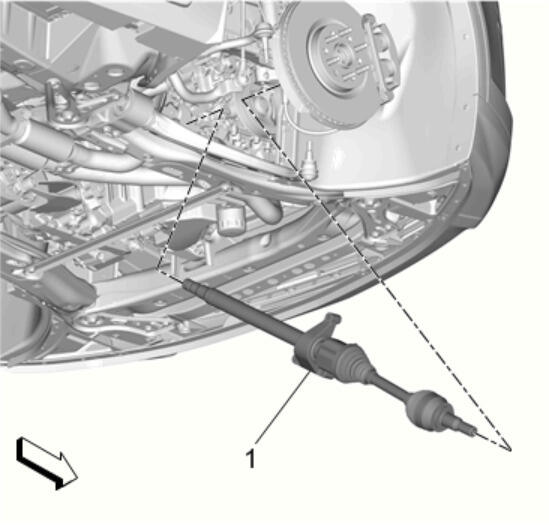

    2. Fig 1: Wheel Drive Shaft
    GM4297228Courtesy of GENERAL MOTORS COMPANY
  2. Remove Front Wheel Drive Shaft (1)Front Wheel Drive Shaft Replacement - Right Side (FWD)
    3. Fig 2: Battery Positive Cable And Nut
    GM4377337Courtesy of GENERAL MOTORS COMPANY
  3. Remove Battery Positive Cable Nut (2)
  4. Remove Battery Positive Cable (1)

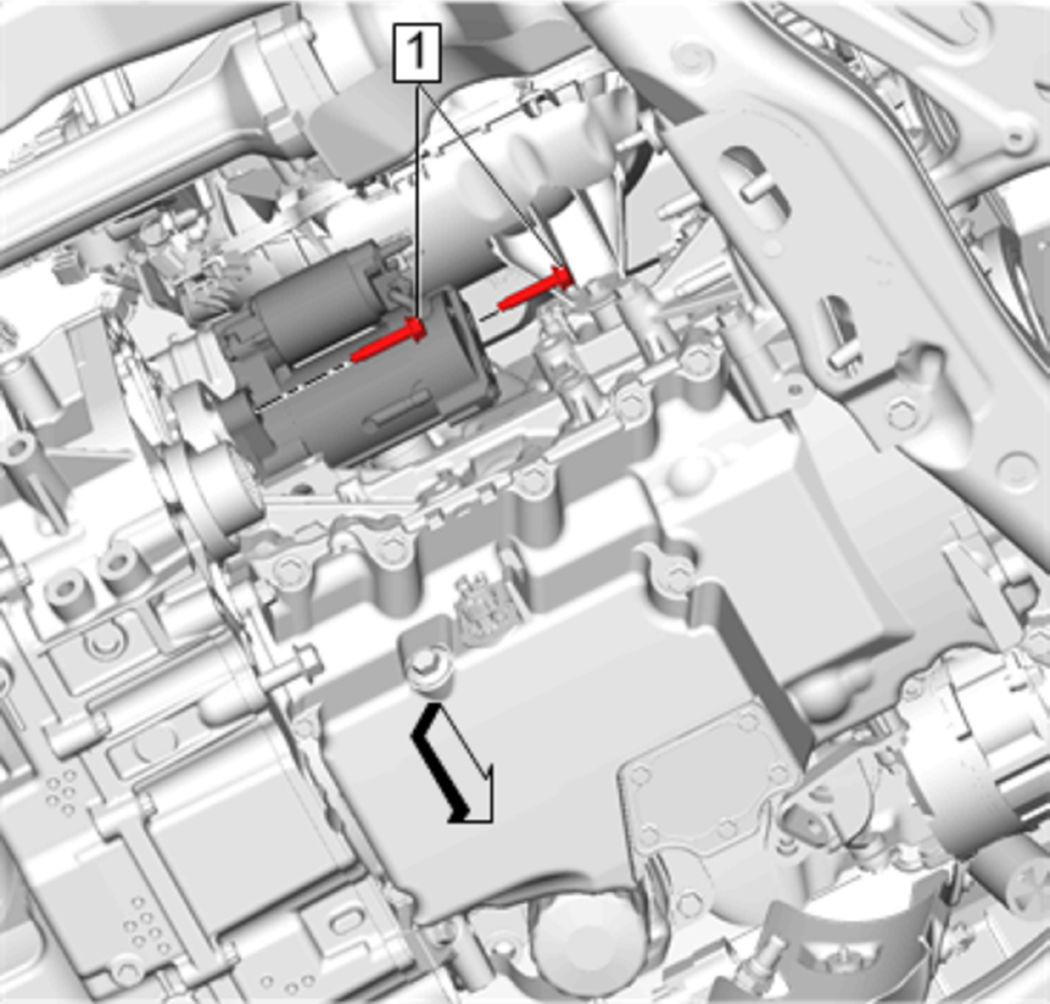

    5. Fig 3: Starter Mounting Bolt
    GM4377338Courtesy of GENERAL MOTORS COMPANY
  5. Remove Starter Mounting Bolt (1)

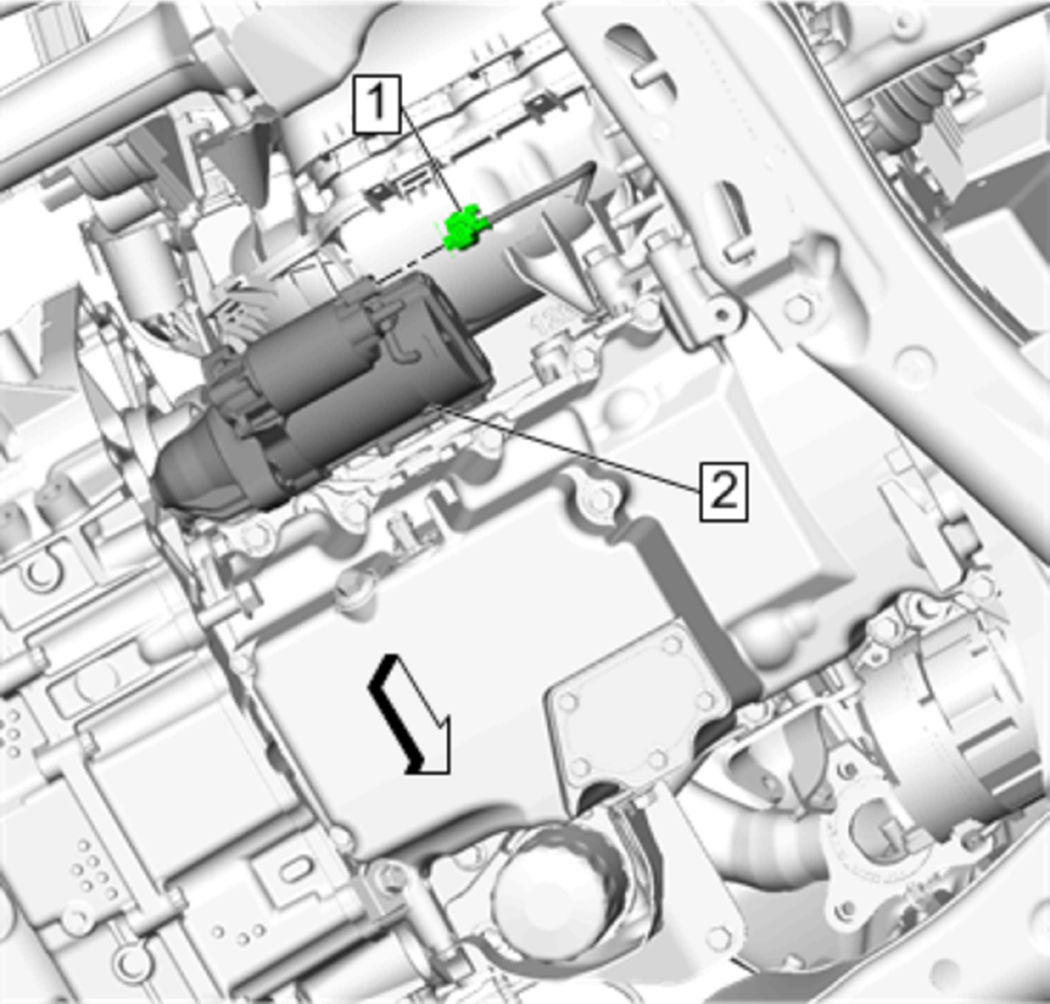

    6. Fig 4: Electrical Connector And Starter
    GM4377339Courtesy of GENERAL MOTORS COMPANY
  6. Remove Starter (2)
  7. Disconnect Electrical Connector (1)
