Multifunction Power Supply Converter Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

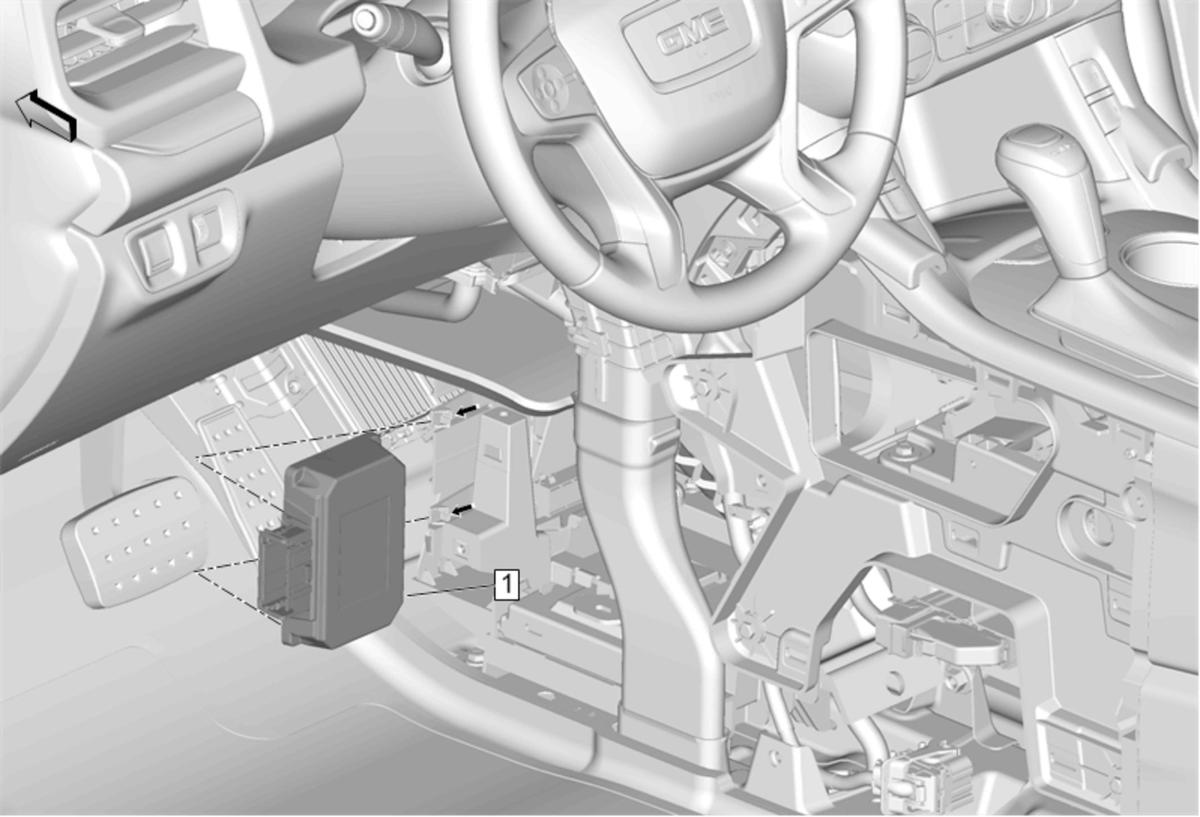

Fig 1: Multifunction Power Supply Converter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Left Side
1	Multifunction Power Supply Converter Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Front Floor Console Extension Panel Replacement - Left Side

Multifunction Power Supply Converter

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
