Removal Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)
- Remove Air Cleaner Assembly (1) Air Cleaner Assembly Replacement
- Remove Air Cleaner Outlet Front Duct (2) Air Cleaner Outlet Front Duct Replacement
- Raise and support the vehicle. Lifting and Jacking the Vehicle

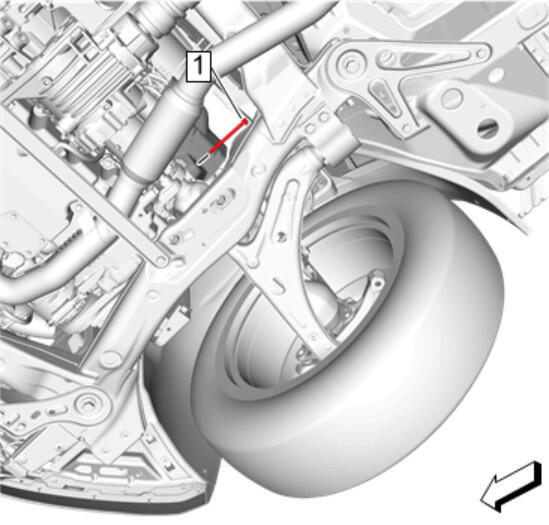

- Remove Generator Bolt (1)
- Lower the vehicle.
- Remove Generator Bolt (1)
- Remove Generator Nut (2)
- Remove Generator Splash Shield (3)
