Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

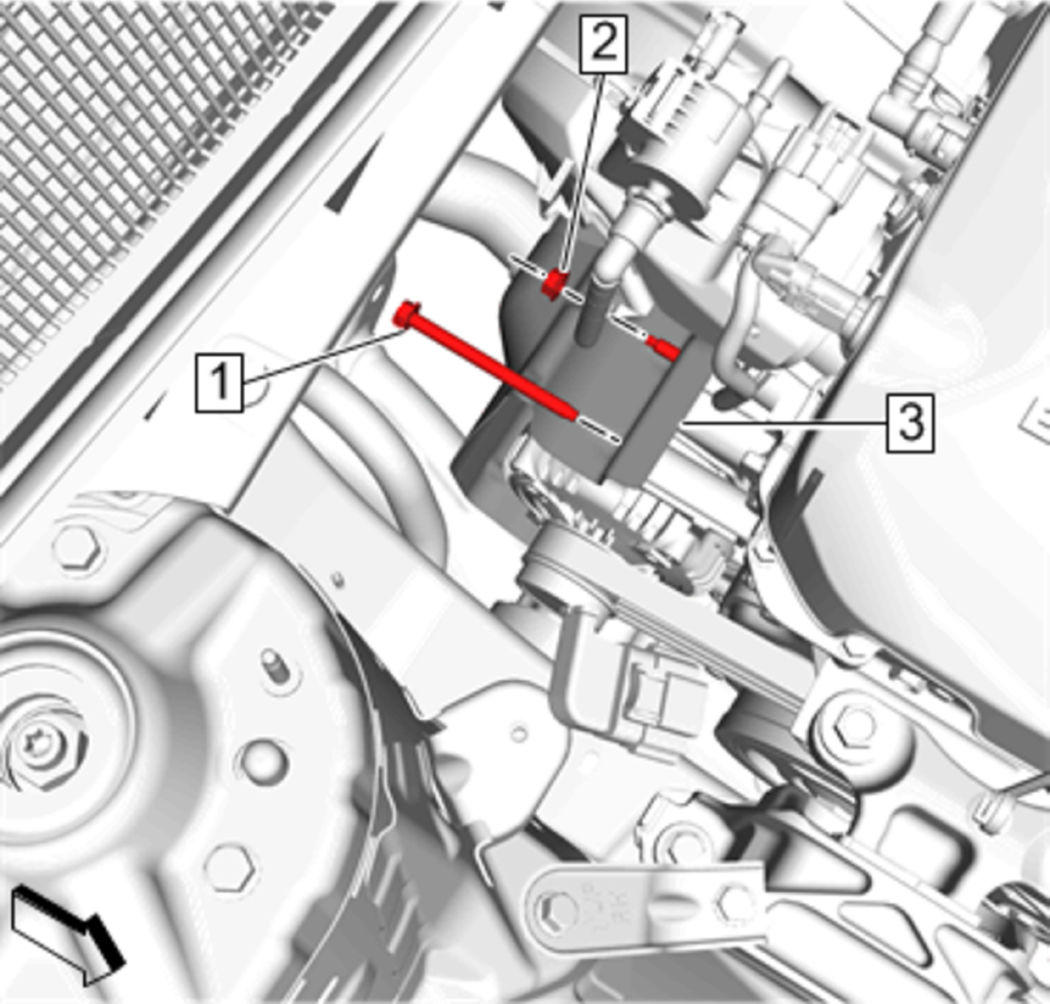

    Fig 1: Generator Shield
    GM4573536Courtesy of GENERAL MOTORS COMPANY
  1. Remove Generator Shield (3) Generator Shield Replacement

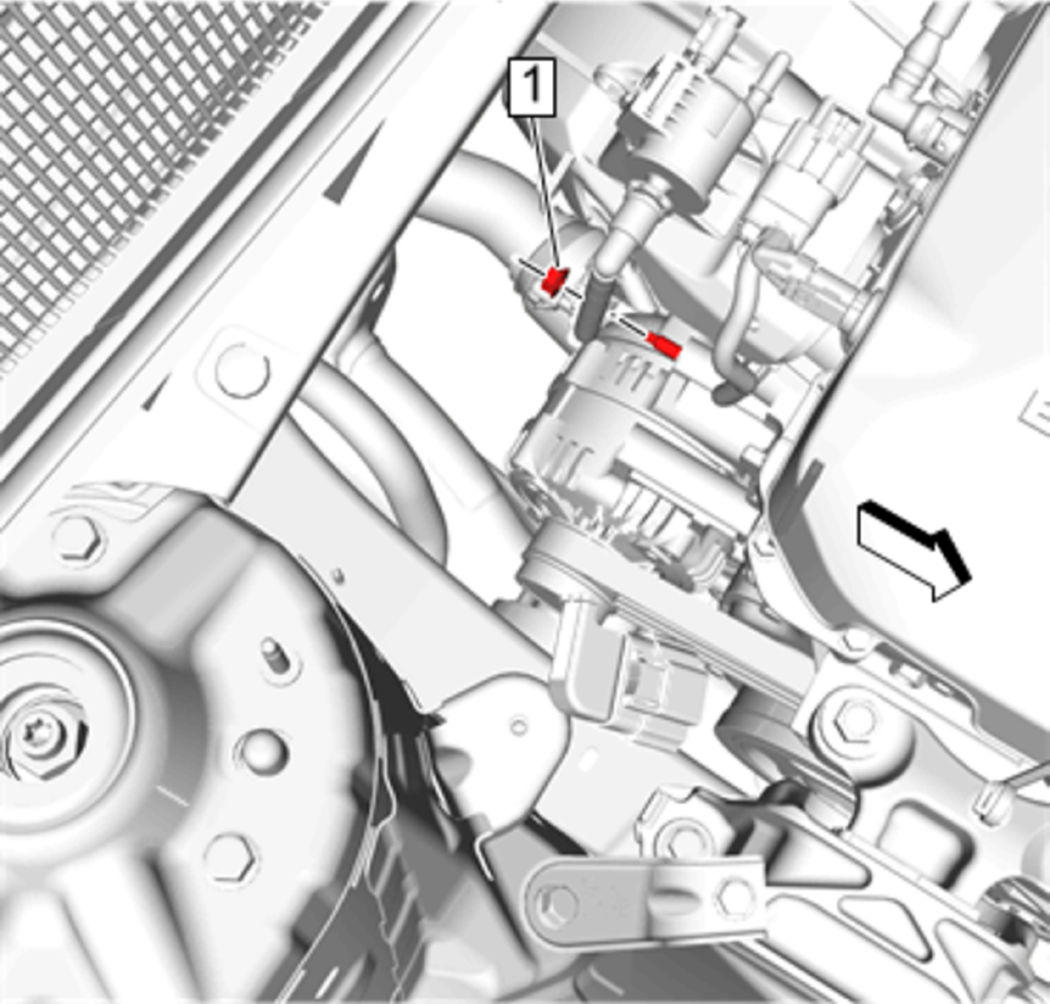

    2. Fig 2: Generator Nut
    GM4573544Courtesy of GENERAL MOTORS COMPANY
  2. Install the generator nut (1) and finger tighten.

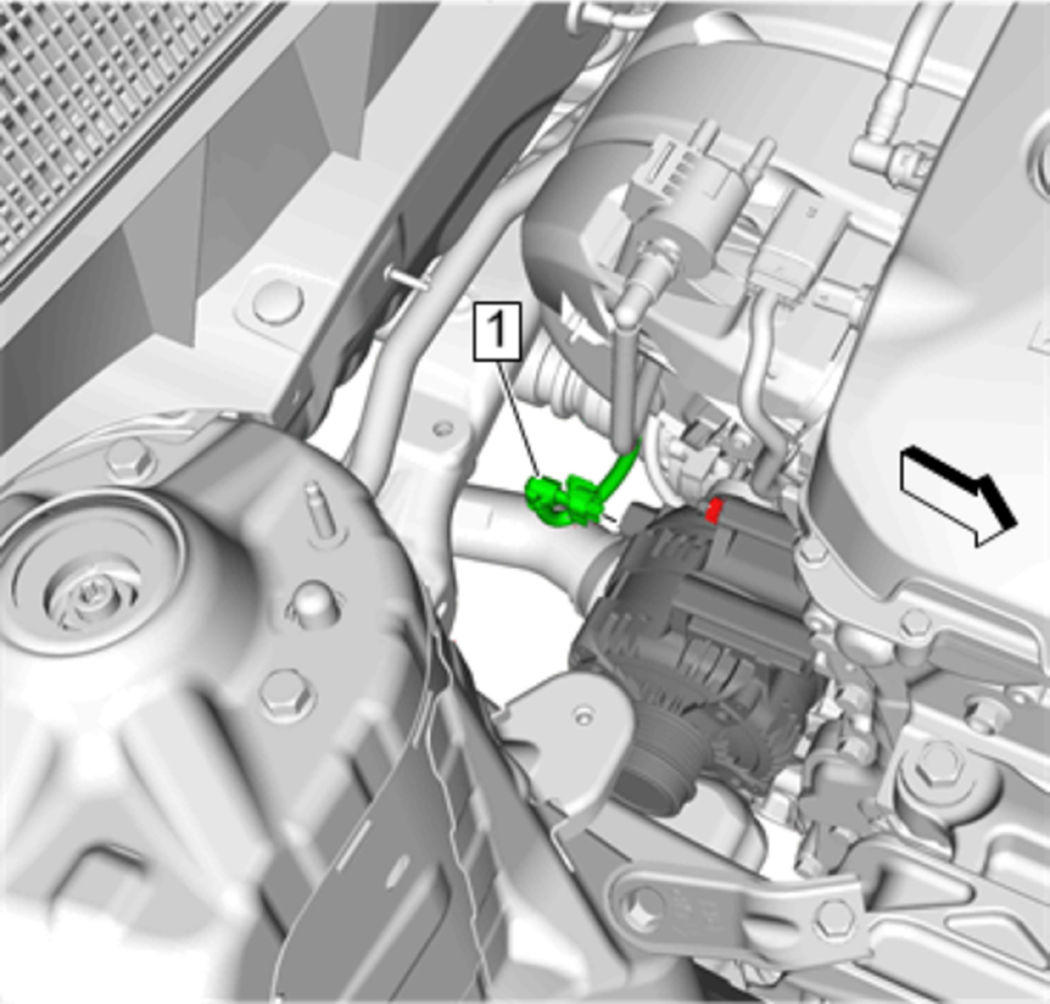

    3. Fig 3: Electrical Connector
    GM4573553Courtesy of GENERAL MOTORS COMPANY
  3. Electrical Connector (1) → Disconnect
    4. Fig 4: Drive Belt
    GM4364170Courtesy of GENERAL MOTORS COMPANY
  4. Remove Drive Belt (1) Drive Belt Replacement
  5. Raise and support the vehicle. Lifting and Jacking the Vehicle
    6. Fig 5: Protective Cap And Generator Nut
    GM4577875Courtesy of GENERAL MOTORS COMPANY
  6. Remove Protective Cap (1)
  7. Remove Generator Nut (2)
    8. NOTE:

    Anti-rotation tab is in the 12 o'clock position (arrow).

  8. Remove Battery Positive Cable (3)

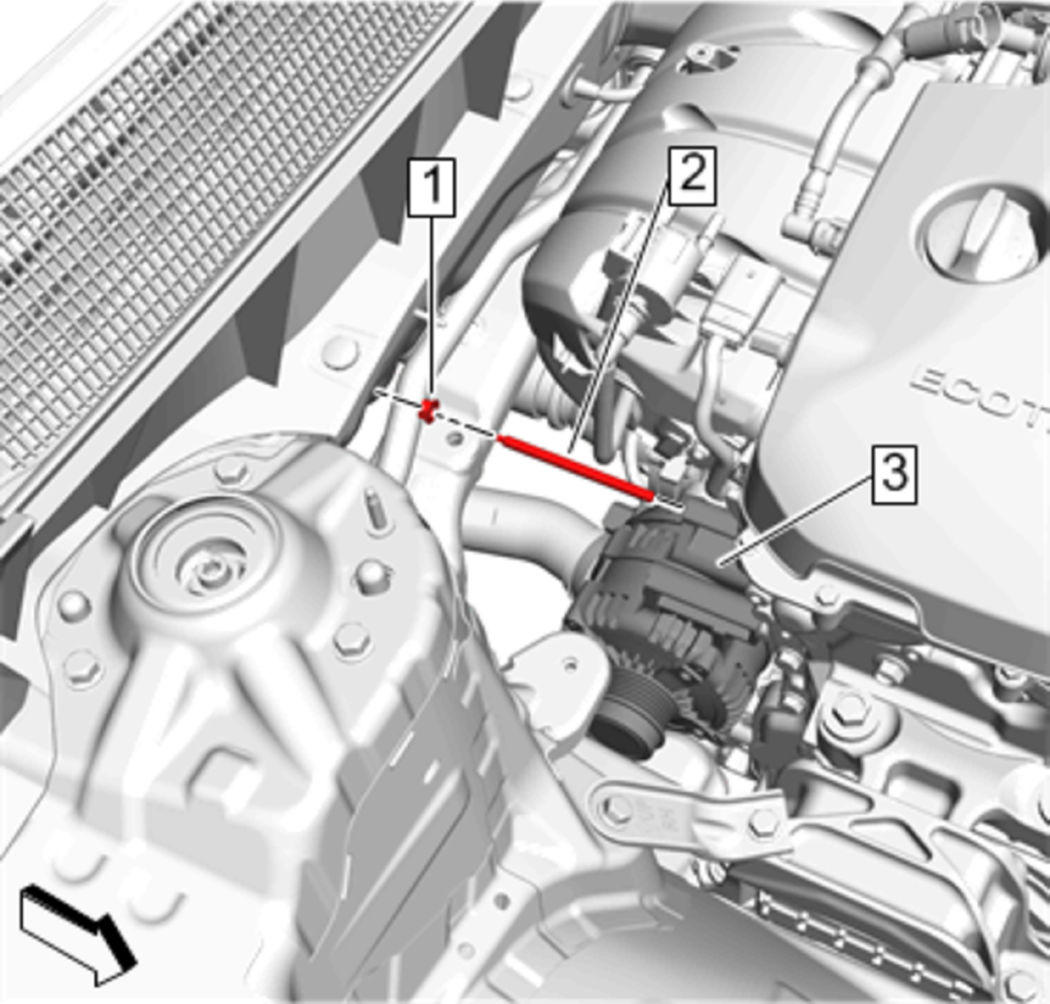

    9. Fig 6: Generator And Nut
    GM4573557Courtesy of GENERAL MOTORS COMPANY
  9. Remove Generator Nut (1)
  10. If necessary, remove the generator mounting stud (2).
  11. Remove Generator (3)
