Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)

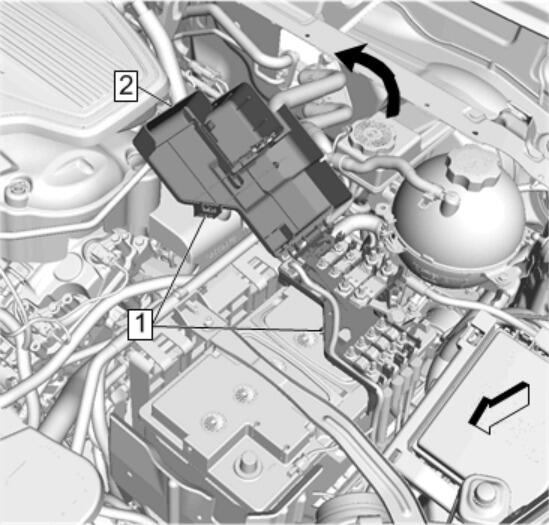

    2. Fig 1: Battery Distribution Fuse Block Retaining Tab
    GM4285233Courtesy of GENERAL MOTORS COMPANY
  2. Disengage Battery Distribution Fuse Block Retaining Tab
  3. Open the battery fuse block cover.

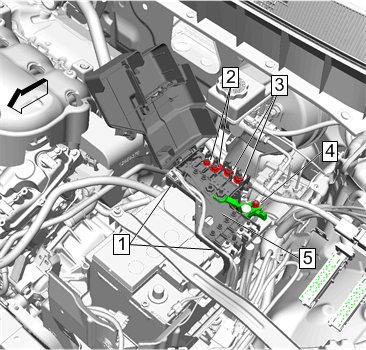

    4. Fig 2: Battery Positive Post Clamp Nut And Battery Distribution Fuse Block Retaining Tab
    GM4399949Courtesy of GENERAL MOTORS COMPANY
  4. Loosen Battery Positive Post Clamp Nut
  5. Disengage Battery Distribution Fuse Block Retaining Tab
  6. Reposition away Battery Distribution Engine Compartment Fuse Block

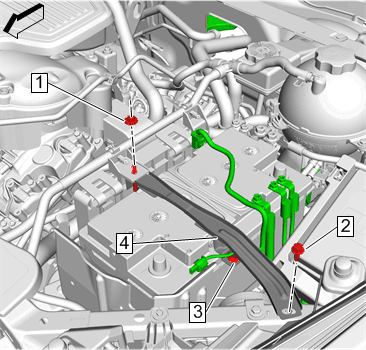

    7. Fig 3: Battery Hold Down Retainer Nut
    GM4285235Courtesy of GENERAL MOTORS COMPANY
  7. Remove Battery Hold Down Retainer Nut
  8. Remove the engine control module bracket. Engine Control Module Bracket Replacement
  9. Remove Battery Hold Down Retainer Bolt
  10. Remove Battery Hold Down Retainer

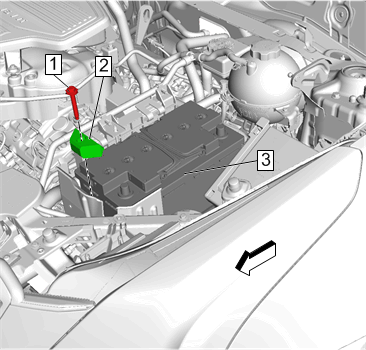

    11. Fig 4: Battery Hold Down Bolt And Battery
    GM4285236Courtesy of GENERAL MOTORS COMPANY
  11. Remove Battery Hold Down Bolt
  12. Remove Battery Hold Down Retainer
  13. Remove Battery
