Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

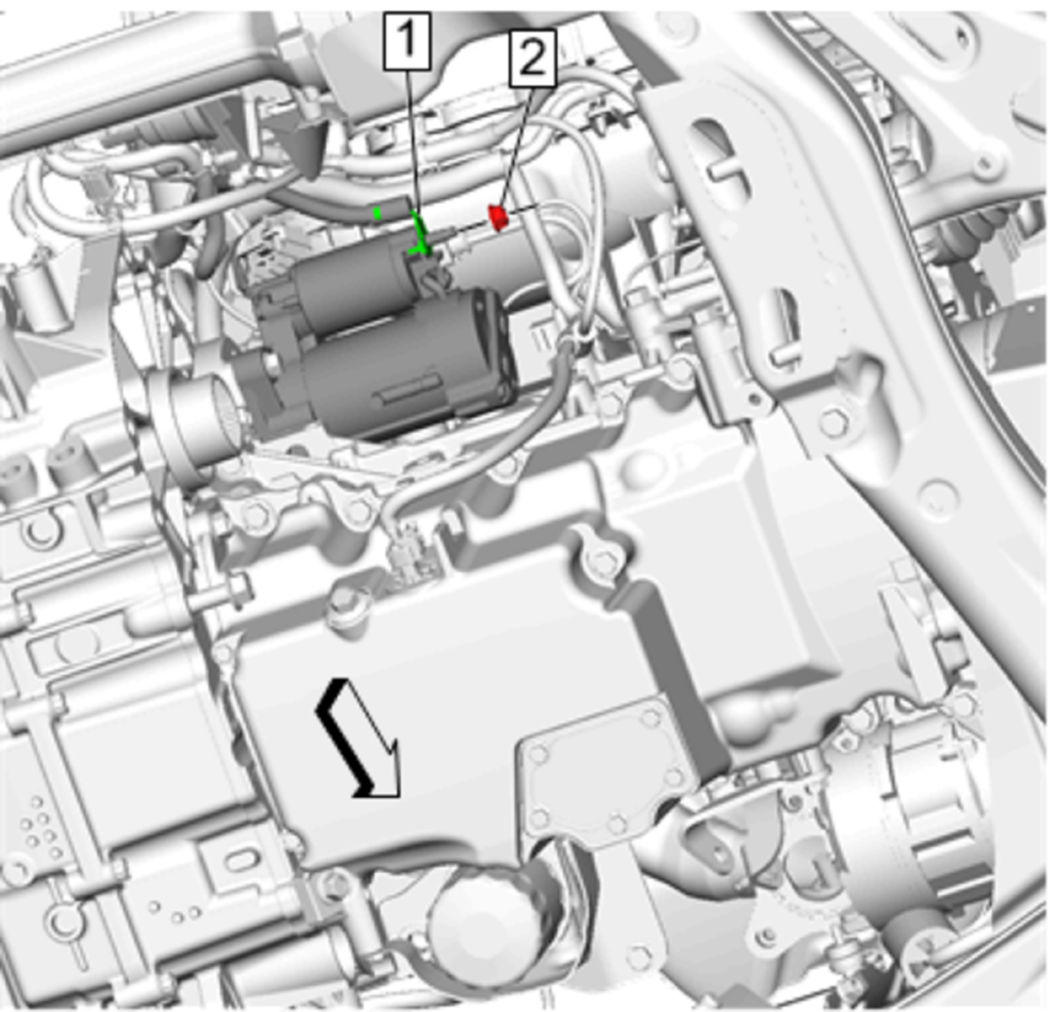

Fig 1: Electrical Connector

Courtesy of GENERAL MOTORS COMPANY

Connect Electrical Connector (1) @Power Steering Assist Motor (2)
Engage Retainer (4)

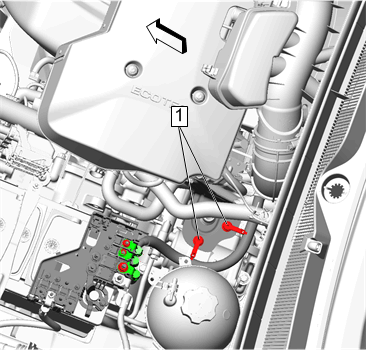

Fig 2: Engine Harness Retainers

Courtesy of GENERAL MOTORS COMPANY

Install Battery Negative Cable (1)

CAUTION:

Refer to Fastener Caution

Install Battery Negative Cable Ground Stud (2) and tighten 40 N.m (30 lb ft)
Engage Engine Harness Retainers (3)

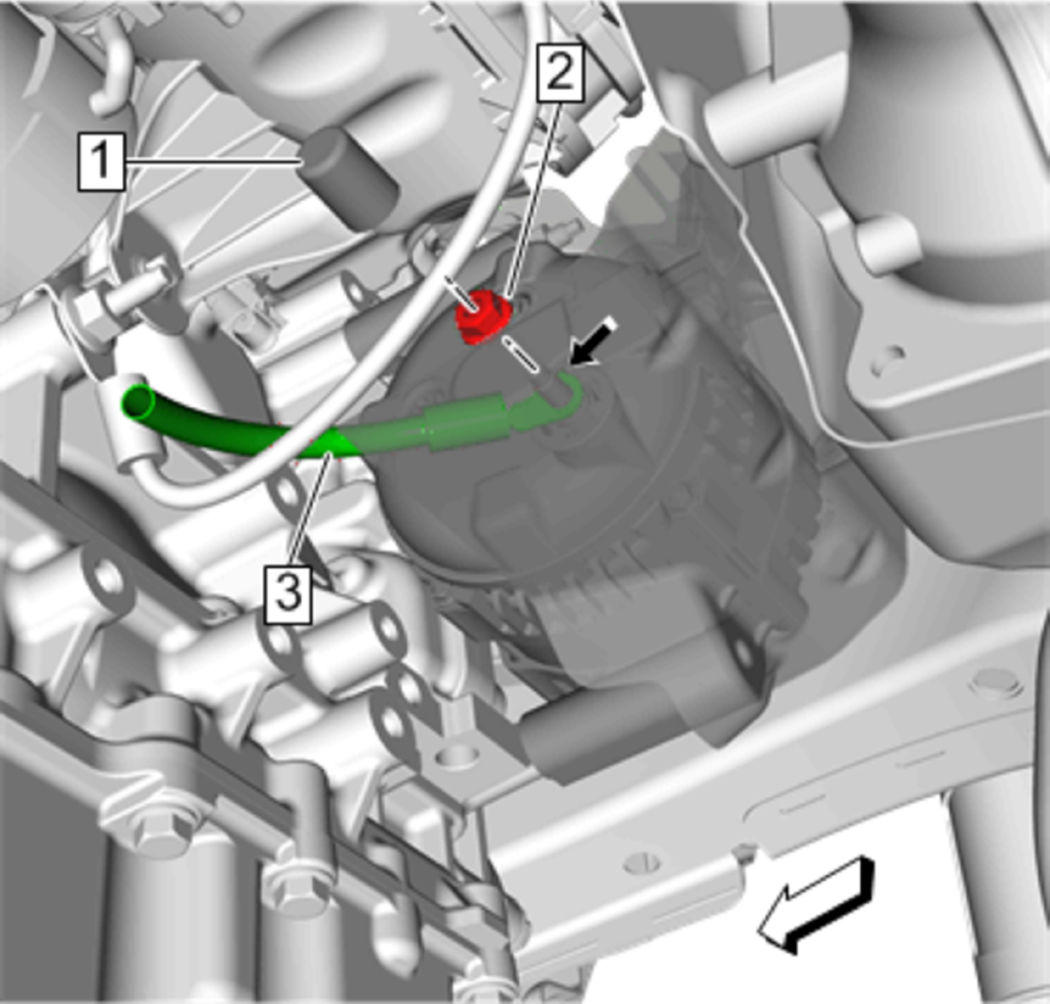

Fig 3: Protective Cap And Generator Nut

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Anti-rotation tab is in the 12 o'clock position (arrow).

Install Battery Positive Cable (3)
Install Generator Nut (2) and tighten 15 N.m (11 lb ft)
Install Protective Cap (1)

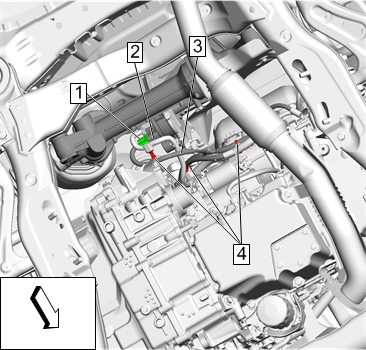

Fig 4: Battery Positive Cable And Nut

Courtesy of GENERAL MOTORS COMPANY

Install Battery Positive Cable (1)
Install Starter Solenoid Cable Nut (2) and tighten 13 N.m (115 lb in)

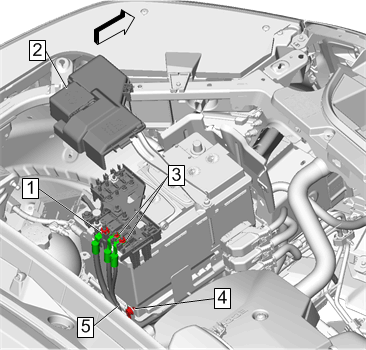

Fig 5: Battery Positive Cable Retainer

Courtesy of GENERAL MOTORS COMPANY

Engage Battery Positive Cable Retainer (4)

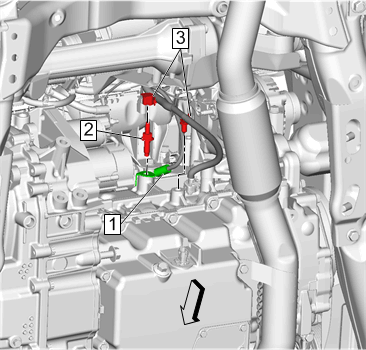

Fig 6: Battery Positive Cable Nut And Battery Distribution Engine Compartment Fuse Block Cover

Courtesy of GENERAL MOTORS COMPANY

Install Battery Positive Cable (5)
Install Battery Positive Cable Nut (1) nd tighten 12 N.m (106 lb in)
Install Battery Positive Cable Nut (3) and tighten 9 N.m (80 lb in)
Install Battery Distribution Engine Compartment Fuse Block Cover (2)
Install Battery Positive Cable Retainer (4)
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)
