Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

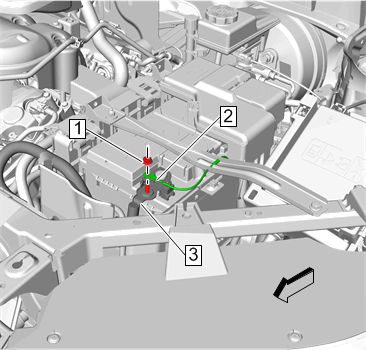

    Fig 1: Body Harness Ground Fastener
    GM4769958Courtesy of GENERAL MOTORS COMPANY
  1. Remove Body Harness Ground Fastener (1) @Battery Negative Cable (3)
  2. Remove Body Harness Terminal (2)
  3. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9)

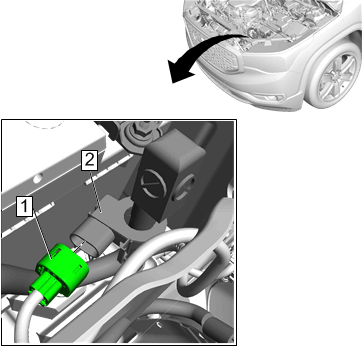

    4. Fig 2: Electrical Connector
    GM4376055Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect Electrical Connector (1) @Battery Current Sensor (2)
    5. Fig 3: Battery Negative Cable And Battery Negative Cable Frame Ground Fastener
    GM4285808Courtesy of GENERAL MOTORS COMPANY
  5. Remove Battery Negative Cable Frame Ground Fastener (1)
  6. Remove Battery Negative Cable (2)

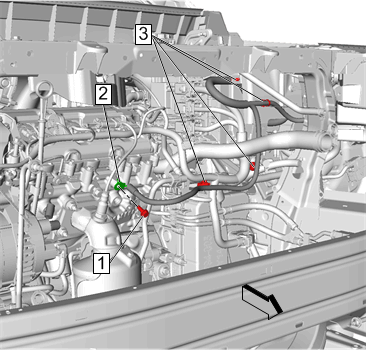

    7. Fig 4: Battery Negative Cable Ground Fastener
    GM4376056Courtesy of GENERAL MOTORS COMPANY
  7. Remove Battery Negative Cable Ground Fastener (1)
  8. Remove Battery Negative Cable (2)
  9. Disengage Retainer (3)
