Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

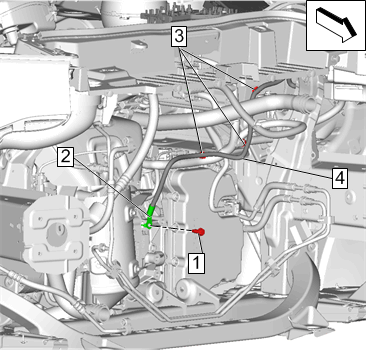

    Fig 1: Battery Negative Cable And Battery Negative Cable Ground Fastener
    GM4378468Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Negative Cable (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Battery Negative Cable Ground Fastener (1) and tighten 40 N.m (30 lb ft)
  3. Engage Retainer (3)

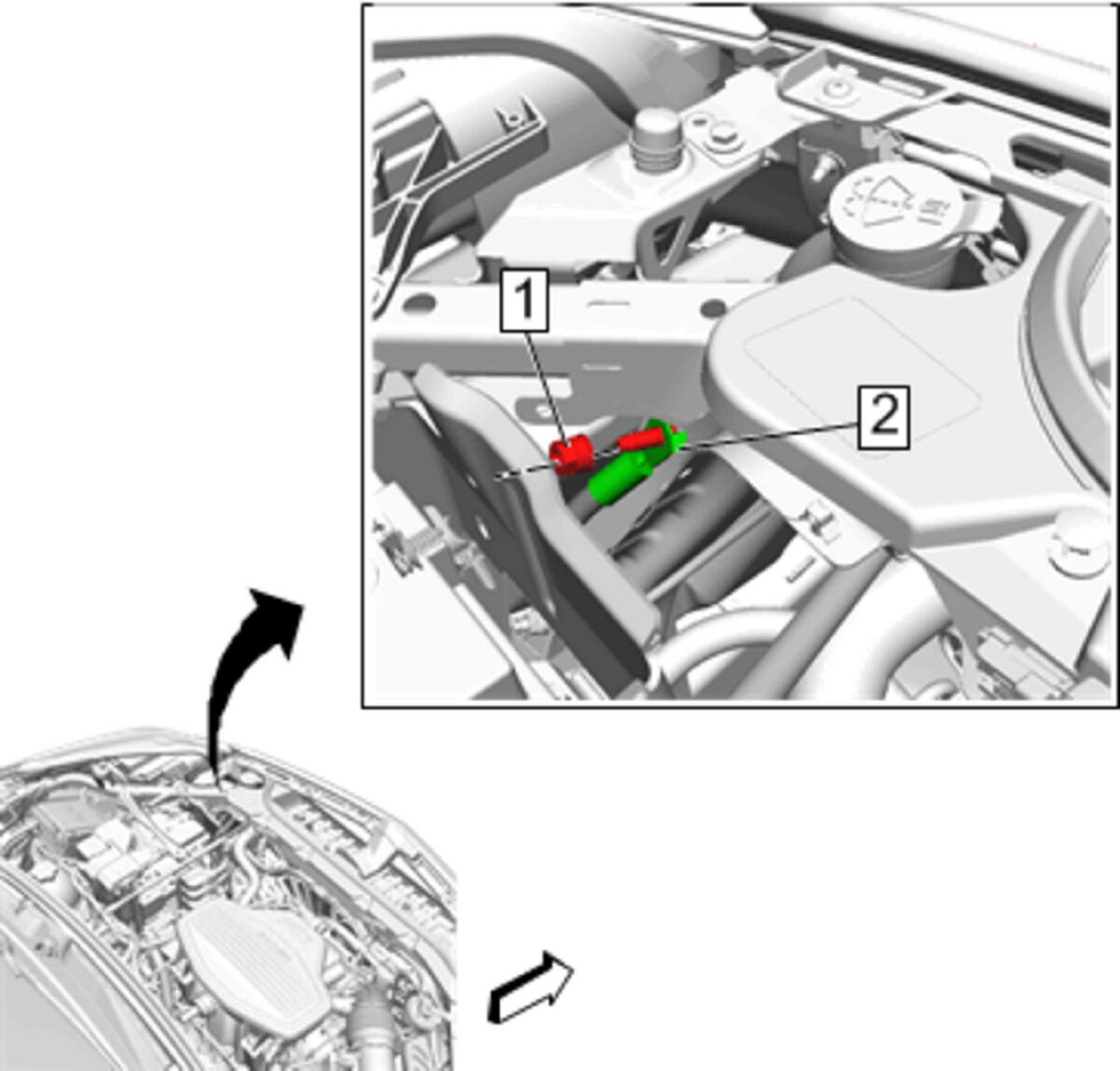

    4. Fig 2: Battery Negative Cable And Battery Negative Cable Frame Ground Fastener
    GM4285808Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Negative Cable (2)
  5. Install Battery Negative Cable Frame Ground Fastener (1) and tighten 9 N.m (80 lb in)

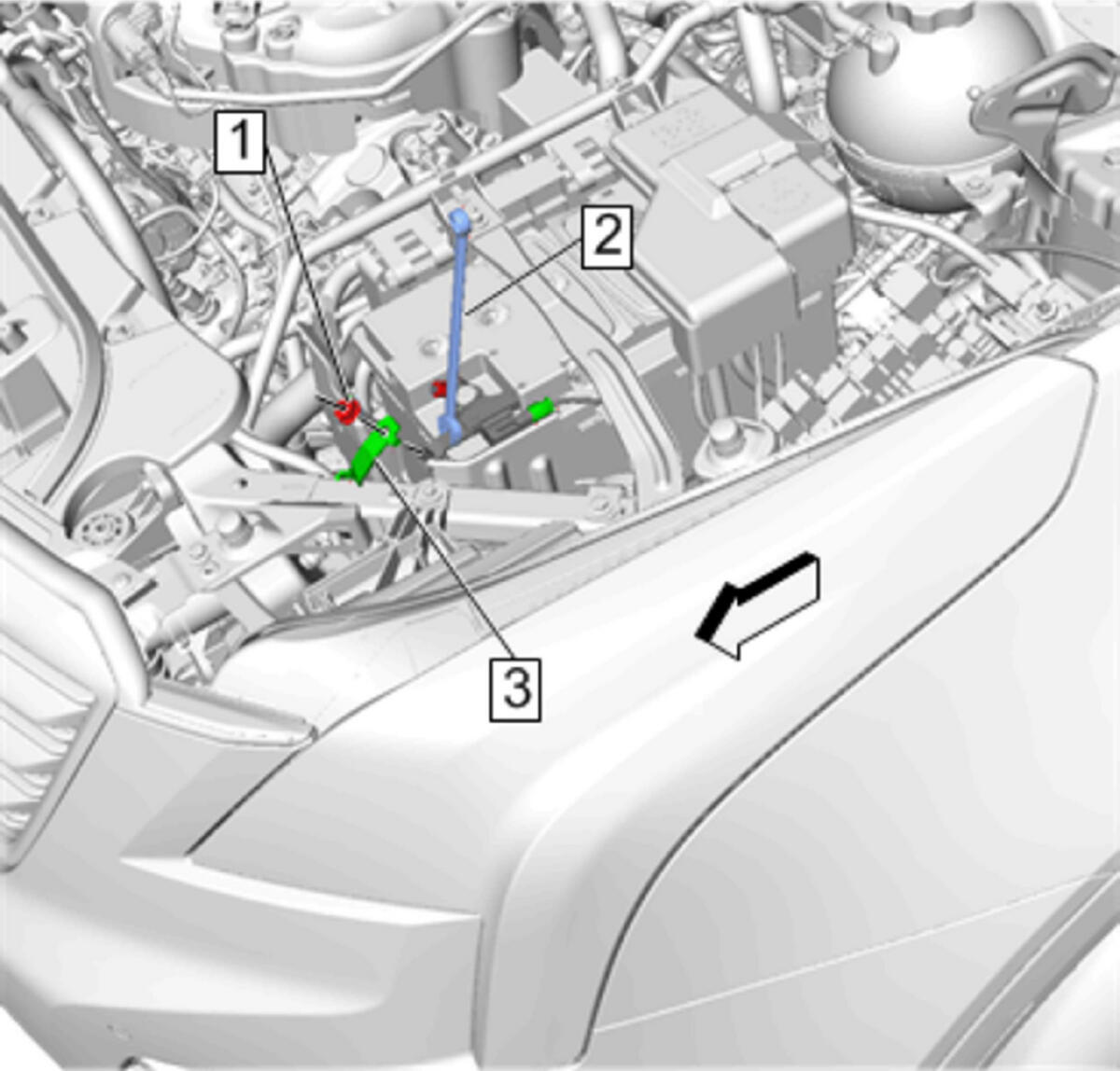

    6. Fig 3: Battery Negative Cable
    GM4285190Courtesy of GENERAL MOTORS COMPANY
  6. Install Battery Negative Cable (3)
  7. Use an open ended wrench to hold the battery sensor ground tab, while tightening the battery negative cable nut.(2)
  8. Install Battery Negative Cable Nut (1) and tighten 12 N.m (106 lb in)
