Section 317 (Supplemental Restraint System)
>>
Schematic Wiring Diagrams
>>
SIR Wiring Schematics
>>
Power, Ground, Passenger Presence, Serial Data and Indicators
Power, Ground, Passenger Presence, Serial Data and Indicators
WARNING:
This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

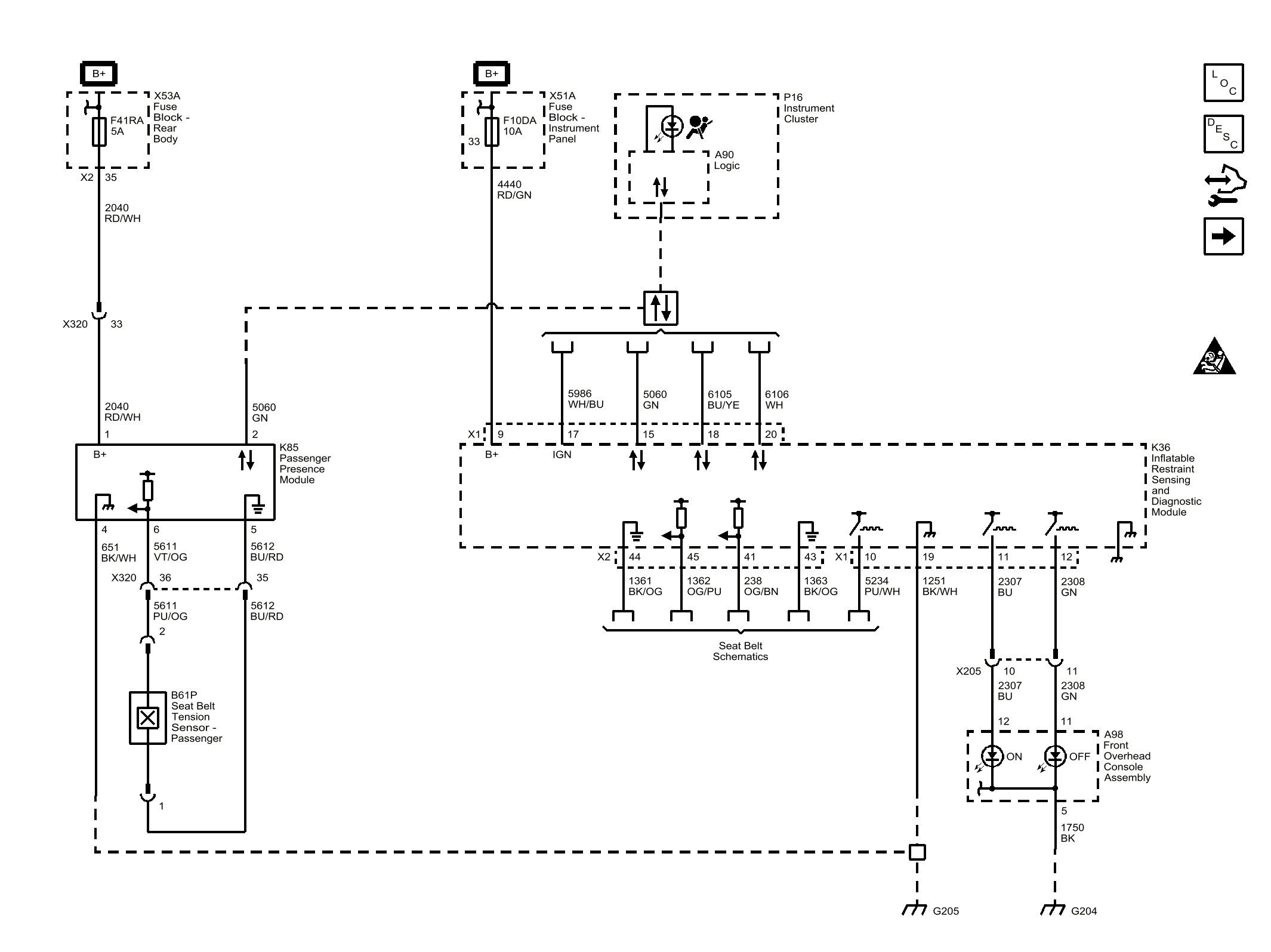

Fig 1: Power, Ground, Passenger Presence, Serial Data and Indicators
Courtesy of GENERAL MOTORS COMPANY
