Instrument Panel Airbag Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

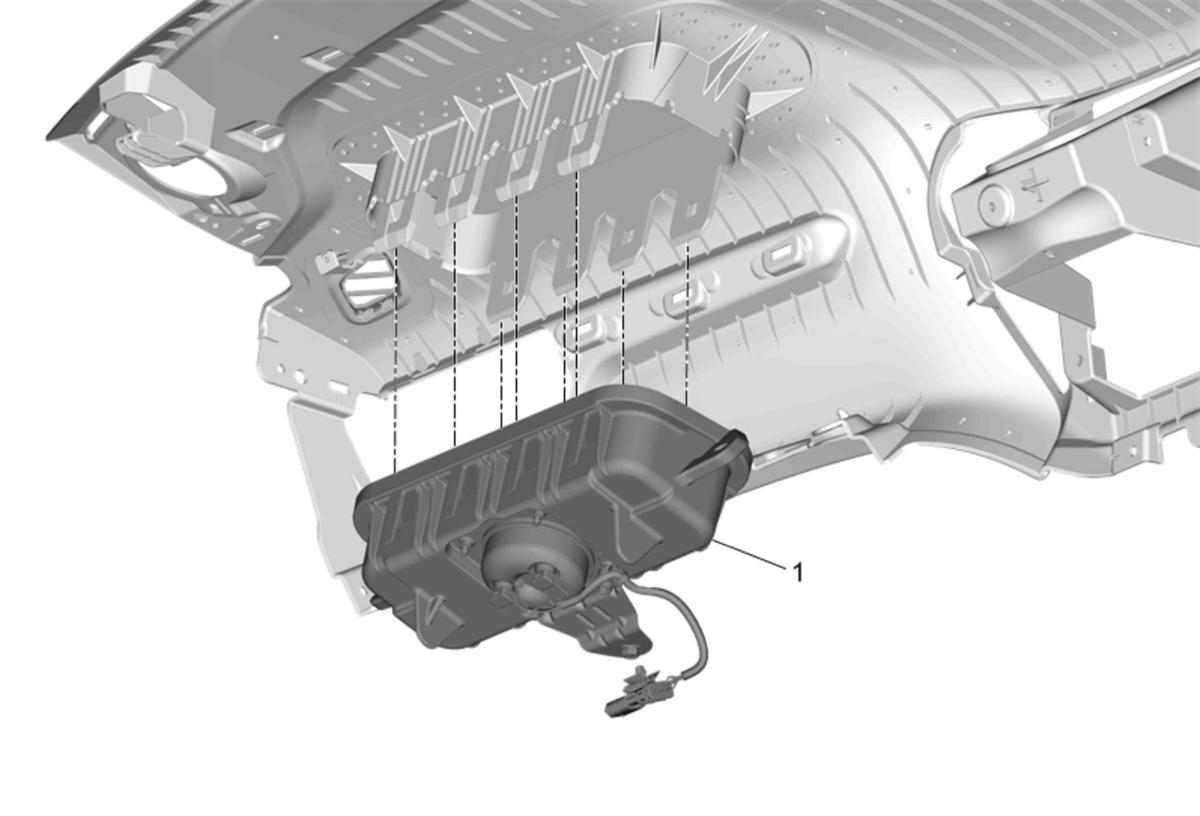

Fig 1: Instrument Panel Airbag

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB)
1	Instrument Panel Airbag Procedure Inflatable Restraint Module Handling and Scrapping Use a screwdriver or equivalent at one side of the housing to release tabs. Release all tabs simultaneously to release the PAB housing from IP chute. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. SIR Disabling and Enabling
Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB)

Instrument Panel Airbag

Procedure

Inflatable Restraint Module Handling and Scrapping
Use a screwdriver or equivalent at one side of the housing to release tabs. Release all tabs simultaneously to release the PAB housing from IP chute.
Enable the SIR System. SIR Disabling and Enabling
