Front Seat Belt Anchor Plate Tensioner Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

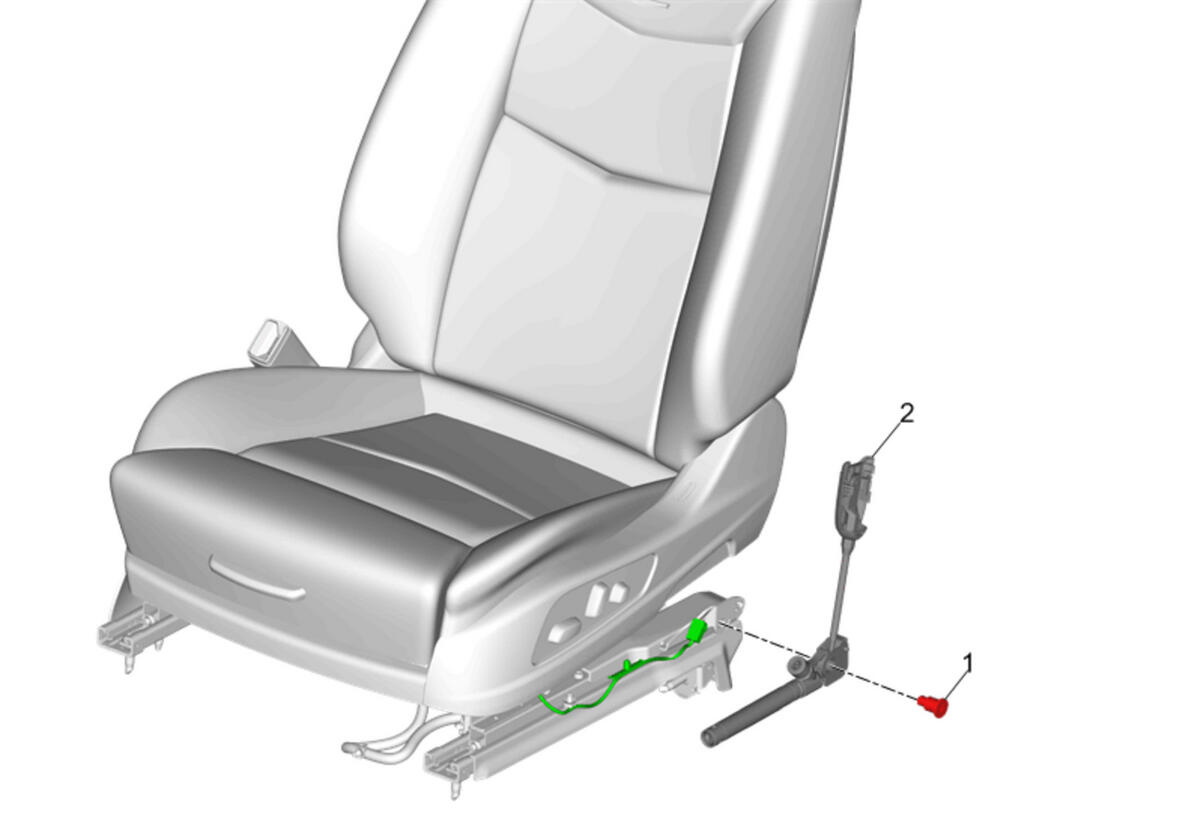

Fig 1: Front Seat Belt Anchor Plate Tensioner

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Driver or Passenger Seat Adjuster Finish Cover Replacement Remove the driver or passenger seat belt anchor plate tensioner cover and fastener. Front Seat Belt Retractor Replacement
1	Front Seat Belt Tensioner Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Anchor Plate Tensioner Procedure Disconnect the electrical connector. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

Preliminary Procedures

Disable the SIR system. SIR Disabling and Enabling
Driver or Passenger Seat Adjuster Finish Cover Replacement
Remove the driver or passenger seat belt anchor plate tensioner cover and fastener. Front Seat Belt Retractor Replacement

Front Seat Belt Tensioner Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)

Front Seat Belt Anchor Plate Tensioner

Procedure

Disconnect the electrical connector.
Enable the SIR System. SIR Disabling and Enabling
