Rear Side Door Accessory Switch Mount Plate Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

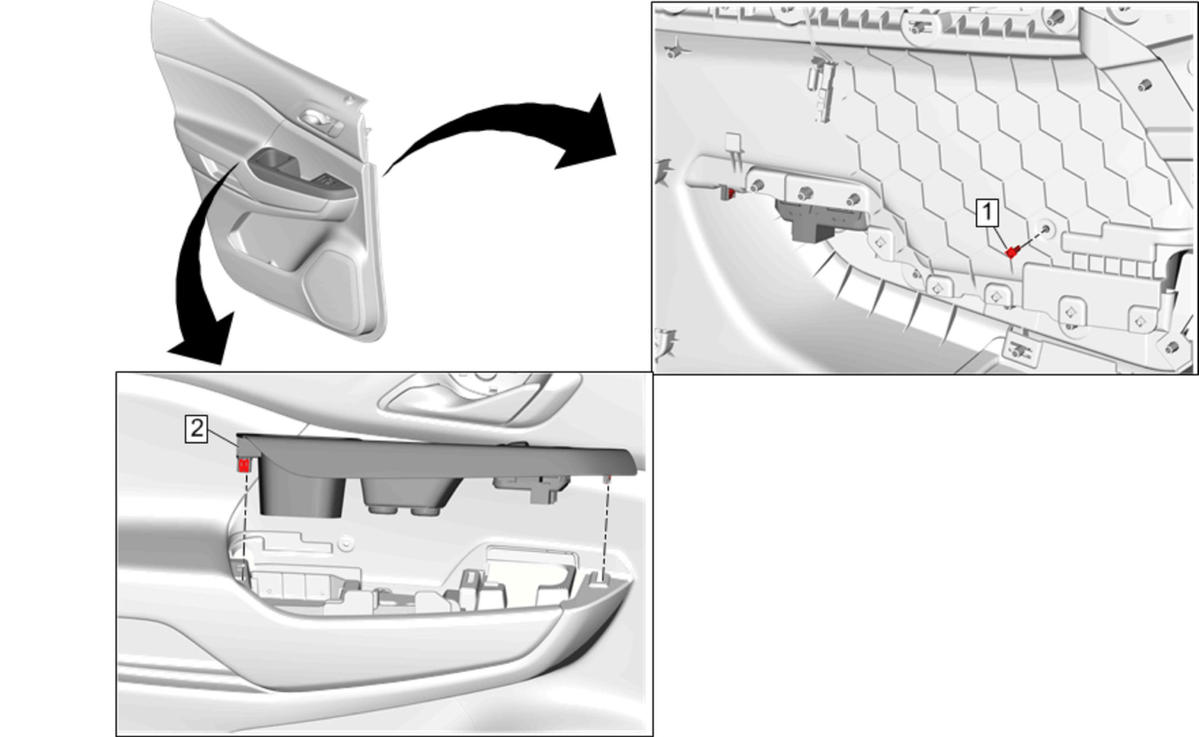

Fig 1: Rear Side Door Accessory Switch Mount Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Side Door Trim Replacement
1	Rear Side Door Trim Retainer Bolt CAUTION: Refer to Fastener Caution . NOTE: Bolt is located on the backside of the door trim panel. Tighten 2.5 N.m (22 lb in)
2	Rear Side Door Accessory Switch Mount Plate Procedure Using a flat-bladed plastic trim tool, start at the front of the accessory switch mount plate and gently insert trim tool to lift the rear side door accessory switch mount plate from the door trim assembly. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure
Rear Side Door Trim Replacement

Rear Side Door Trim Retainer Bolt

CAUTION:

Refer to Fastener Caution .

NOTE:

Bolt is located on the backside of the door trim panel.

Tighten
2.5 N.m (22 lb in)

Rear Side Door Accessory Switch Mount Plate

Procedure

Using a flat-bladed plastic trim tool, start at the front of the accessory switch mount plate and gently insert trim tool to lift the rear side door accessory switch mount plate from the door trim assembly.
Transfer parts as necessary.
