Quarter Trim Panel Cup Holder Replacement - Right Side
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

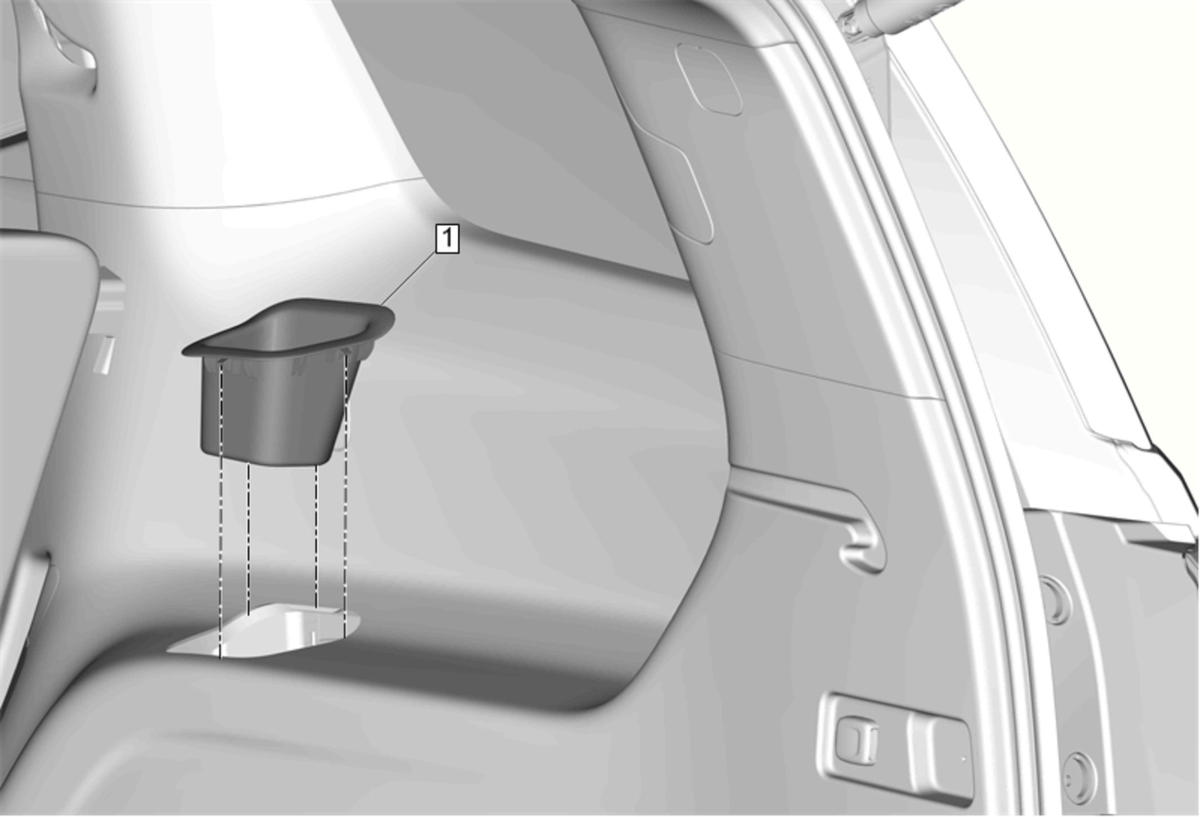

| Callout |
Component Name |
| 1 |
Quarter Trim Panel Cup Holder - Right Side
Procedure
Use a flat-bladed trim tool to aid in the removal of the quarter trim panel cup holder from the quarter lower rear trim panel right side. |
