Front Side Door Accessory Switch Mount Plate Replacement - Passenger Side

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

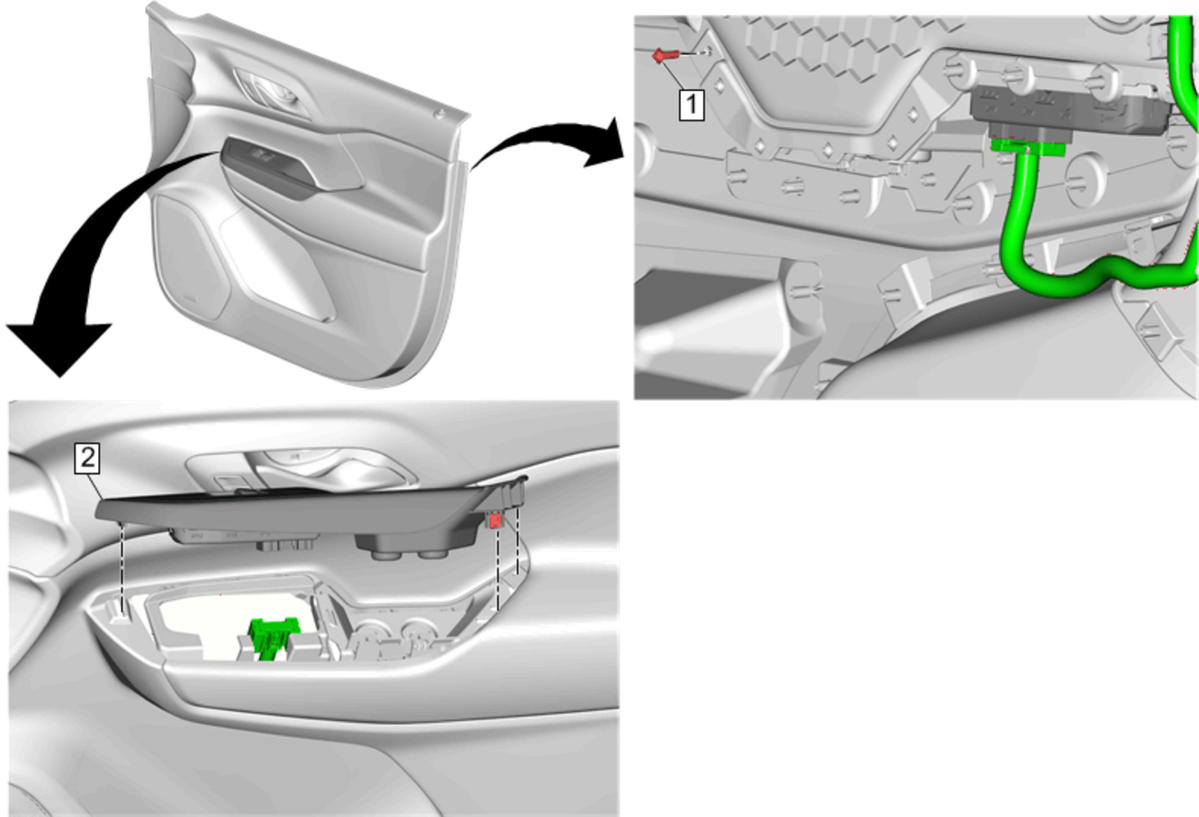

Fig 1: Front Side Door Accessory Switch Mount Plate - Passenger Side
GM4406778Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement
1 Front Side Door Trim Retainer Bolt
CAUTION:

Refer to Fastener Caution .

NOTE:

Bolt is located on the backside of the door trim panel.


Tighten
2.5 N.m (22 lb in)
2 Front Side Door Accessory Switch Mount Plate - Passenger Side

Procedure

  1. Using a flat-bladed plastic trim tool, start at the front of the accessory switch mount plate and gently insert trim tool to lift the front side door accessory switch mount plate from the door trim assembly.
  2. Disconnect the electrical connector.
  3. Transfer parts as necessary.
