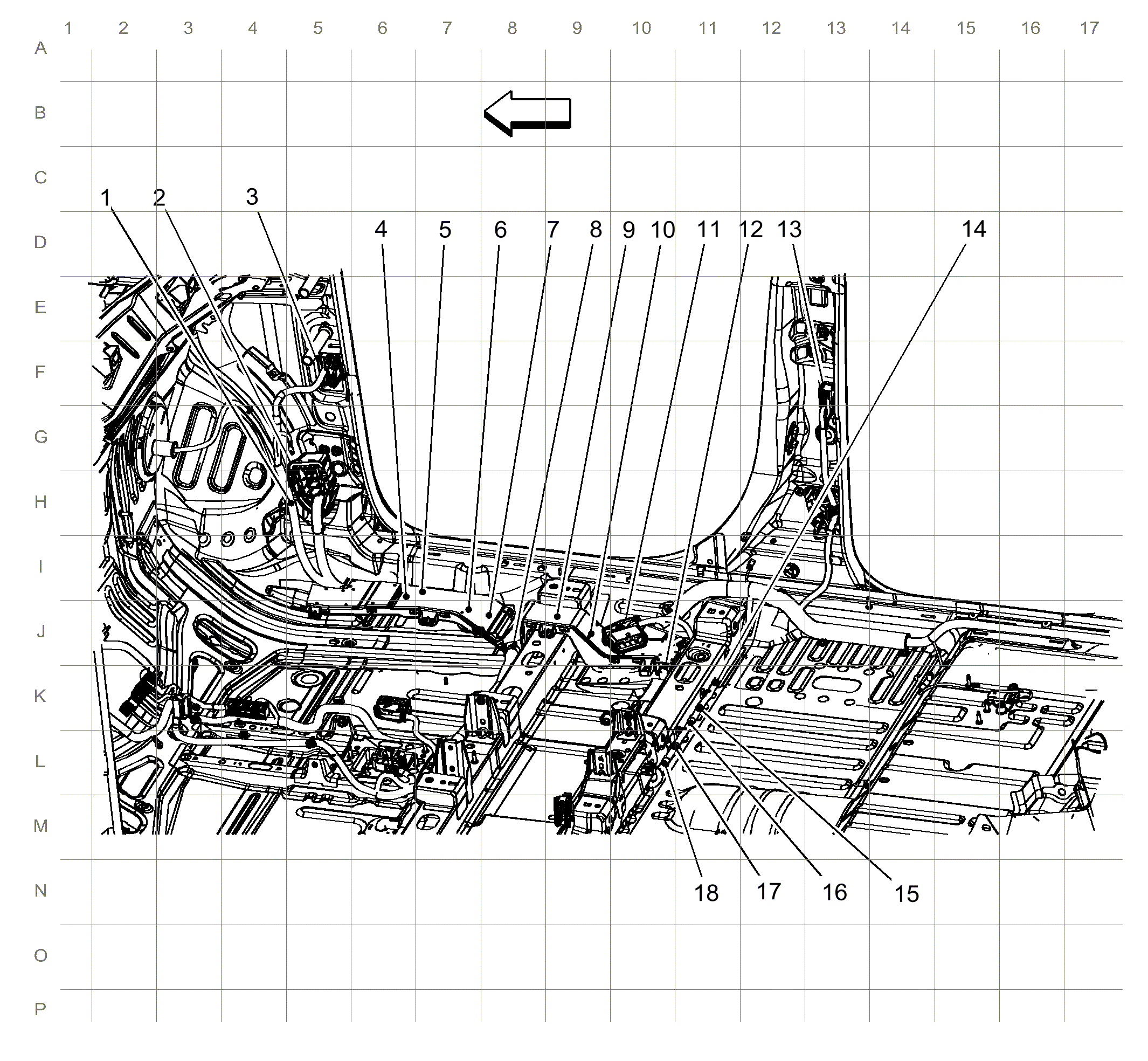

Body Harness Routing - Right Front of Passenger Compartment
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: J239 |
| 2: X201 X201 Instrument Panel Harness to Body Harness |
| 3: X600 X600 Passenger Door Harness to Body Harness |
| 4: J318 |
| 5: J319 |
| 6: J320 |
| 7: J322 (UQA) |
| 8: J326 (UQF) |
| 9: J327 |
| 10: J330 |
| 11: X320 X320 Passenger Seat Harness to Body Harness |
| 12: J337 (KA6) |
| 13: X800 X800 Right Rear Door Harness to Body Harness |
| 14: J339 |
| 15: J340 |
| 16: J341 |
| 17: J342 |
| 18: J343 |
