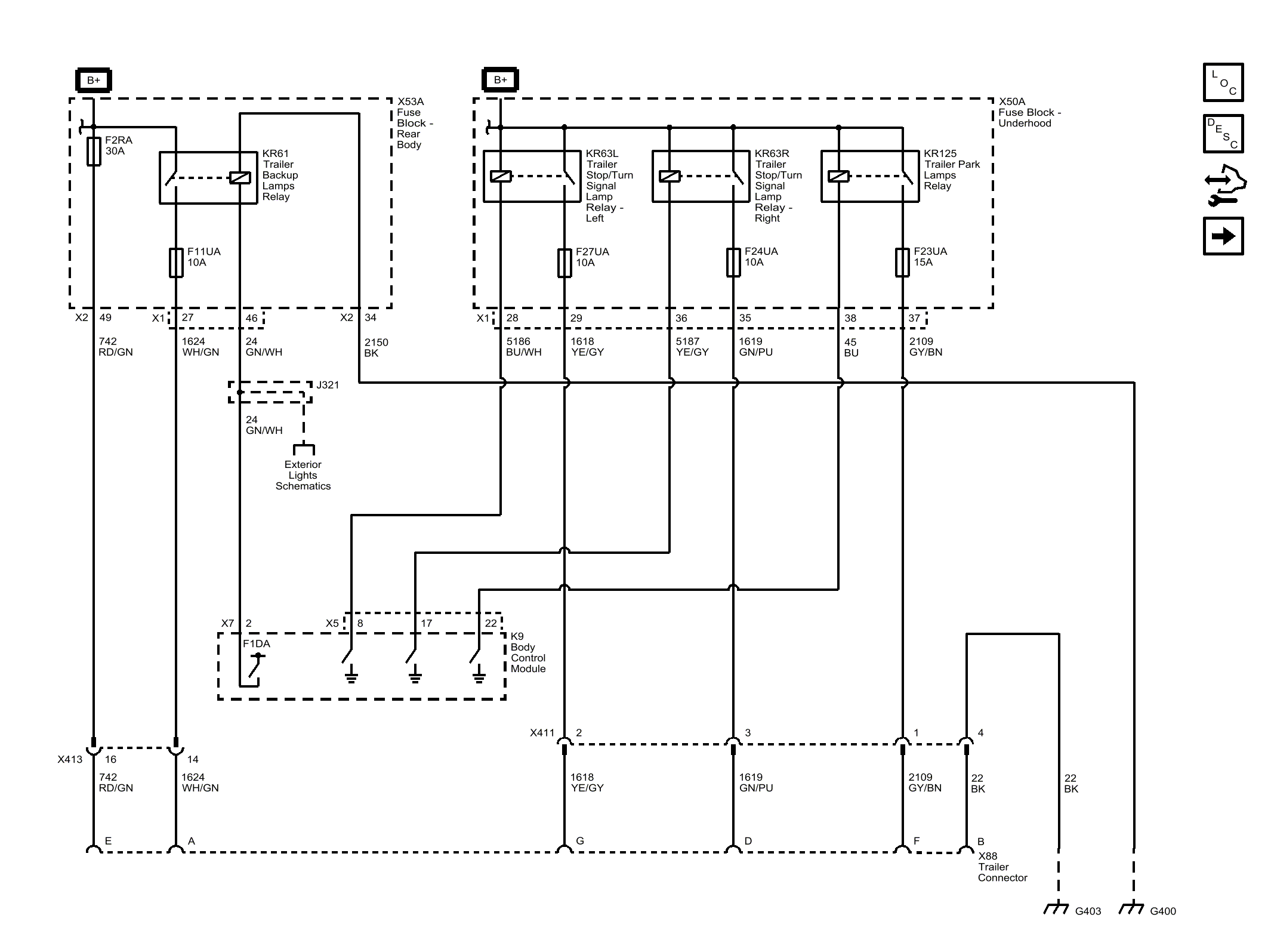

7-Pin Trailer Connector - Pins A, B, D-G (V92)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 742 | Battery Positive Voltage |
| 742_RD/GN | 742 RD/GN |
| 1618 | Left Rear Trailer Stop/Turn Lamp Control |
| 1618_YE/GY | 1618 YE/GY |
| 24 | Backup Lamp Control |
| 24_GN/WH | 24 GN/WH |
| 5187_YE/GY | 5187 YE/GY |
| 1619 | Right Rear Trailer Stop/Turn Lamp Control |
| 1619_GN/PU | 1619 GN/PU |
| 2109_GY/BN | 2109 GY/BN |
| 1618_YE/GY | 1618 YE/GY |
| 742_RD/GN | 742 RD/GN |
| 1624_WH/GN | 1624 WH/GN |
| 1619_GN/PU | 1619 GN/PU |
| 22_BK | 22 BK |
| 2109_GY/BN | 2109 GY/BN |
| CAV_29 | 29 |
| CAV_28 | 28 |
| CONN_X1 | X1 |
| CAV_27 | 27 |
| CAV_36 | 36 |
| CONN_X1 | X1 |
| CAV_35 | 35 |
| CAV_37 | 37 |
| CAV_38 | 38 |
| CAV_E | E |
| CAV_G | G |
| CAV_D | D |
| CAV_B | B |
| 22 | Trailer Ground |
| 2109 | Trailer Park Lamp Control |
| CAV_F | F |
| 2150 | Ground |
| 45_BU | 45 BU |
| CAV_22 | 22 |
| CAV_8 | 8 |
| CONN_X5 | X5 |
| CAV_2 | 2 |
| CONN_X7 | X7 |
| 5186 | Left Trailer Turn Signal Lamp Control |
| 5186_BU/WH | 5186 BU/WH |
| 5187 | Right Trailer Turn Signal Lamp Control |
| 45 | Park Lamp Relay Control |
| CAV_17 | 17 |
| 24_GN/WH | 24 GN/WH |
| CAV_46 | 46 |
| 1624 | Trailer Backup Lamp Control |
| 1624_WH/GN | 1624 WH/GN |
| CAV_A | A |
| CAV_49 | 49 |
| CONN_X2 | X2 |
| 22_BK | 22 BK |
| 2150_BK | 2150 BK |
| CAV_34 | 34 |
| CONN_X2 | X2 |
| X413 | X413 |
| CAV_16 | 16 |
| CAV_14 | 14 |
| X411 | X411 |
| CAV_2 | 2 |
| CAV_3 | 3 |
| CAV_1 | 1 |
| CAV_4 | 4 |
| G400 | G400 |
| F27UA | F27UA 10A |
| F11UA | F11UA 10A |
| F24UA | F24UA 10A |
| F23UA | F23UA 15A |
| F1DA | F1DA |
| F2RA | F2RA 30A |
| J321 | J321 |
| G403 | G403 |
| X413 | X413 |
| X411 | X411 |
| K9 | K9 Body Control Module |
| X50A | X50A Fuse Block - Underhood |
| Exterior_Lights_Schematics_REF | Exterior Lights Schematics |
| KR63L | KR63L Trailer Stop/Turn Signal Lamp Relay - Left |
| KR61 | KR61 Trailer Backup Lamp Relay |
| KR63R | KR63R Trailer Stop/Turn Signal Lamp Relay - Right |
| KR125 | KR125 Trailer Park Lamps Relay |
| X88 | X88 Trailer Connector (V92) |
| X53A | X53A Fuse Block - Rear Body |
