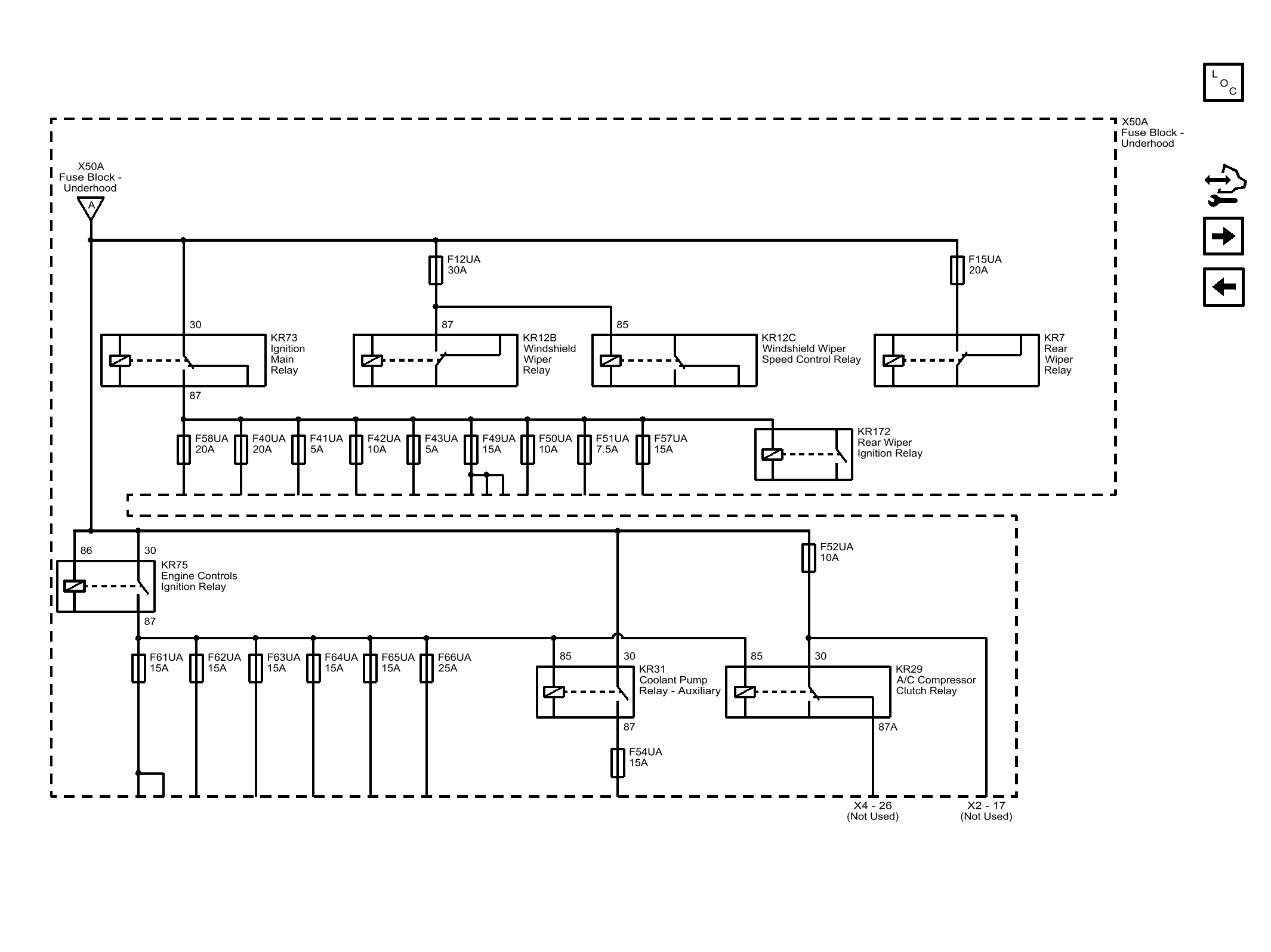

B+ Bus (2 of 2)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| CAV_30 | 30 |
| CAV_87 | 87 |
| CAV_85 | 85 |
| CAV_30 | 30 |
| CAV_30 | 30 |
| CAV_87 | 87 |
| CAV_86 | 86 |
| CAV_87A | 87A |
| CAV_30 | 30 |
| CAV_85 | 85 |
| CAV_85 | 85 |
| CAV_87 | 87 |
| CAV_87 | 87 |
| A_REF | A |
| F58UA | F58UA 20A |
| F43UA | F43UA 5A |
| F52UA | F52UA 10A |
| F66UA | F66UA 25A |
| F65UA | F65UA 15A |
| F64UA | F64UA 15A |
| F63UA | F63UA 15A |
| F62UA | F62UA 15A |
| F61UA | F61UA 15A |
| F57UA | F57UA 15A |
| F51UA | F51UA 7.5A |
| F41UA | F41UA 5A |
| F42UA | F42UA 10A |
| F49UA | F49UA 15A |
| F50UA | F50UA 10A |
| F54UA | F54UA 15A |
| F40UA | F40UA 20A |
| F12UA | F12UA 30A |
| F15UA | F15UA 20A |
| X50A | X50A Fuse Block - Underhood |
| KR75 | KR75 Engine Controls Ignition Relay |
| KR73 | KR73 Ignition Main Relay |
| KR31 | KR31 Coolant Pump Relay - Auxiliary |
| KR29 | KR29 A/C Compressor Clutch Relay |
| KR12B | KR12B Windshield Wiper Relay |
| KR12C | KR12C Windshield Wiper Speed Control Relay |
| X50A | X50A Fuse Block - Underhood |
| KR7 | KR7 Rear Wiper Relay |
| KR172 | KR172 Rear Wiper Ignition Relay |
