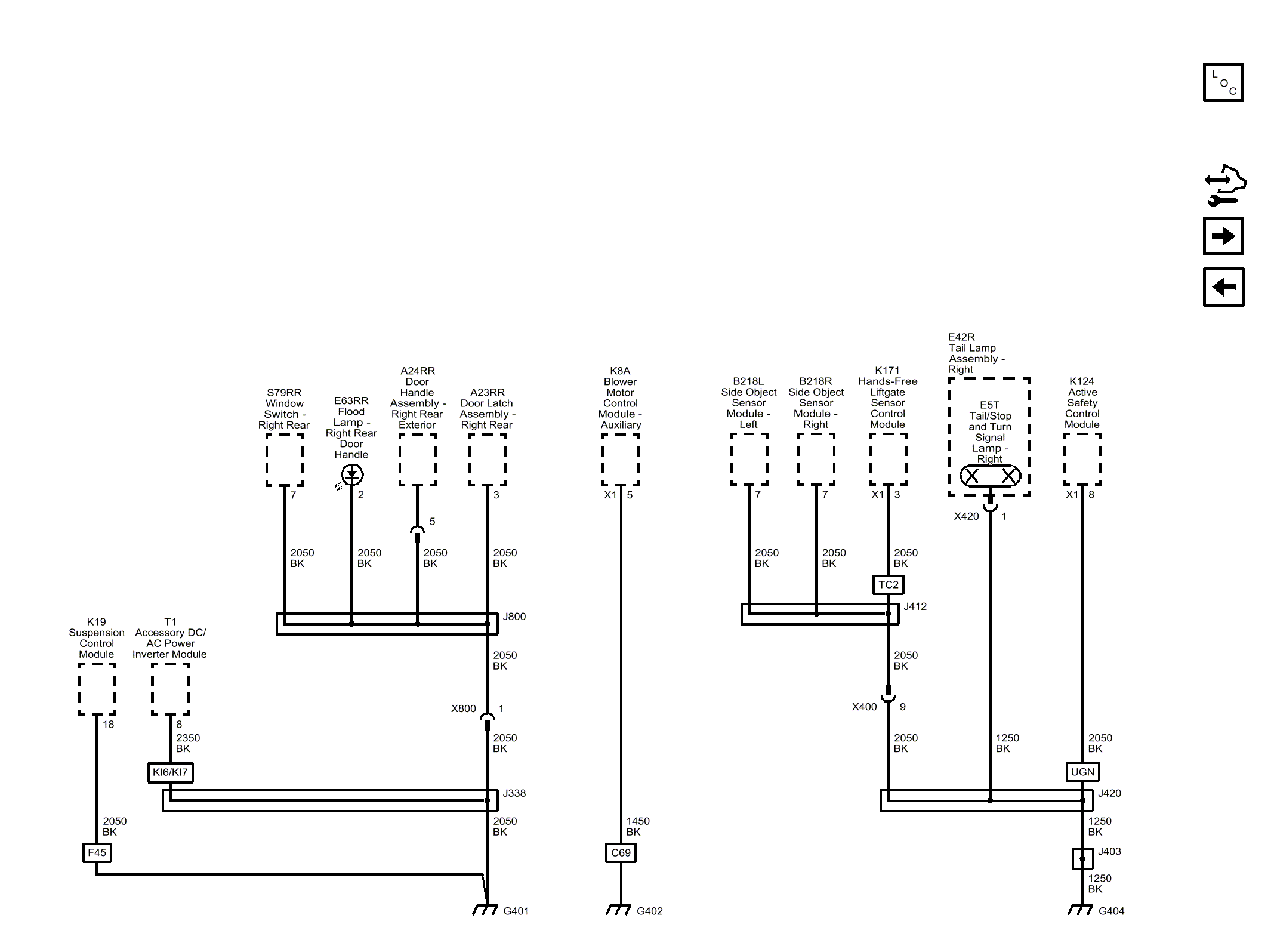

G401, G402, and G404
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 2350_BK | 2350 BK |
| CAV_8 | 8 |
| 2350 | Ground |
| 2050_BK | 2050 BK |
| 2050_BK | 2050 BK |
| CAV_18 | 18 |
| 2050 | Ground |
| 2050_BK | 2050 BK |
| CAV_3 | 3 |
| 2050_BK | 2050 BK |
| 2050_BK | 2050 BK |
| CAV_5 | 5 |
| CAV_2 | 2 |
| 2050_BK | 2050 BK |
| F45 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| 2150 | Ground |
| CAV_1 | 1 |
| CAV_7 | 7 |
| 1450_BK | 1450 BK |
| 1450 | Ground |
| CAV_5 | 5 |
| CONN_X1 | X1 |
| 1250_BK | 1250 BK |
| CAV_8 | 8 |
| CONN_X1 | X1 |
| UGN | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| 2050_BK | 2050 BK |
| 1250 | Ground |
| 1250_BK | 1250 BK |
| CAV_7 | 7 |
| CAV_7 | 7 |
| 2050_BK | 2050 BK |
| 2050_BK | 2050 BK |
| 2050_BK | 2050 BK |
| TC2 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| CAV_1 | 1 |
| 2050_BK | 2050 BK |
| CAV_9 | 9 |
| 2050_BK | 2050 BK |
| C69 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| KI6 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX)) |
| KI7 | (Mid-East (MAM)) |
| 2050_BK | 2050 BK |
| 2050_BK | 2050 BK |
| CAV_3 | 3 |
| CONN_X1 | X1 |
| G401 | G401 |
| X800 | X800 |
| G402 | G402 |
| G404 | G404 |
| X420 | X420 |
| J412 | J412 |
| X400 | X400 |
| J403 | J403 |
| J800 | J800 |
| J338 | J338 |
| K19 | K19 Suspension Control Module (F45/F48) |
| T1 | T1 Accessory DC/AC Power Inverter Module |
| A23RR | A23RR Door Latch Assembly - Right Rear |
| S79RR | S79RR Window Switch - Right Rear (AEQ) |
| K8A | K8A Blower Motor Control Module - Auxiliary (C69) |
| K124 | K124 Active Safety Control Module (UGN) |
| B218L | B218L Side Object Sensor Module - Left (UKC) |
| B218R | B218R Side Object Sensor Module - Right (UKC) |
| K171 | K171 Hands-Free Liftgate Sensor Control Module (TC2) |
| E63RR | E63RR Flood Lamp - Right Rear Door Handle |
| A24RR | A24RR Door Handle Assembly - Right Rear Exterior (ATH/ATS) |
| E5T | E5T Tail/Stop and Turn Signal Lamp - Right |
| E42R | E42R Tail Lamp Assembly - Right |
