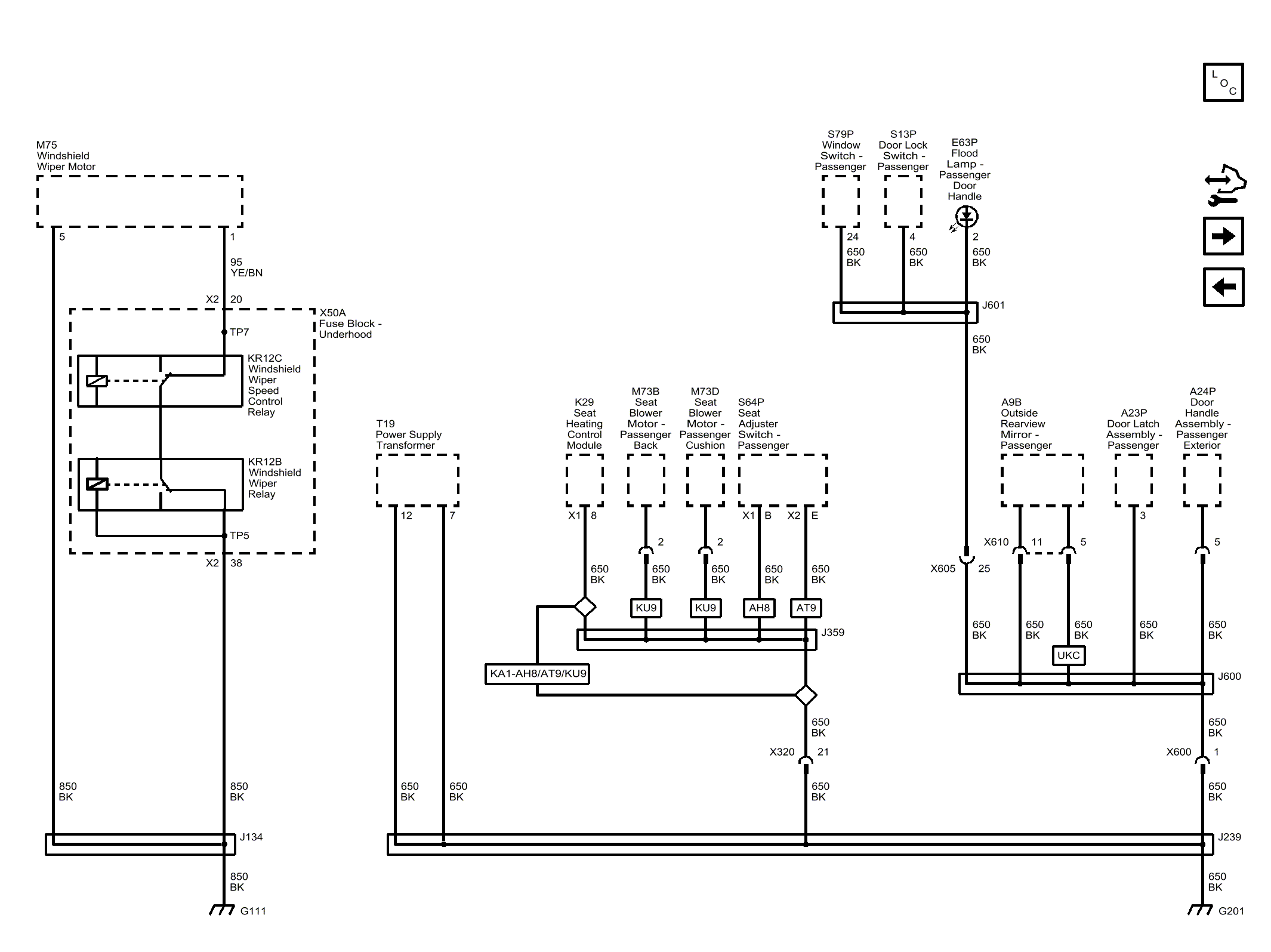

G111, and G201
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 850_BK | 850 BK |
| 850 | Ground |
| 850_BK | 850 BK |
| 850_BK | 850 BK |
| 650_BK | 650 BK |
| 650_BK | 650 BK |
| CAV_12 | 12 |
| 650_BK | 650 BK |
| 650 | Ground |
| 650_BK | 650 BK |
| CAV_7 | 7 |
| 95 | Windshield Wiper Motor Low Speed Control |
| 95_YE/BN | 95 YE/BN |
| CAV_1 | 1 |
| CAV_38 | 38 |
| CONN_X2 | X2 |
| CAV_TP5 | TP5 |
| CAV_TP7 | TP7 |
| CAV_5 | 5 |
| 650_BK | 650 BK |
| CAV_8 | 8 |
| CONN_X1 | X1 |
| 650_BK | 650 BK |
| 650_BK | 650 BK |
| CAV_2 | 2 |
| CAV_2 | 2 |
| KU9 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| KU9 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| CAV_20 | 20 |
| CONN_X2 | X2 |
| CAV_1 | 1 |
| 650_BK | 650 BK |
| CAV_3 | 3 |
| CAV_2 | 2 |
| CAV_5 | 5 |
| 650_BK | 650 BK |
| 650_BK | 650 BK |
| 650_BK | 650 BK |
| 650_BK | 650 BK |
| 650_BK | 650 BK |
| CAV_25 | 25 |
| 650_BK | 650 BK |
| 650_BK | 650 BK |
| CAV_4 | 4 |
| 650_BK | 650 BK |
| CAV_24 | 24 |
| 650_BK | 650 BK |
| UKC | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| 650_BK | 650 BK |
| CAV_B | B |
| CONN_X1 | X1 |
| 650_BK | 650 BK |
| CAV_E | E |
| CONN_X2 | X2 |
| AT9 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| 650_BK | 650 BK |
| AH8 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| 650_BK | 650 BK |
| CAV_21 | 21 |
| KA1 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| AH8 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| AT9 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| KU9 | (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Mid-East (MAM)) |
| X610 | X610 |
| CAV_11 | 11 |
| CAV_5 | 5 |
| G111 | G111 |
| J134 | J134 |
| G201 | G201 |
| J239 | J239 |
| X600 | X600 |
| X605 | X605 |
| J601 | J601 |
| J600 | J600 |
| X320 | X320 |
| J359 | J359 |
| X610 | X610 |
| KR12B | KR12B Windshield Wiper Relay |
| KR12C | KR12C Windshield Wiper Speed Control Relay |
| X50A | X50A Fuse Block - Underhood |
| M75 | M75 Windshield Wiper Motor |
| T19 | T19 Power Supply Transformer (KL9) |
| K29 | K29 Seat Heating Control Module (KA1) |
| M73B | M73B Seat Blower Motor - Passenger Back (KU9) |
| M73D | M73D Seat Blower Motor - Passenger Cushion (KU9) |
| A23P | A23P Door Latch Assembly - Passenger (AED) |
| A9B | A9B Outside Rearview Mirror - Passenger |
| S79P | S79P Window Switch - Passenger |
| S13P | S13P Door Lock Switch - Passenger |
| A24P | A24P Door Handle Assembly - Passenger Exterior (ATH/ATS) |
| S64P | S64P Seat Adjuster Switch - Passenger (AH8/AT9) |
| E63P | E63P Flood Lamp - Passenger Door Handle |
