Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: 3rd Row Seat Back Cover and Pad
    GM4381035Courtesy of GENERAL MOTORS COMPANY
  1. Remove 3rd Row Seat Back Cover and Pad (1, 2). Refer to 3rd Row Seat Back Cover and Pad Replacement
    2. Fig 2: Rear Seat Pull Strap Rivet and Cable
    GM4381040Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Eye Protection Warning .

  2. Remove Rear Seat Pull Strap Rivet (1)
  3. Disconnect the cable (2) from the recliner.

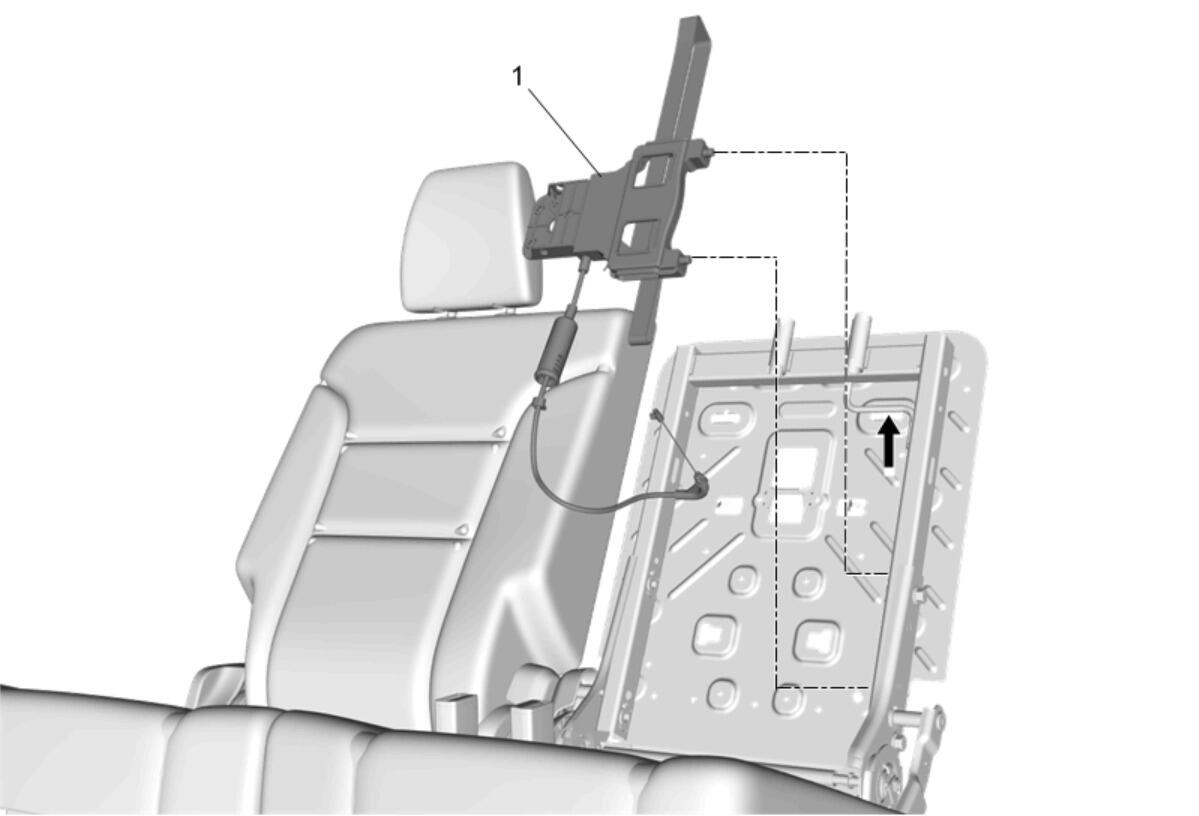

    4. Fig 3: Rear Seat Pull Strap
    GM4381041Courtesy of GENERAL MOTORS COMPANY
  4. Remove Rear Seat Pull Strap (1)
