Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Rear Seat
    GM4309862Courtesy of GENERAL MOTORS COMPANY
  1. Remove Rear Seat (3). Refer to Rear Seat Removal and Installation (40%) Rear Seat Removal and Installation (60%)
    2. Fig 2: Rear Seat Back Center Bar Front Finish Cover
    GM4316597Courtesy of GENERAL MOTORS COMPANY
  2. Rear Seat Back Center Bar Front Finish Cover (2). Refer to Rear Seat Back Center Bar Front Finish Cover Replacement (60%) Rear Seat Back Center Bar Front Finish Cover Replacement (40%)
    3. Fig 3: Rear Seat Outer Hinge Finish Covers, Caps, Fasteners and Cushion Frame Bolt
    GM4701963Courtesy of GENERAL MOTORS COMPANY
  3. Remove Rear Seat Outer Hinge Finish Cover Caps (1) (Qty: 2)
  4. Remove Rear Seat Outer Hinge Finish Cover Fasteners (2) (Qty: 3)
  5. Remove Rear Seat Outer Hinge Finish Cover - Front (3)
  6. Remove Rear Seat Outer Hinge Finish Cover - Outer (4)
  7. Remove Rear Seat Cushion Frame Bolt - Upper (5)
    8. Fig 4: Rear Seat Inner Hinge Finish Cover, Fasteners and Cushion Frame Bolt
    GM4701955Courtesy of GENERAL MOTORS COMPANY
  8. Remove Rear Seat Inner Hinge Finish Cover Fastener (1) (Qty: 2)
  9. Remove Rear Seat Inner Hinge Finish Cover - Outer (2)
  10. Remove Rear Seat Cushion Frame Bolt - Upper (3)

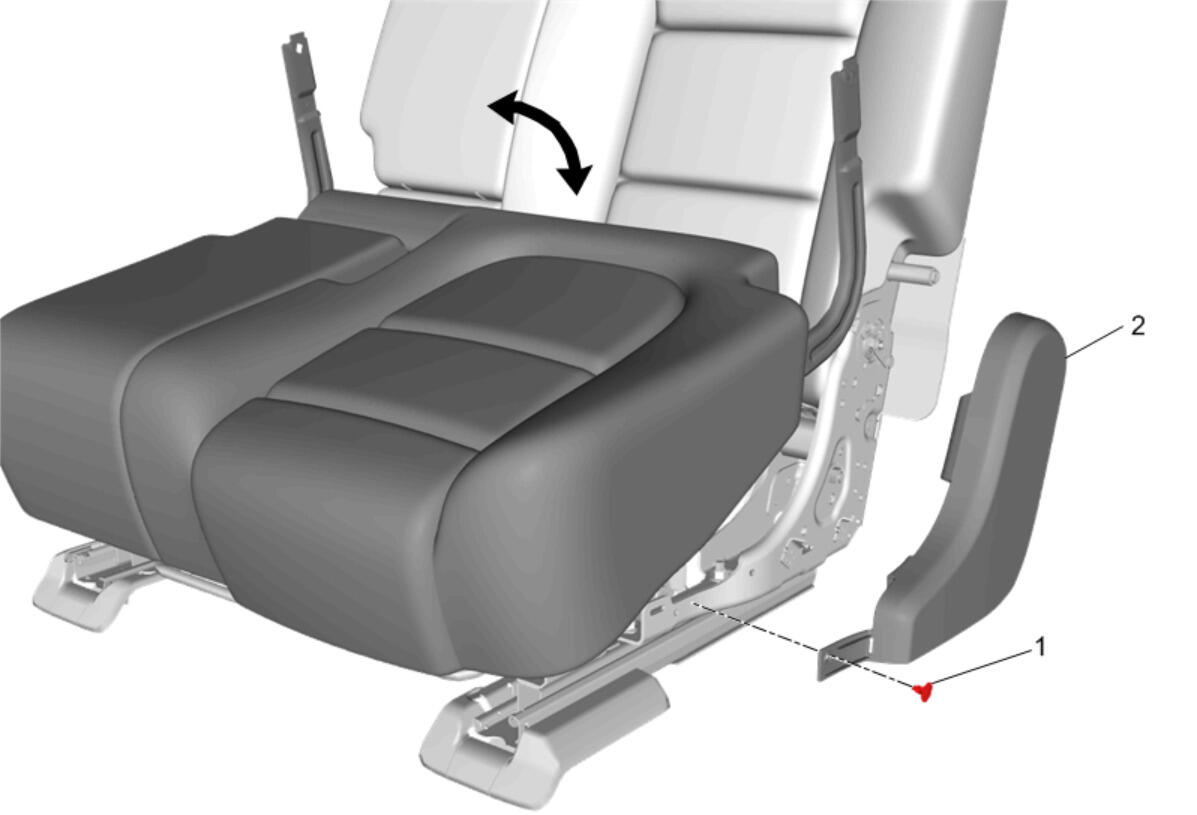

    11. Fig 5: Retainer and Rear Seat Outer Hinge Finish Cover - Inner
    GM4701966Courtesy of GENERAL MOTORS COMPANY
  11. Rotate the seat cushion upward.
  12. Remove Rear Seat Outer Hinge Finish Cover Retainer (1)
  13. Remove Rear Seat Outer Hinge Finish Cover - Inner (2)
