Rear Seat Inner Recliner Cable Replacement (Upper)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

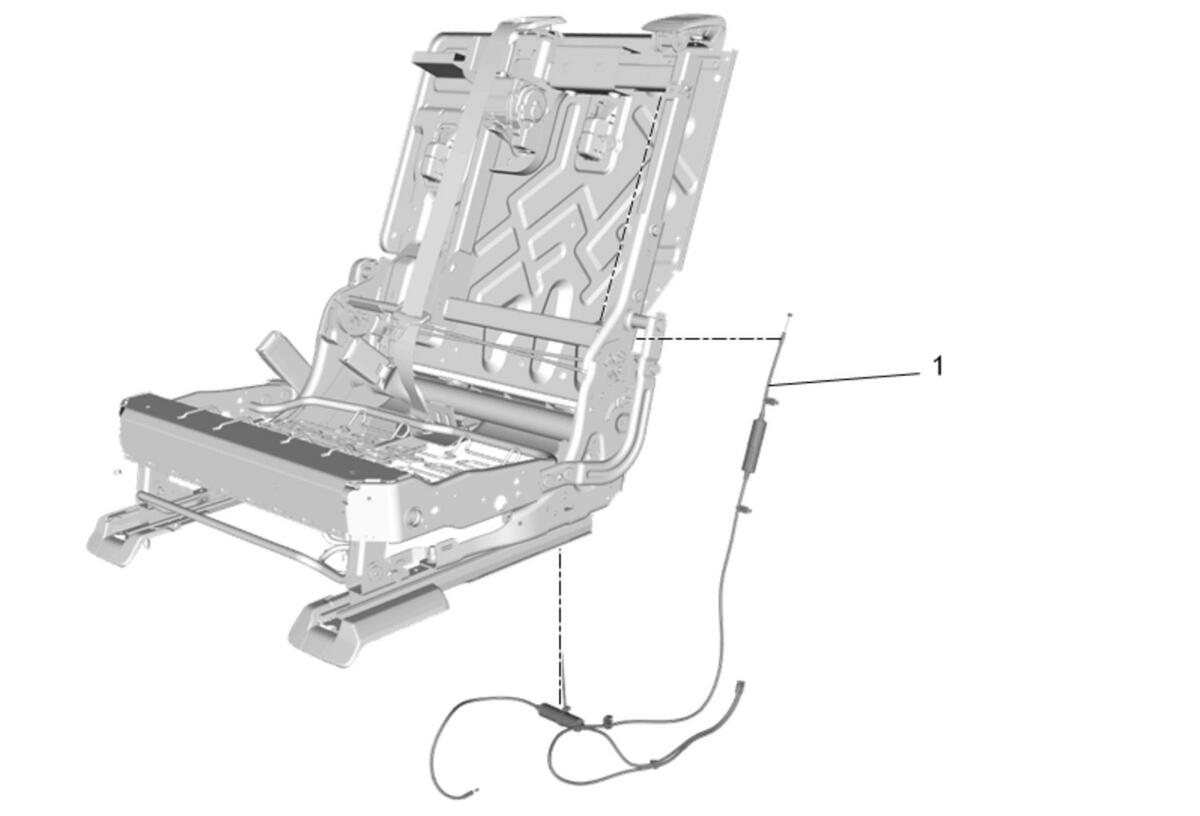

Fig 1: Rear Seat Inner Recliner Cable - Upper

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Seat Back Cushion Cover and Pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%) Rear Seat Back Cushion Cover and Pad Replacement (40%) Rear Seat Back Cushion Cover and Pad Replacement (Bucket)
1	Rear Seat Inner Recliner Cable Procedure Note the location and routing of the cable prior to removal to ensure proper installation. Release the retainers.

Callout

Component Name

Preliminary Procedure
Remove Rear Seat Back Cushion Cover and Pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%) Rear Seat Back Cushion Cover and Pad Replacement (40%) Rear Seat Back Cushion Cover and Pad Replacement (Bucket)

Rear Seat Inner Recliner Cable

Procedure

Note the location and routing of the cable prior to removal to ensure proper installation.
Release the retainers.
