Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

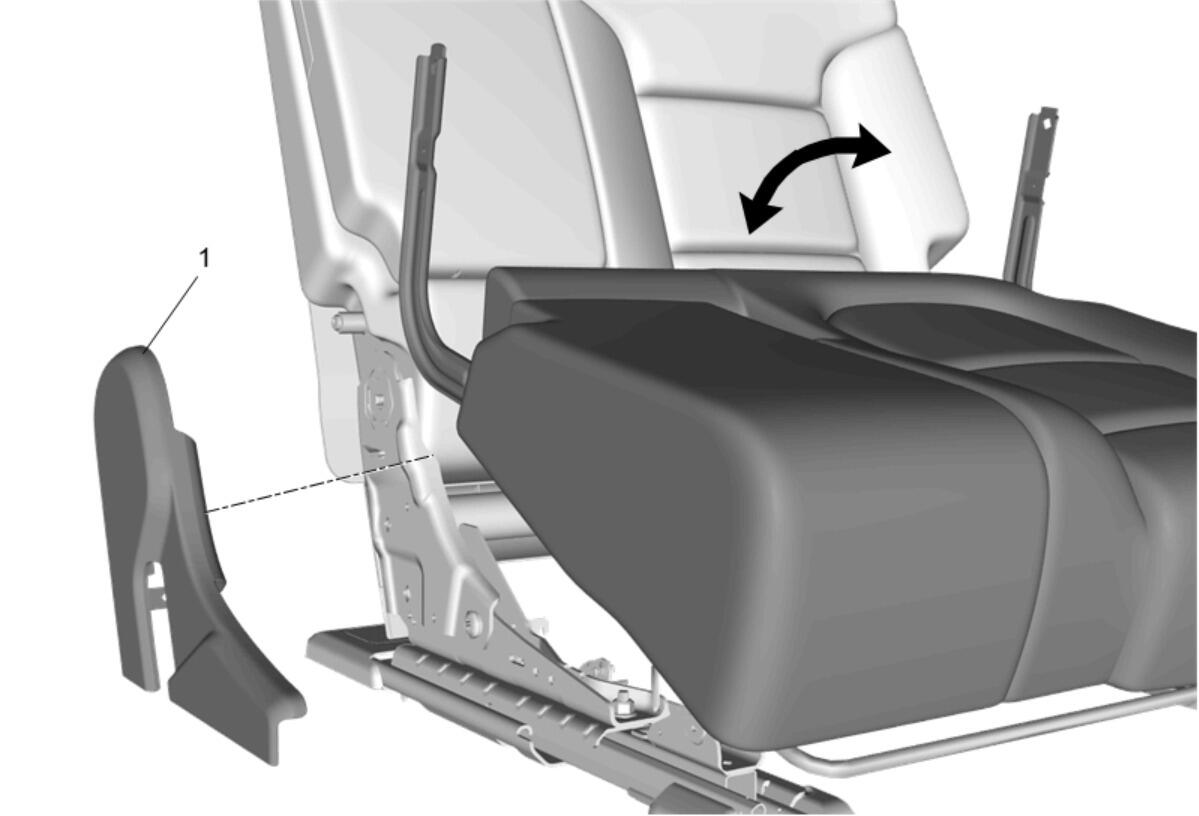

    Fig 1: Rear Seat Inner Hinge Finish Cover - Inner
    GM4701957Courtesy of GENERAL MOTORS COMPANY
  1. Install Rear Seat Inner Hinge Finish Cover - Inner (1)
  2. Rotate the seat cushion down.

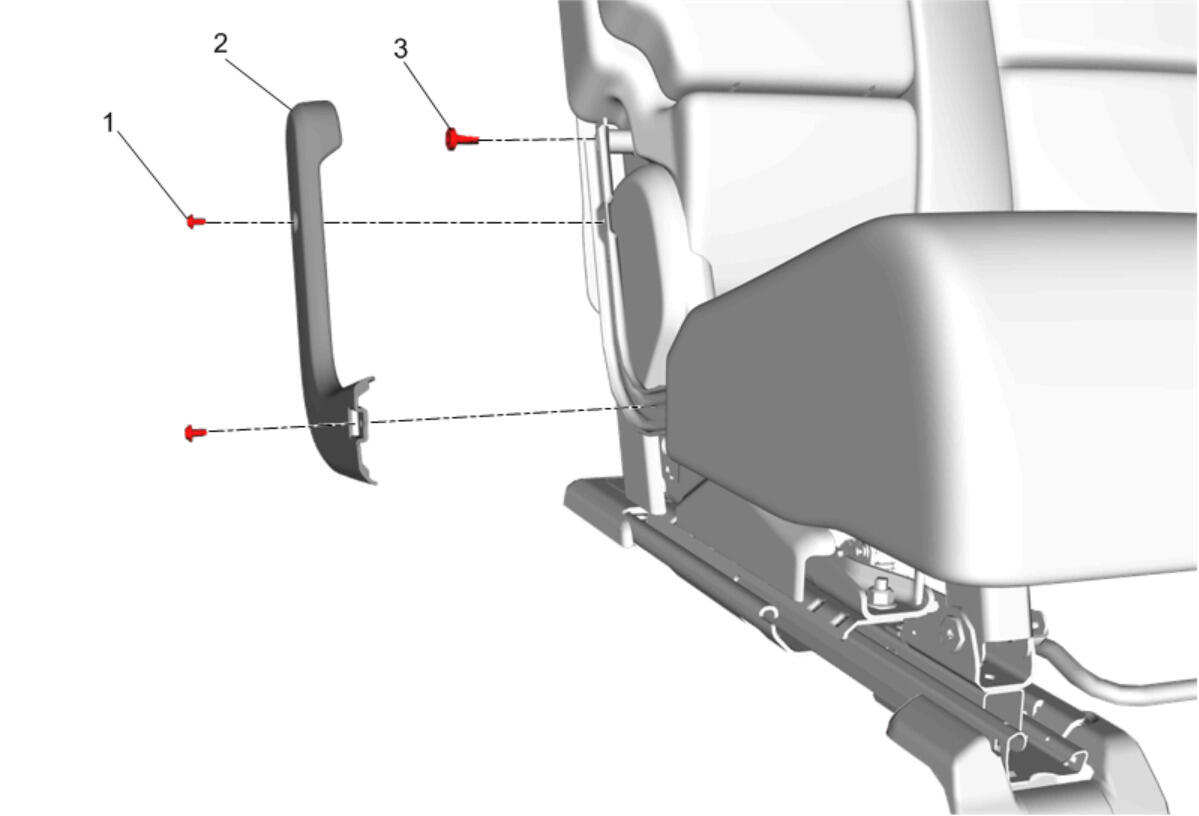

    3. Fig 2: Rear Seat Inner Hinge Finish Cover, Fasteners and Cushion Frame Bolt
    GM4701955Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install and tighten Rear Seat Cushion Frame Bolt - Upper (3) to 32.5 N.m (24 lb ft)
  4. Install Rear Seat Inner Hinge Finish Cover - Outer (2)
  5. Install and tighten Rear Seat Inner Hinge Finish Cover Fastener (1) (Qty: 2) to 2.5 N.m (22 lb in)

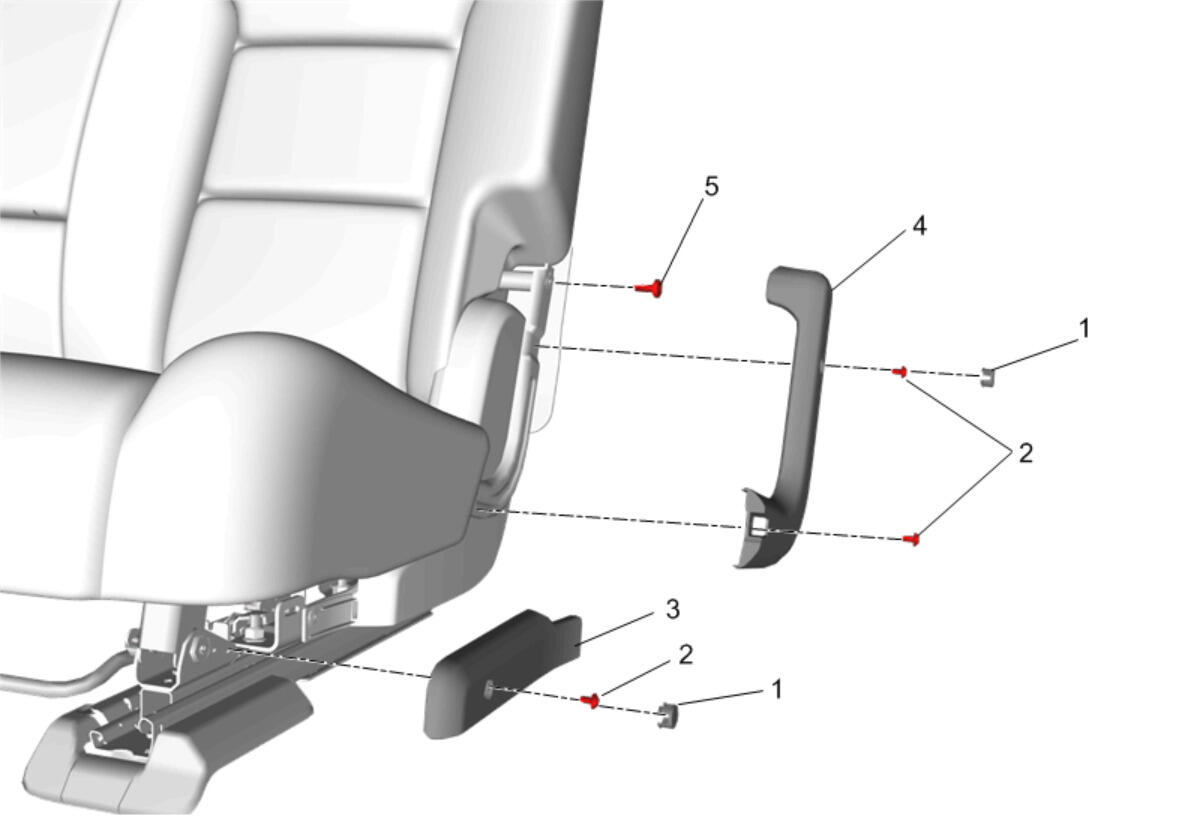

    6. Fig 3: Rear Seat Outer Hinge Finish Covers, Caps, Fasteners and Cushion Frame Bolt
    GM4701963Courtesy of GENERAL MOTORS COMPANY
  6. Install and tighten Rear Seat Cushion Frame Bolt - Upper (5) to 32.5 N.m (24 lb ft)
  7. Install Rear Seat Outer Hinge Finish Cover - Outer (4)
  8. Install Rear Seat Outer Hinge Finish Cover - Front (3)
  9. Install and tighten Rear Seat Outer Hinge Finish Cover Fastener (2) to 2.5 N.m (22 lb in)
  10. Install Rear Seat Outer Hinge Finish Cover Cap (1) (Qty: 2)
    11. Fig 4: Rear Seat Back Center Bar Front Finish Cover
    GM4316597Courtesy of GENERAL MOTORS COMPANY
  11. Rear Seat Back Center Bar Front Finish Cover (2). Refer to Rear Seat Back Center Bar Front Finish Cover Replacement (60%) Rear Seat Back Center Bar Front Finish Cover Replacement (40%)
    12. Fig 5: Rear Seat
    GM4309862Courtesy of GENERAL MOTORS COMPANY
  12. Install Rear Seat (3). Refer to Rear Seat Removal and Installation (40%) Rear Seat Removal and Installation (60%)
