Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Seat Cushion Bracket, Fasteners, Washers and Rear Seat Support

Courtesy of GENERAL MOTORS COMPANY

Install both rear seat supports (4) in the vehicle to set the cross-car width.
Install Rear Seat Cushion Bracket (3)
Install Rear Seat Cushion Bracket Washers (2) (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Install and tighten Rear Seat Cushion Bracket Fasteners (1) (Qty: 2) to 2.5 N.m (22 lb in)

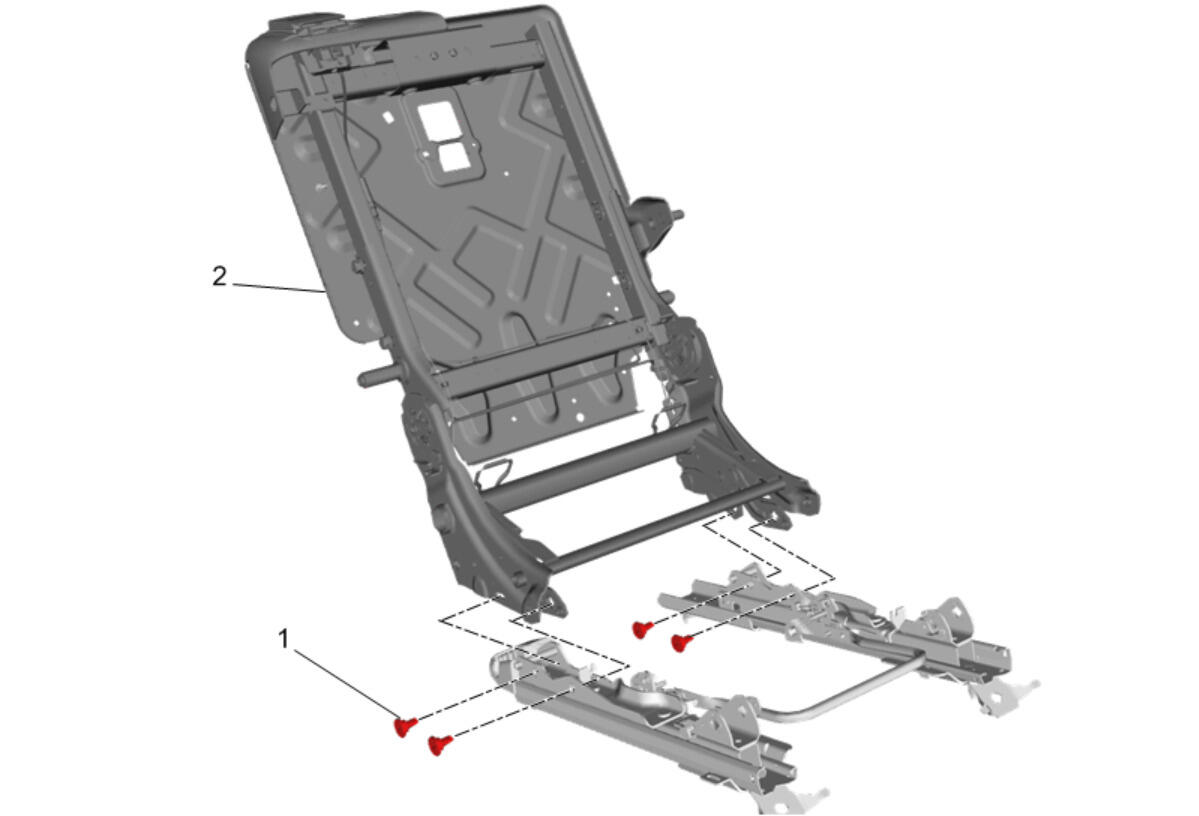

Fig 2: Rear Seat Back Frame and Bolts

Courtesy of GENERAL MOTORS COMPANY

Install Rear Seat Back Frame (2)
Install and tighten Rear Seat Back Frame Bolts (1) (Qty: 4) to 75 N.m (55 lb ft)

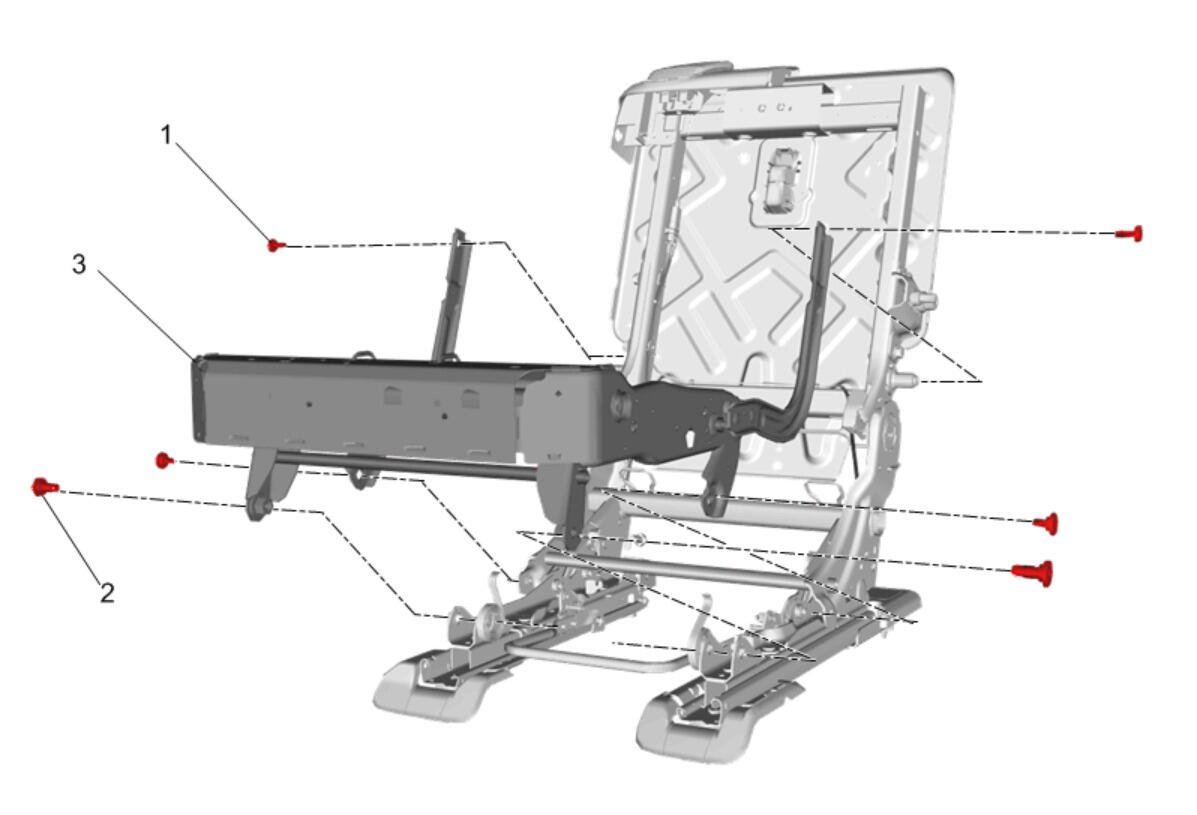

Fig 3: Rear Seat Cushion Frame and Bolts

Courtesy of GENERAL MOTORS COMPANY

Install Rear Seat Cushion Frame (3)
Install and tighten Rear Seat Cushion Frame Bolt - Front (2) (Qty: 4) to 32.5 N.m (24 lb ft)
Rear Seat Cushion Frame Bolt - Upper (1) (Qty: 2) to 32.5 N.m (24 lb ft)

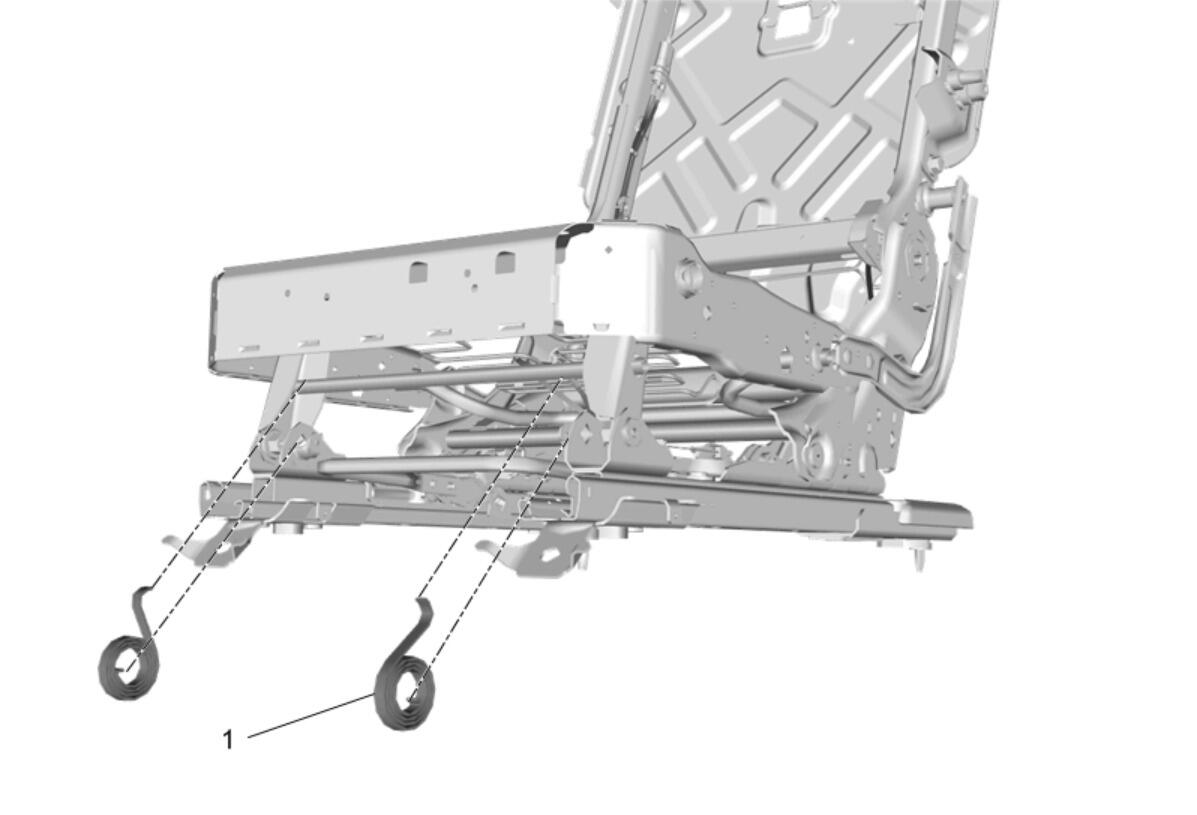

Fig 4: Rear Seat Back Lower Support Wires

Courtesy of GENERAL MOTORS COMPANY

Install Rear Seat Back Lower Support Wire (1) (Qty: 2)

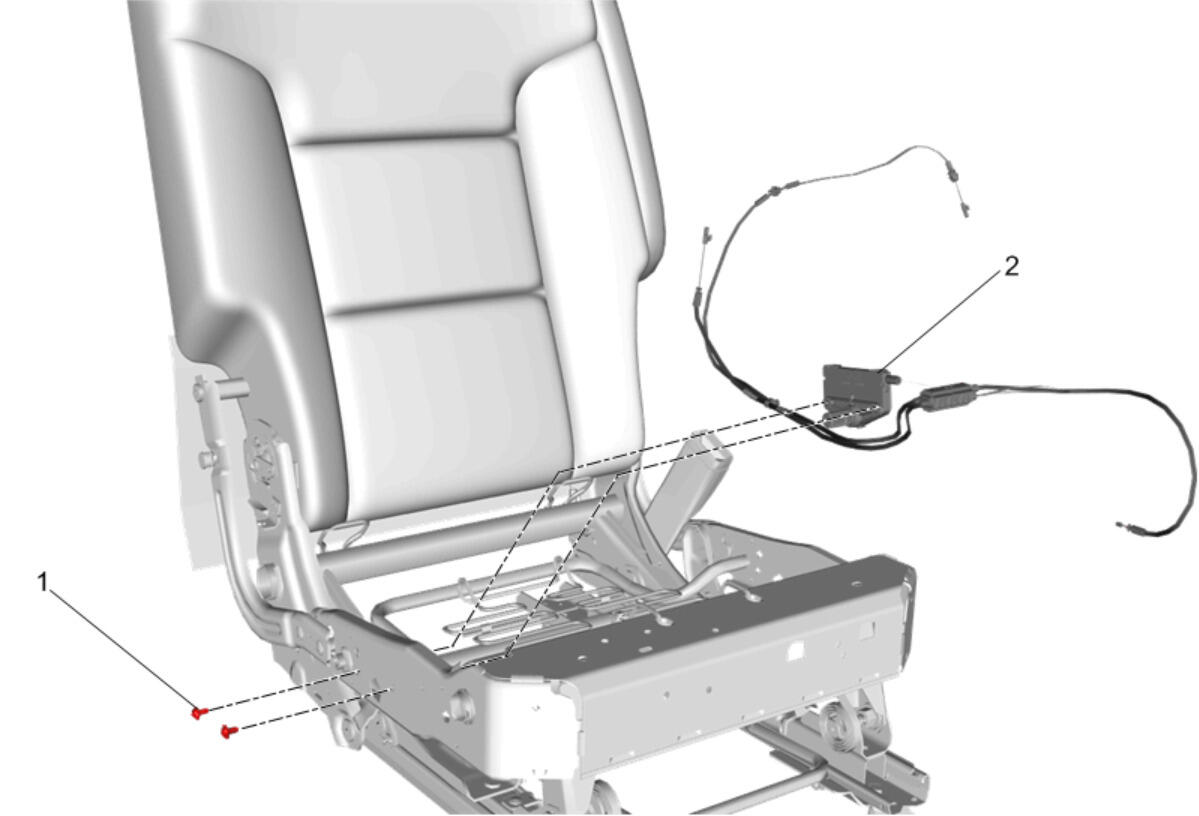

Fig 5: Rear Seat Inner Recliner Cable - Lower

Courtesy of GENERAL MOTORS COMPANY

Install Rear Seat Inner Recliner Cable - Lower (2). Refer to Rear Seat Inner Recliner Cable Replacement (Lower)

Fig 6: Rear Seat Back Cushion Cover and Pad

Courtesy of GENERAL MOTORS COMPANY

Install Rear Seat Back Cushion Cover and Pad (2). Refer to Rear Seat Back Cushion Cover and Pad Replacement (Bucket)

Fig 7: Rear Seat Cushion Cover and Pad

Courtesy of GENERAL MOTORS COMPANY

Install Rear Seat Cushion Cover and Pad (3). Refer to Rear Seat Cushion Cover and Pad Replacement (Bucket)
